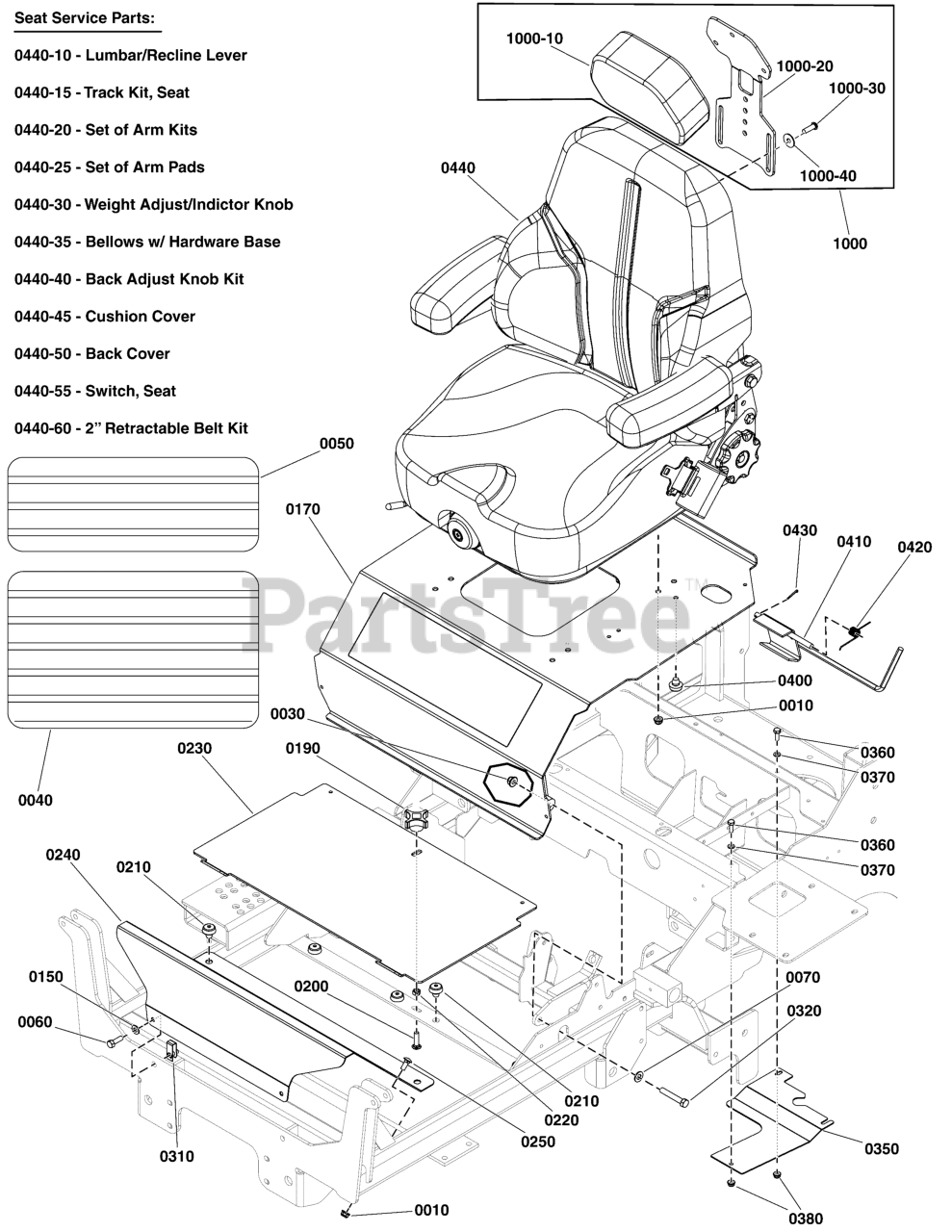

5901799 - Simplicity Cobalt LE 72" Zero-Turn Mower, 37hp Briggs & Stratton Seat Mount and Floor Group S/N: 4000875836 and Below Parts Diagram

Cobalt LE 72" Zero-Turn Mower, 37hp Briggs & Stratton

Seat Mount and Floor Group S/N: 4000875836 and Below Parts Diagram

  • Title

0010

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0030

Simplicity 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

0040

Simplicity 5101333YP

SAFETY WALK, FLOOR PLATE, S50X, 10X17.13

$37.99

$

Usually ships in 2-12 days

0

0050

Simplicity 5101374YP

SAFETY WALK

$18.99

$

In Stock, only 1 left!

0

0060

Simplicity 703585

CAPSCREW, Hex Head, 5/16-18 x 1

$4.99

$

In Stock, only 1 left!

0

0070

Simplicity 703590

WASHER, .406

$3.99

$

In Stock, Qty 10

0

0150

Simplicity 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, only 3 left!

0

0170

Simplicity 5601176

SEAT PLATE W/ DECALS - LMTD EDTN

$

$

Currently unavailable

0190

Simplicity 1670578SM

KNOB, Internal Thread, 5/16 (Used Only on 24 in. Models)

$13.99

$

In Stock, only 1 left!

0

0200

Simplicity 5025145X10YP

BOLT, 5/16-18 X 1-1/4, CARRIAGE, GD5, CZ

$3.49

$

Usually ships in 2-12 days

0

0210

Simplicity 197546GS

MOUNT, Vibration

$7.99

$

In Stock, only 2 left!

0

0220

Simplicity 761449MA

KIT, DISCHARGE CHUTE

$250.99

$

Usually ships in 2-12 days

0

0230

Simplicity 84003198

PLATE, Removable Floor

$100.99

$

Usually ships in 2-12 days

0

0240

Simplicity 84003199

PLATE, Floor

$128.99

$

Usually ships in 2-12 days

0

0250

Simplicity 5025145X6SM

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ

$3.99

$

In Stock, Qty 5

0

0310

Simplicity 5025452YP

BODY CLIP, 5/16-18 -1/4 MATERIAL

$5.49

$

In Stock, only 3 left!

0

0320

Simplicity 5025013X18SM

CAPSCREW, Hex Head, 3/8-16 X 1-3/4

$3.99

$

In Stock, only 1 left!

0

0350

Simplicity 84003200

SHIELD, Debris

$25.99

$

Usually ships in 2-12 days

0

0360

Simplicity 5025010X6SM

CAPSCREW, Hex Head, 1/4-20 x 3/4 (stiffener to top of cover)

$3.99

$

In Stock, Qty 20+

0

0370

Simplicity 5601176

SEAT PLATE W/ DECALS - LMTD EDTN

$

$

Currently unavailable

0380

Simplicity 703233

NUT, Serrated, Flange, 1/4-20, GR5

$4.49

$

In Stock, Qty 6

0

0400

Simplicity 84003201

SUPPORT, Rubber

$8.99

$

In Stock, only 3 left!

0

0410

Simplicity 84002142

WELD, SEAT LATCH HOOK - BLACK

$35.99

$

Usually ships in 2-12 days

0

0420

Simplicity 84003202

SPRING, Torsion

$2.49

$

Usually ships in 2-12 days

0

0430

Simplicity 703312

PIN, Cotter, 3/32 X 3/4

$3.99

$

In Stock, Qty 20+

0

0440

Simplicity 84001869

SEAT, HIGH BACK, SUSP, SWITCH&SEAT BELTS

$1168.99

$

Usually ships in 2-12 days

0

0440-10

Simplicity 84003205

LUMBAR/RECLINE/ISO LVR W/ RLL PIN BS

Note: (SV)

$37.99

$

Usually ships in 2-12 days

0

0440-15

Simplicity 84003206

4" SINGLE LOCKING TRACKS BASE

Note: (SV)

$152.99

$

Usually ships in 2-12 days

0

0440-20

Simplicity 84003207

SET OF ARM KITS

Note: (SV)

$283.99

$

Usually ships in 2-12 days

0

0440-25

Simplicity 84003208

SET OF ARM PADS

Note: (SV)

$131.99

$

Usually ships in 2-12 days

0

0440-30

Simplicity 84003209

KNOB, Adjuster

Note: (SV)

$78.99

$

Usually ships in 2-12 days

0

0440-35

Simplicity 84003210

BELLOWS W/ HARDWARE BASE

Note: (SV)

$93.99

$

Usually ships in 2-12 days

0

0440-40

Simplicity 84003211

KNOB, Adjuster

Note: (SV)

$38.99

$

Usually ships in 2-12 days

0

0440-45

Simplicity 84003212

CUSHION, Seat

Note: (SV)

$280.99

$

Usually ships in 2-12 days

0

0440-50

Simplicity 84003213

Cushion, Back

Note: (SV)

$311.99

$

Usually ships in 2-12 days

0

0440-55

Simplicity 7023354YP

SWITCH, Seat, Push Button (NC)

Note: (SV)

$12.99

$

In Stock, Qty 20+

0

0440-60

Simplicity 84003214

BELT, Seat

Note: (SV)

$140.99

$

Usually ships in 2-12 days

0

1000

Simplicity 84003643

KIT, Headrest

$161.99

$

Usually ships in 2-12 days

0

1000-10

CUSHION, Headrest

$

$

Not available

1000-20

BRACKET, Headrest Cushion

$

$

Not available

1000-30

Simplicity 84003203

SCREW, 5/16-18X1, BUT HD, BLK, W/PATCH

$2.99

$

Usually ships in 2-12 days

0

1000-40

Simplicity 84001871

WASHER, FENDER, 1.00 OD X .315 ID X .055

$2.49

$

Usually ships in 2-12 days

0
