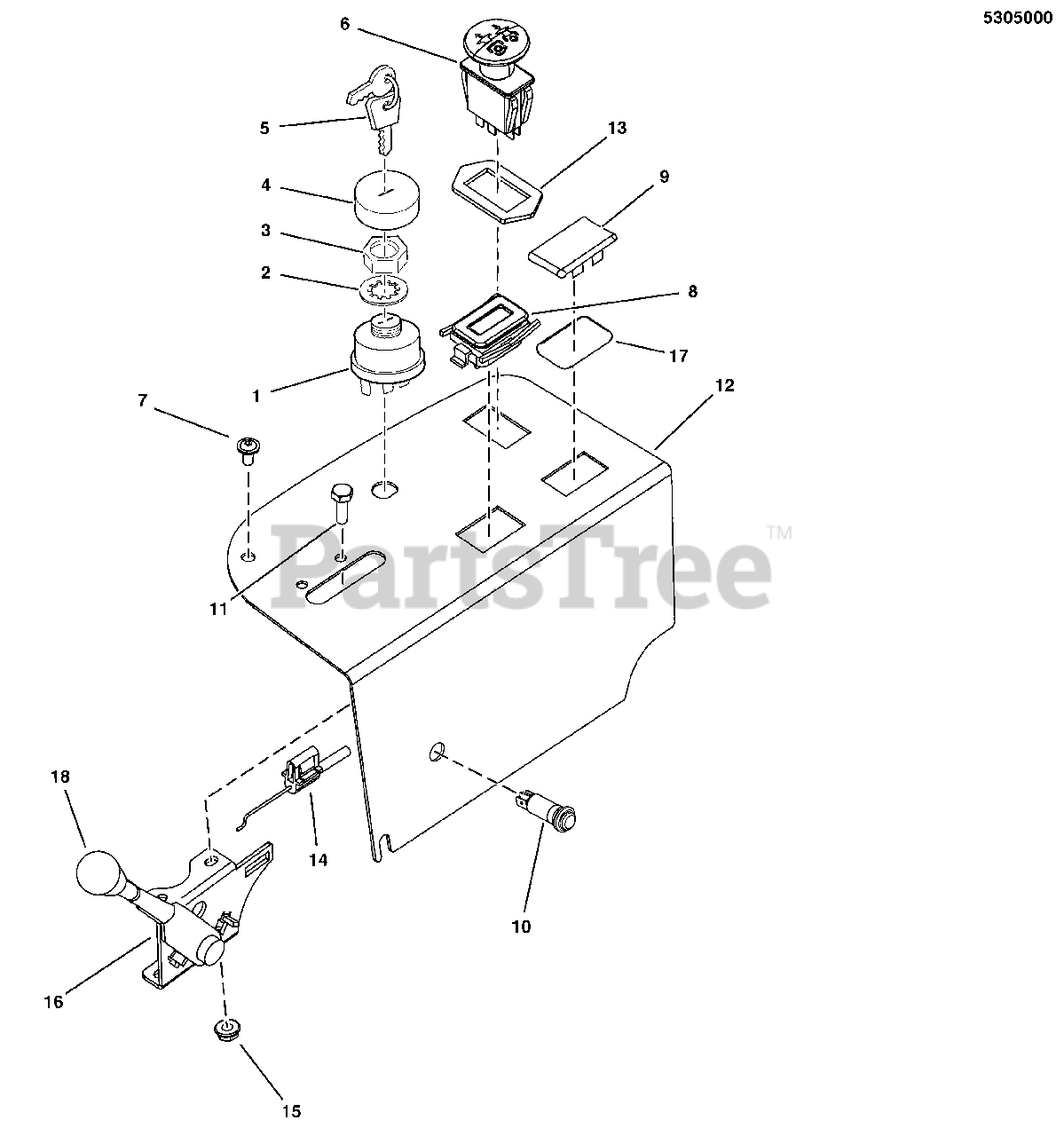

5901799 - Simplicity Cobalt LE 72" Zero-Turn Mower, 37hp Briggs & Stratton Instrument Control Panel Group Parts Diagram

Cobalt LE 72" Zero-Turn Mower, 37hp Briggs & Stratton

Instrument Control Panel Group Parts Diagram

  • Title

1

Simplicity 1737853YP

SWITCH ASSEMBLY, Ignition Indak No Keys/Hdwr

$35.99

$

In Stock, Qty 20+

0

2

Simplicity 1960547SM

LOCKWASHER, Internal Tooth, 5/8 Thin

$4.49

$

In Stock, only 4 left!

0

3

Simplicity 1717549SM

NUT, Hex Flange, 5/8-32 IGN SW DIE CAST
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

4

Simplicity 1717550SM

COVER, Ignition Switch
(Superseded to 847150)

$8.49

$

In Stock, Qty 16

0

5

Simplicity 1737836YP

KEYS, Ignition

$20.99

$

In Stock, only 1 left!

0

6

Simplicity 1722887SM

SWITCH, PTO, Push/Pull

$33.99

$

In Stock, Qty 20+

0

7

Simplicity 84002228

SCREW, Flange

$2.49

$

In Stock, Qty 18

0

8

HOUR METER, 2 CHANNEL

Note: (Refer to Note: *)

$

$

Not available

9

Simplicity 1709188SM

PLUG, Hole, Electric Lift (Hydro models only)

$4.99

$

In Stock, only 1 left!

0

10

Simplicity 5103809YP

LIGHT, INDICATOR, PANEL, LED, RED

$29.99

$

Usually ships in 2-12 days

0

11

Simplicity 5025179X6SM

SCREW, #10-24 X 3/4", ROUND PHILLIPS

$3.99

$

In Stock, only 1 left!

0

12

Simplicity 5412044AYP

PANEL, CONTROL, IS2100Z - BLK

$41.99

$

Usually ships in 2-12 days

0

13

Simplicity 5022222SM

RING, SWITCH RETAINER, PTO

$4.49

$

In Stock, only 1 left!

0

14

Simplicity 5101076SM

CABLE, THROTTLE, 47"

$35.99

$

Usually ships in 2-12 days

0

15

Simplicity 703412

NUT, Nylock, #10-24

$4.49

$

Usually ships in 2-12 days

0

16

Simplicity 5101537SM

LEVER, THROTTLE CONTROL, HEAVY DUTY

$48.99

$

Usually ships in 2-12 days

0

17

Simplicity 5022269SM

O-RING, 7/8" ID X 1/16" W

$3.49

$

Usually ships in 2-12 days

0

18

Simplicity 5046360X1SM

THROTTLE CONTROL HANDLE/KNOB

$10.99

$

In Stock, only 1 left!

0

19

Simplicity 5021029SM

TIE, SELF-LOCKING, 12"

Note: (Not illustrated)

$

$

Not available
