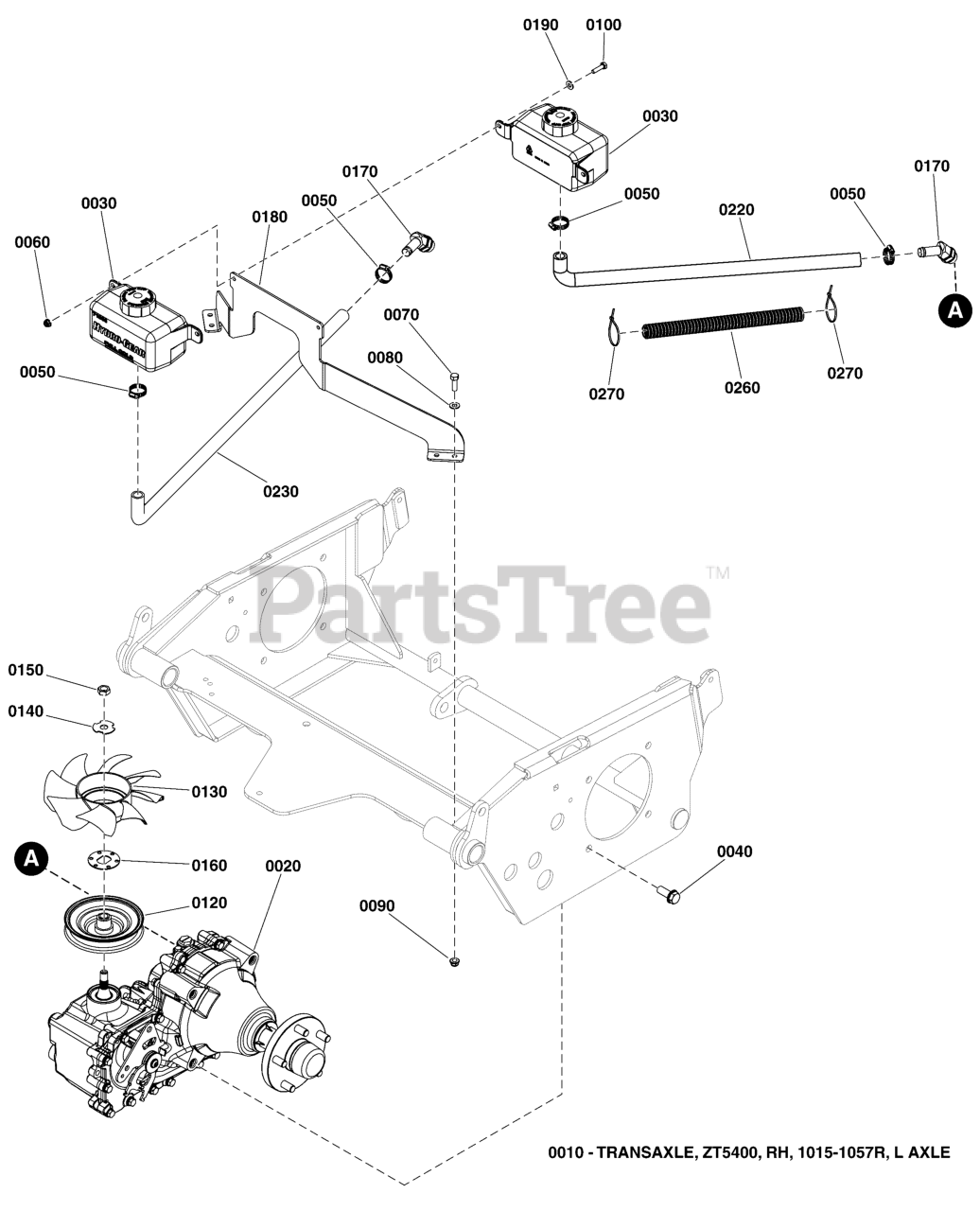

5901799 - Simplicity Cobalt LE 72" Zero-Turn Mower, 37hp Briggs & Stratton Hydraulic Group S/N: 4001063572 and Above Parts Diagram

Cobalt LE 72" Zero-Turn Mower, 37hp Briggs & Stratton

Hydraulic Group S/N: 4001063572 and Above Parts Diagram

  • Title

0010

Simplicity 5103963YP

ZT-5400, LONG AXLE, RH, 1015-1057R
(Superseded to 84008008)

Note: (Not illustrated)

$2336.99

$

Usually ships in 2-12 days

0

0020

Simplicity 5103964YP

ZT-5400, LONG AXLE, LH, 1015-1057L
(Superseded to 84008001)

$2222.99

$

Usually ships in 2-12 days

0

0030

Simplicity 5101998YP

HYDRO TANK, HYDRO-GEAR 71938, 1 LITER

$68.99

$

In Stock, only 2 left!

0

0040

Simplicity 5025535YP

BOLT, 1/2-13 X 1-1/4, SF, PLT W/PATCH

Note: (Torque transmission mounting bolts to 95-115 ft-lbs (129-156 Nm))

$7.99

$

Usually ships in 2-12 days

0

0050

Simplicity 5021164SM

CLAMP, #10 HOSE, STAINLESS

$3.99

$

In Stock, only 1 left!

0

0060

Simplicity 703463

NUT, Flange Nylock , 1/4-20

$4.49

$

In Stock, Qty 20+

0

0070

Simplicity 703585

CAPSCREW, Hex Head, 5/16-18 x 1

$4.99

$

Usually ships in 2-12 days

0

0080

Simplicity 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, only 1 left!

0

0090

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0100

Simplicity 5025010X8SM

BOLT, 1/4-20 X 1", GD

$3.99

$

In Stock, only 2 left!

0

0120

Simplicity 5102873YP

PULLEY, ZT5400 (53179)

$88.99

$

Usually ships in 2-12 days

0

0130

Simplicity 5102874YP

FAN, ZT5400

$27.99

$

In Stock, only 2 left!

0

0140

Simplicity 5102914YP

WASHER, Slotted

$3.99

$

In Stock, only 1 left!

0

0150

Simplicity 5102916YP

NUT, ZT5400

$3.49

$

In Stock, only 1 left!

0

0160

Simplicity 5102917YP

SPACER, ANTI ROTATE, ZT5400

$5.99

$

In Stock, only 1 left!

0

0170

Simplicity 5103923YP

FITTING, 45, 5/8 TUBE TO 7/8-14 O-RING

$22.99

$

Usually ships in 2-12 days

0

0180

Simplicity 84003229

PLATE RESERVOIR MOUNT - BLK

$53.99

$

Usually ships in 2-12 days

0

0190

Simplicity 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0220

Simplicity 84005242

HOSE, Hydraulic

Note: 20.50"

$48.99

$

Usually ships in 2-12 days

0

0230

Simplicity 84005243

HOSE, Hydraulic

Note: 23.50"

$56.99

$

Usually ships in 2-12 days

0

0260

Simplicity 5050862X12SM

WIRE LOOM, 12"

$4.49

$

Usually ships in 2-12 days

0

0270

Simplicity 5021030YP

TIE,SELF-LOCKING, 6"
(Superseded to 5021030SM)

$2.99

$

In Stock, only 3 left!

0
