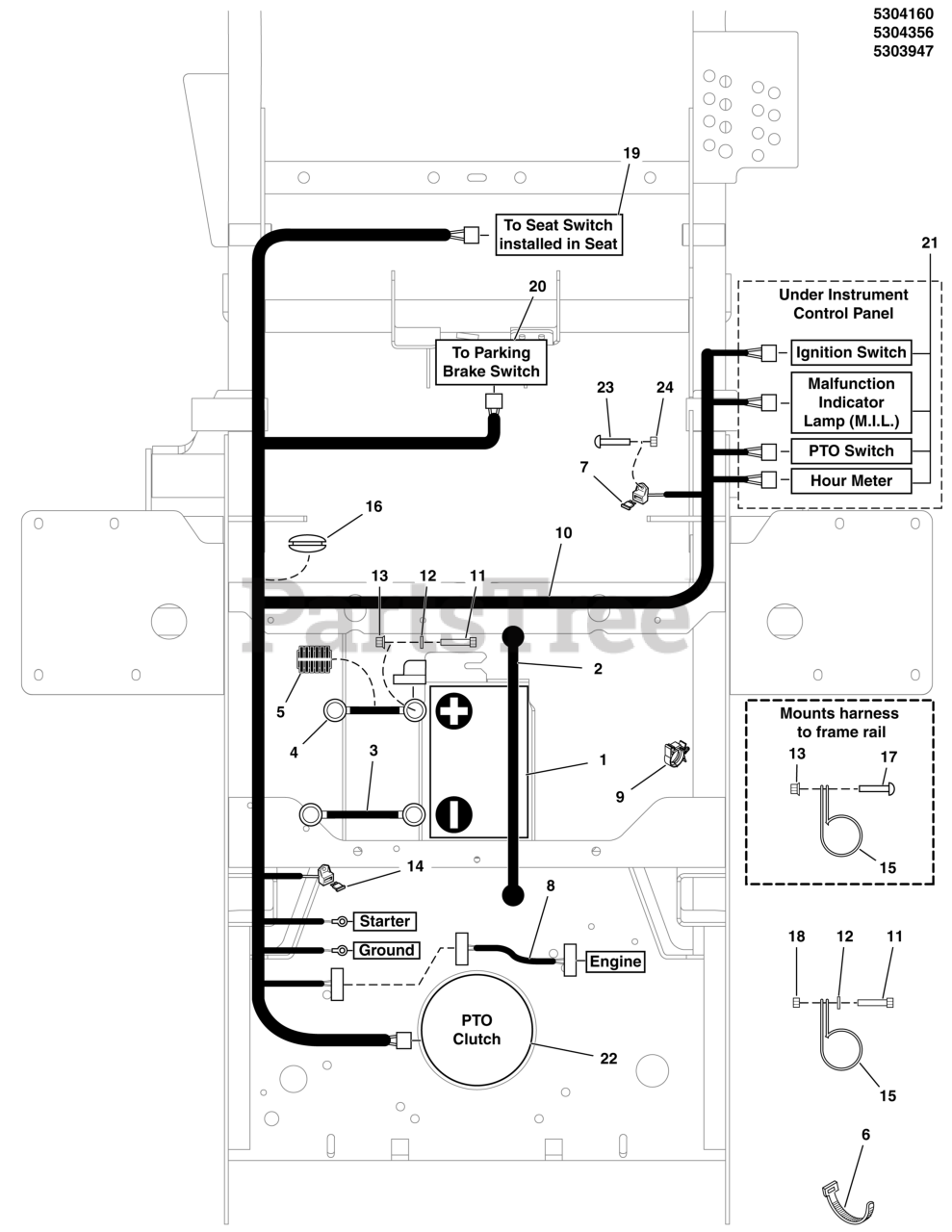

5901799 - Simplicity Cobalt LE 72" Zero-Turn Mower, 37hp Briggs & Stratton Electrical Group Parts Diagram

Cobalt LE 72" Zero-Turn Mower, 37hp Briggs & Stratton

Electrical Group Parts Diagram

  • Title
1

BATTERY, WET ( BCIU1, 340 CCA)

$

$

Not available

2

Simplicity 1722009SM

STRAP, Rubber, 13"

$10.99

$

In Stock, only 1 left!

0

3

Simplicity 5021406SM

CABLE, Negative (-) Battery (not shown)

$16.99

$

Usually ships in 2-12 days

0

4

Simplicity 5021405SM

BATTERY CABLE, POS, 22, 1/4-5/16

$18.99

$

Usually ships in 2-12 days

0

5

Simplicity 5050927X16YP

WIRE LOOM, 3/8 ID X 16 IN

$4.99

$

Usually ships in 2-12 days

0

6

Simplicity 5021029SM

TIE, SELF-LOCKING, 12"

$

$

Not available

7

Simplicity 5102710YP

FUSE, ATO, 25 AMP

$3.49

$

Usually ships in 2-12 days

0

8

Simplicity 84003308

HARNESS, Wiring

$18.99

$

Usually ships in 2-12 days

0

9

Simplicity 5104705YP

ROSEBUD LOOM CLIP

$2.49

$

Usually ships in 2-12 days

0

10

Simplicity 5105535YP

HARNESS, LARGE WIRING

$207.99

$

Usually ships in 2-12 days

0

11

Simplicity 5025010X6SM

CAPSCREW, Hex Head, 1/4-20 x 3/4 (stiffener to top of cover)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 703233

NUT, Serrated, Flange, 1/4-20, GR5

$4.49

$

In Stock, Qty 6

0

14

Simplicity 5101935YP

FUSE, ATO, 15 AMP (SV)

$4.49

$

Usually ships in 2-12 days

0

15

Simplicity 5021500SM

CLAMP, VINYL INSULATED, 1.00

$3.99

$

Usually ships in 2-12 days

0

16

Simplicity 5102677YP

GROMMET, 1-1/2" ID FOR 1/4" METAL

$7.49

$

Usually ships in 2-12 days

0

$4.49

$

Usually ships in 2-12 days

0

18

Simplicity 703463

NUT, Flange Nylock , 1/4-20

$4.49

$

In Stock, Qty 20+

0

19

Refer to: Seat Mount & Floor Group

$

$

Not available

20

Refer to: Parking Brake Group

$

$

Not available

21

Refer to: Instrument Control Panel Group

$

$

Not available

22

Refer to: Engine & PTO Group

$

$

Not available

23

Snapper 5025179X4YP

SCREW- #10-24 X 1/2 ROUND PHILLIPS
(Superseded to 5025179X4SM)

$3.99

$

Usually ships in 2-12 days

0

24

Snapper 5025271YP

NUT, #10-24 HEX NYLON LOCK
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0
