5901799 - Simplicity Cobalt LE 72" Zero-Turn Mower, 37hp Briggs & Stratton 72" Mower Deck Group - Rollers Parts Diagram

Cobalt LE 72" Zero-Turn Mower, 37hp Briggs & Stratton

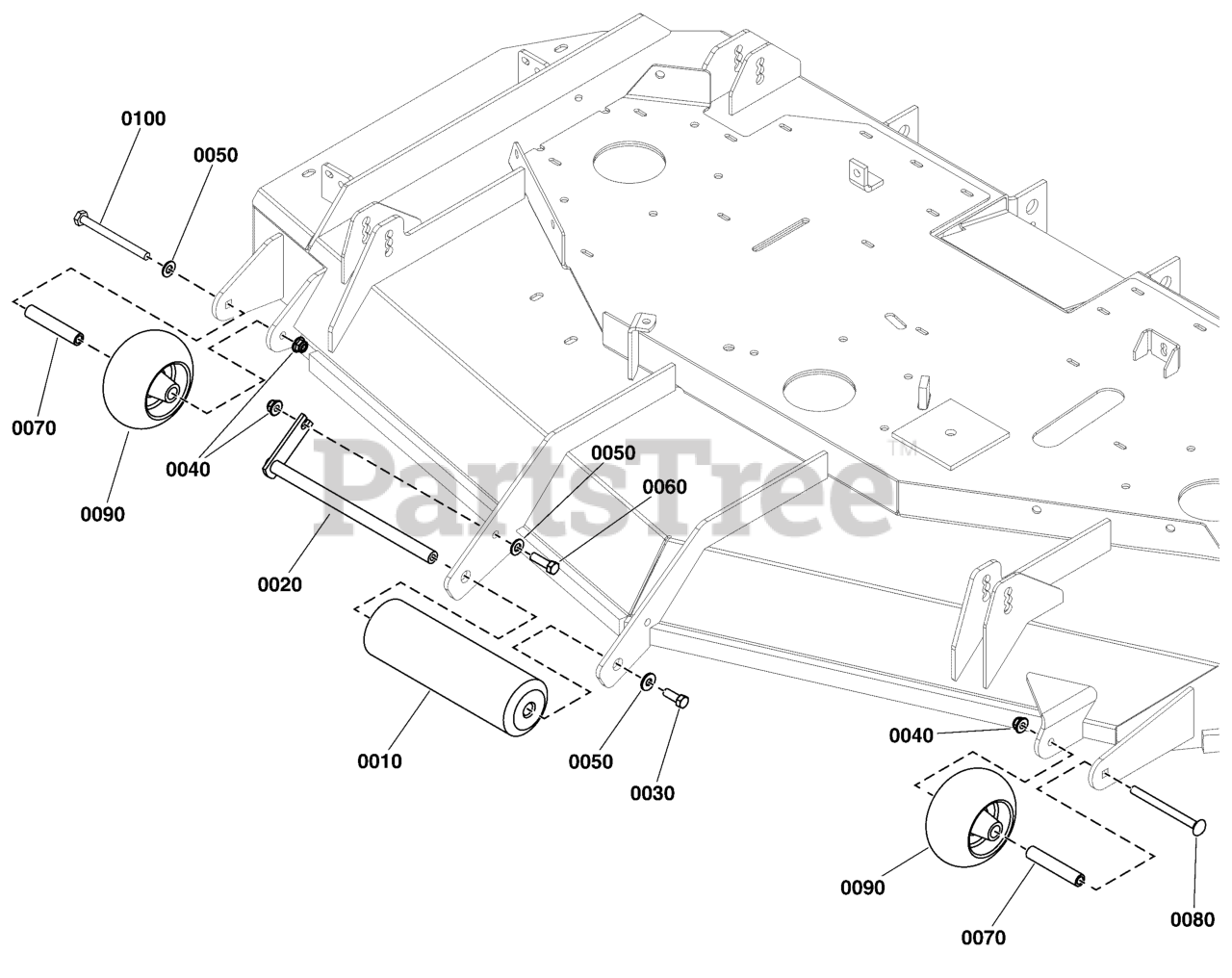

72" Mower Deck Group - Rollers Parts Diagram

  • Title
0010

Simplicity 5020785SM

ROLLER, Nose

$29.99

$

In Stock, Qty 20+

0

0020

Simplicity 5041655AYP

WELD, BRACKET, ROLLER PIN - BLK

$46.99

$

In Stock, only 2 left!

0

0030

Simplicity 5025013X8SM

CAPSCREW, Hex Head, 3/8-16 x 1

$3.99

$

In Stock, Qty 6

0

0040

Simplicity 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

0050

Simplicity 703590

WASHER, .406

$3.99

$

In Stock, Qty 10

0

0060

Simplicity 5025013X8SM

CAPSCREW, Hex Head, 3/8-16 x 1

$3.99

$

In Stock, Qty 6

0

0070

Simplicity 5105554YP

SPACER, .38 X .63 X 3.38, CZ

$5.49

$

In Stock, Qty 8

0

0080

Simplicity 5025146X36YP

BOLT, 3/8-16 X 4-1/2, CARRIAGE, GD5, CZ

$4.49

$

In Stock, only 4 left!

0

0090

Simplicity 5105521YP

WHEEL, ANTI SCALP, 5"

$14.99

$

Usually ships in 2-12 days

0

0100

Simplicity 5025013X36YP

BOLT, 3/8-16 X 4-1/2 GD5 CZ

$5.99

$

Usually ships in 2-12 days

0
