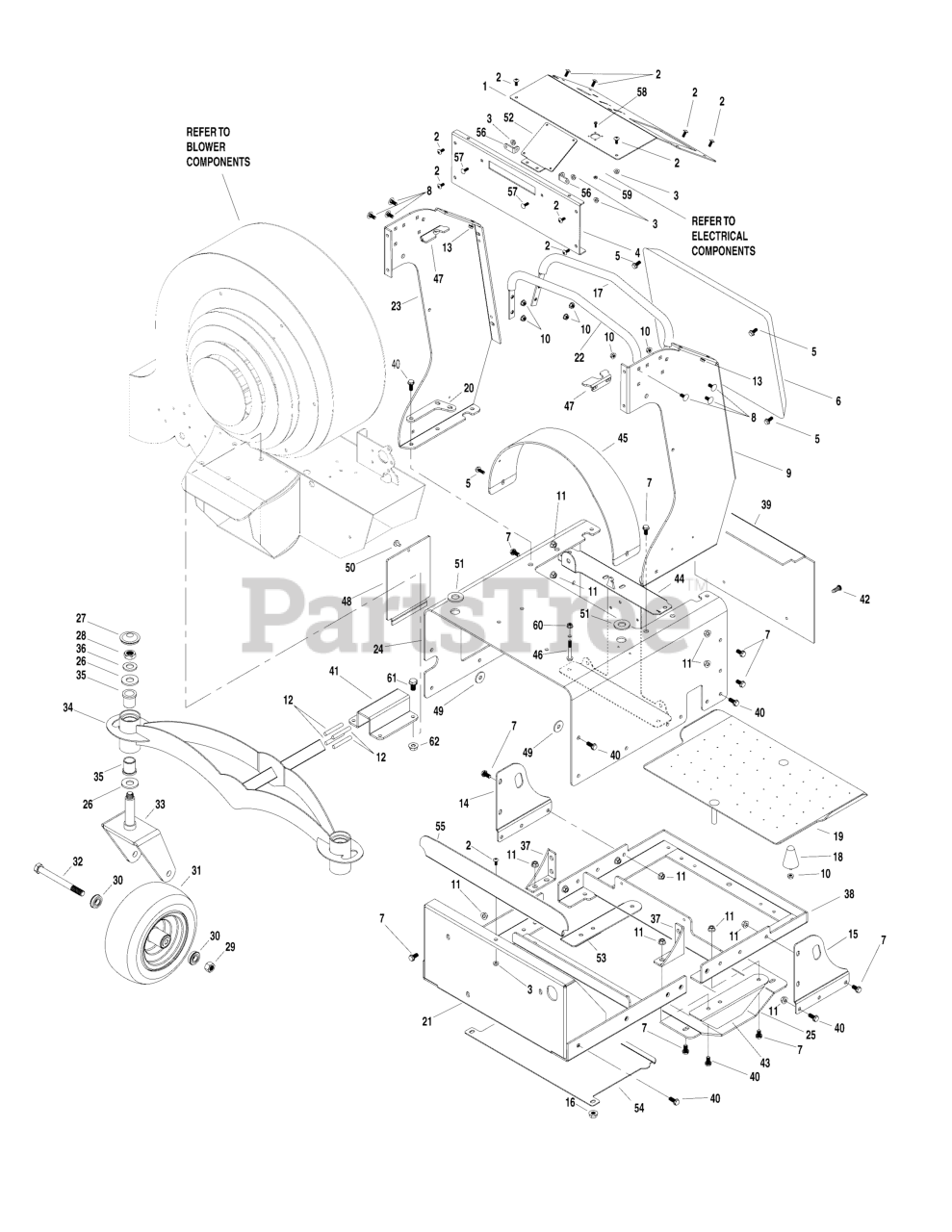

5901794 - Ferris Hurricane X3 Series Stand-On Blower Chassis Group Parts Diagram

Hurricane X3 Series Stand-On Blower

Chassis Group Parts Diagram

  • Title

1

Ferris 5418514

PLATE, DASH PANEL, X3,Z3 (ZF17452)

$

$

Currently unavailable

2

Ferris 5106872

BOLT, 1/4-20 X 3/4, FLANGE, CZ
(Superseded to 5106872FS)

$2.49

$

Usually ships in 2-12 days

0

3

Ferris 5106871

NUT, 1/4-20, SERRATED FLANGE, YZ
(Superseded to 5025126)

$4.49

$

Usually ships in 2-12 days

0

4

Ferris 5418513

WELD, DASH FRONT PANEL (ZFT17451)

$

$

Currently unavailable

5

Ferris 5106878

BOLT, 5/16-18 X 3/4, FLANGE, CZ
(Superseded to 80003531)

$5.49

$

In Stock, Qty 14

0

6

Ferris 5107538

KNEE PAD, BLWR
(Superseded to 5107538FS)

$308.99

$

Usually ships in 2-12 days

0

7

Ferris 5106881

BOLT, 3/8-16 X 3/4, FLANGE, CZ
(Superseded to 5106881FS)

$2.49

$

Usually ships in 2-12 days

0

8

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

9

Ferris 5418516AI

CONTROL TOWER X3, LH - RED
(Superseded to 5418516AIFS)

$234.99

$

Usually ships in 2-12 days

0

10

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 4 left!

0

11

Ferris 5025128

NUT, 3/8-16 Hex Large Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

12

Ferris 5107356

CORD, RUBBER
(Superseded to 5107356FS)

$5.49

$

Usually ships in 2-12 days

0

13

Ferris 5106833

NUT, 1/4-20, RIV, CZ
(Superseded to 5106833FS)

$2.49

$

Usually ships in 2-12 days

0

14

Ferris 5418520

PLATE, TIE DOWN RH (X310-T2006)

$

$

Currently unavailable

15

Ferris 5418521AI

PLATE TIE DOWN LH - RED
(Superseded to 5418521AIFS)

$37.99

$

Usually ships in 2-12 days

0

16

Ferris 5025128

NUT, 3/8-16 Hex Large Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

17

Ferris 5107045AI

REAR HANDLE, BLWR - RED
(Superseded to 5107045A)

$112.99

$

Usually ships in 2-12 days

0

18

Ferris 5107206

BUMPER, RUBBER, 5/16-18
(Superseded to 5107206FS)

$15.99

$

Usually ships in 2-12 days

0

19

Ferris 5418525

WELD, FOOT PLATE (X310-2011)

$

$

Currently unavailable

20

Ferris 5107437A

PLATE, UPPER BEAM MOUNT - BLK
(Superseded to 5107437AFS)

$13.99

$

Usually ships in 2-12 days

0

21

Ferris 5107435A

WELD, X3 FRONT CHASSIS - BLK
(Superseded to 5107435AFS)

$391.99

$

Usually ships in 2-12 days

0

22

Ferris 5107044AI

FRONT HANDLE, BLWR - RED

$39.99

$

Usually ships in 2-12 days

0

23

Ferris 5418515AI

CONTROL TOWER X3, RH - RED
(Superseded to 5418515AIFS)

$234.99

$

Usually ships in 2-12 days

0

24

Ferris 5418509AI

WELD, MOTOR BOX - RED
(Superseded to 5418509AIFS)

$426.99

$

Usually ships in 2-12 days

0

25

Ferris 5107384A

PLATE, SKID - BLK
(Superseded to 5107384AFS)

$114.99

$

Usually ships in 2-12 days

0

26

Ferris 5107778

WASHER, 1 X 10GA, MACH, CZ
(Superseded to 84005968)

$2.99

$

Usually ships in 2-12 days

0

27

Ferris 5107567

CAP, GREASE, PLASTIC
(Superseded to 5107567FS)

$4.49

$

Usually ships in 2-12 days

0

28

Ferris 5106783

NUT, 3/4-10, NYLOCK JAM, CZ
(Superseded to 5106783FS)

$3.99

$

Usually ships in 2-12 days

0

29

Ferris 5025403

NUT, 5/8-11 HEX NYLOCK FLANGE
(Superseded to 5025403YP)

$6.99

$

In Stock, Qty 6

0

30

Ferris 5106782

BEARING, CASTER
(Superseded to 5107877X3)

$15.99

$

In Stock, only 2 left!

0

31

Ferris 5107877

TIRE ASSEMBLY, 11 X 4.00 - 5
(Superseded to 5107877FS)

$104.99

$

Usually ships in 2-12 days

0

32

Ferris 5106896

BOLT, 5/8-11 X 6-1/2, CZ
(Superseded to 5106896FS)

$14.99

$

Usually ships in 2-12 days

0

33

Ferris 5418504

WELD, CASTER YOKE, X3 (109-10-T2010)
(Superseded to 5418604AIFS)

$201.99

$

Usually ships in 2-12 days

0

34

Ferris 5418608AIFS

PIVOT

$497.99

$

Usually ships in 2-12 days

0

35

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 10

0

36

Ferris 5418506

BUSHING, 1 X 10GA, MACHINED, YZ

$5.99

$

Usually ships in 2-12 days

0

37

Ferris 5107387

WELD, TRANS 90° MOUNT BRACKET (X3-14-3017)

$

$

Currently unavailable

38

WELD, X3 REAR CHASSIS - BLK

$

$

Not available

39

Ferris 5419300AI

PLATE, TOE KICK, FB2000 - RED
(Superseded to 5419300AIFS)

$56.99

$

Usually ships in 2-12 days

0

40

Ferris 5106834

BOLT, 3/8-16 X 1, SER FLG GD5, CZ (15062)
(Superseded to 5025390X8)

$3.49

$

Usually ships in 2-12 days

0

41

Ferris 5107381

PLATE, BENT, FRONT END TORSION
(Superseded to 5107381FS)

$124.99

$

Usually ships in 2-12 days

0

42

Ferris 5106898

SCREW, 5/16-18 X 1/2, SLF TPNG, CZ
(Superseded to 5106898FS)

$2.99

$

Usually ships in 2-12 days

0

43

Ferris 5107382AA

BRACKET, BOTTOM CHASSIS RIGHT - BLK
(Superseded to 5107382A)

$19.99

$

Usually ships in 2-12 days

0

44

Ferris 5107388

WELD TRANS I-BEAM (XF1730)

$

$

Currently unavailable

45

Ferris 5418518AI

PLATE, BELT GUARD X3 - RED
(Superseded to 5418518AIFS)

$56.99

$

Usually ships in 2-12 days

0

46

Ferris 5107304

BOLT, 5/16-18 X 2-1/4 SER FLNG GD5, CZ
(Superseded to 5107304FS)

$2.49

$

Usually ships in 2-12 days

0

47

Ferris 5107391

BRACKET, NEUTRAL CENTERING, CZ
(Superseded to 5107391FS)

$30.99

$

Usually ships in 2-12 days

0

48

Ferris 5419192AI

PLATE, BATTERY DOOR - RED
(Superseded to 5419192AIFS)

$22.99

$

Usually ships in 2-12 days

0

49

Ferris 5107390

SPACER, MOTOR BOX 10GA
(Superseded to 5107390FS)

$16.99

$

Usually ships in 2-12 days

0

50

Ferris 5106913

KNOB, 1/4-20 X 1/2 CAP SCREW
(Superseded to 5106913FS)

$4.99

$

Usually ships in 2-12 days

0

51

Ferris 5106788

GROMMET, RUBBER
(Superseded to 5106788FS)

$1.99

$

Usually ships in 2-12 days

0

52

Ferris 5107407AA

BRACKET, RELAY MOUNT - BLK
(Superseded to 5107407AAFS)

$21.99

$

Usually ships in 2-12 days

0

53

Ferris 5107383AA

BRACKET, BOTTOM CHASSIS LEFT - BLK
(Superseded to 5107383A)

$11.99

$

Usually ships in 2-12 days

0

54

Ferris 5107385

GUARD, LOWER DEBRIS (ZF1445)
(Superseded to 5107385FS)

$20.99

$

Usually ships in 2-12 days

0

55

Ferris 5107386A

GUARD, FORWARD DEBRIS - BLK
(Superseded to 5107386AFS)

$26.99

$

Usually ships in 2-12 days

0

56

Ferris 5107389A

BRACKET, L HEADLIGHT MOUNT - BLK

$

$

Currently unavailable

57

Ferris 5106928

BOLT, 1/4-20 X 3/4, CARRIAGE, CZ (17109)
(Superseded to 80003518)

$3.99

$

In Stock, only 1 left!

0

58

Ferris 5106917

SCREW, #8-32 X 3/8, ALLEN, SS

$2.49

$

Usually ships in 2-12 days

0

59

Ferris 5106920

NUT, #8-32, KEPS, CZ

$2.49

$

Usually ships in 2-12 days

0

60

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 4 left!

0

61

Ferris 5106786

BOLT, 1/2-13 X 1-1/4, FLANGE, CZ
(Superseded to 5106786FS)

$4.49

$

Usually ships in 2-12 days

0

62

Ferris 5106787

NUT, 1/2-13 SERRATED FLANGE, CZ
(Superseded to 5106787FS)

$2.49

$

Usually ships in 2-12 days

0
