5901794 - Ferris Hurricane X3 Series Stand-On Blower Blower Group Parts Diagram

Hurricane X3 Series Stand-On Blower

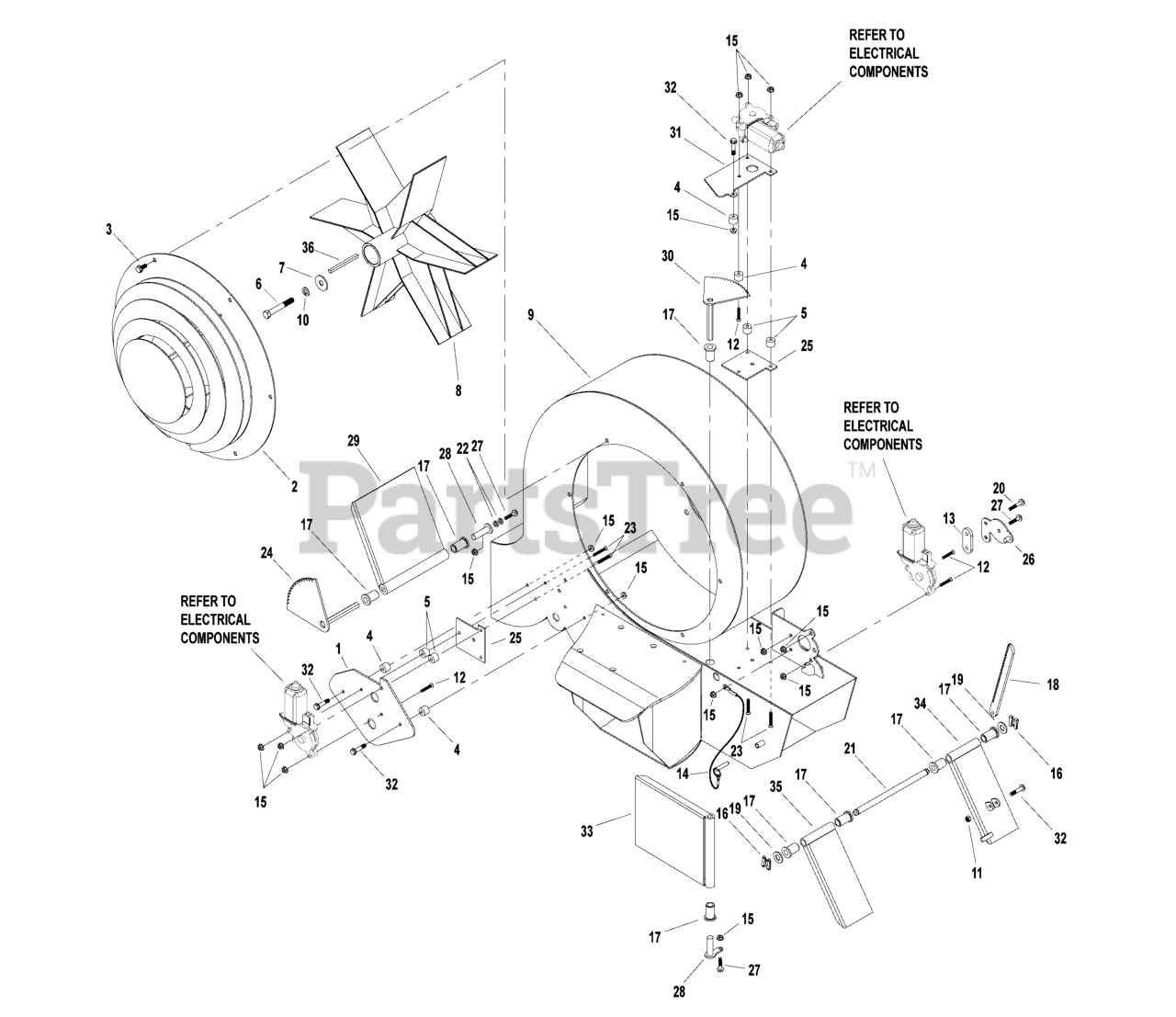

Blower Group Parts Diagram

  • Title

1

Ferris 5107338A

PLATE, RIGHT DEFLECTOR COVER - BLK
(Superseded to 5107338AFS)

$33.99

$

Usually ships in 2-12 days

0

2

Ferris 5418562A

WELD, SAFETY COVER X3 - BLK
(Superseded to 5418562AFS)

$592.99

$

Usually ships in 2-12 days

0

3

Ferris 5106878

BOLT, 5/16-18 X 3/4, FLANGE, CZ
(Superseded to 80003531)

$5.49

$

In Stock, Qty 14

0

4

Ferris 5107396

SPACER, .265 X .50 X .320, CZ
(Superseded to 5107396FS)

$17.99

$

Usually ships in 2-12 days

0

5

Ferris 5106902

SPACER, .265 X .50 X .483, CZ
(Superseded to 5106902FS)

$7.49

$

Usually ships in 2-12 days

0

6

Ferris 5106926

BOLT, 7/16-20 X 2, GD8, PHOS

$3.99

$

Usually ships in 2-12 days

0

7

Ferris 5106924

WASHER, IMPLR, 1-3/4OD X 7/16ID
(Superseded to 5106924FS)

$11.99

$

Usually ships in 2-12 days

0

8

Ferris 5107480

WELD, IMPELLER, W/VANGUARD ENG (XF1737)

$655.99

$

Usually ships in 2-12 days

0

9

Ferris 5418641AI

WELD, BLOWER HOUSING , X3 - RED
(Superseded to 5418641AIFS)

$2430.99

$

Usually ships in 2-12 days

0

10

Ferris 80004476

WASHER, 7/16, Split Lock, Zinc/Clear

$4.49

$

Usually ships in 2-12 days

0

11

Ferris 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 5

0

12

Ferris 5106874

SCREW, 1/4-20 X 1-1/4, ALLEN, SS
(Superseded to 5106874FS)

$2.49

$

Usually ships in 2-12 days

0

13

Ferris 5107334

PLATE, RACK SPACER (101-16-2029)
(Superseded to 5107334FS)

$13.99

$

Usually ships in 2-12 days

0

14

Ferris 5107886

Z DEFLECTOR PIN RETAINING CABLE (Pin & Lanyard Assembly)
(Superseded to 5107886FS)

$49.99

$

Usually ships in 2-12 days

0

15

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

16

Ferris 5106951

CLIP, SAFETY
(Superseded to 5106951FS)

$2.49

$

Usually ships in 2-12 days

0

17

Ferris 5106943

BUSHING, 1/2 X 3/4 X 1F
(Superseded to 5106943FS)

$4.49

$

In Stock, only 2 left!

0

18

Ferris 5107335

PLATE, DEFLECTOR RACK,CZ
(Superseded to 5107335FS)

$40.99

$

Usually ships in 2-12 days

0

19

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

20

Ferris 5106873

BOLT, 1/4-20 X 1-1/2, FLANGE, CZ
(Superseded to 5106873FS)

$2.49

$

Usually ships in 2-12 days

0

21

Ferris 5107336

ROD, DEFLECTOR SUPPORT 1/2 X 7.50
(Superseded to 5107336FS)

$26.99

$

Usually ships in 2-12 days

0

22

Ferris 5025169

WASHER, 1/4 LOCK
(Superseded to 5025169FS)

$3.99

$

In Stock, only 4 left!

0

23

Ferris 5106903

SCREW, 1/4-20 X 1-3/4, ALLEN, SS
(Superseded to 5106903FS)

$2.49

$

Usually ships in 2-12 days

0

24

Ferris 5107339

WELD, UNIVERSAL DEFLECTOR GEAR
(Superseded to 5107339FS)

$48.99

$

Usually ships in 2-12 days

0

25

Ferris 5107332

PLATE, DEFLECTOR SPACER (X310-2052)

$

$

Currently unavailable

26

Ferris 5107333

WELD, RACK KEEPER, CZ
(Superseded to 5107333FS)

$19.99

$

Usually ships in 2-12 days

0

27

Ferris 5106872

BOLT, 1/4-20 X 3/4, FLANGE, CZ
(Superseded to 5106872FS)

$2.49

$

Usually ships in 2-12 days

0

28

Ferris 5107495

PIN, DEFLECTOR, RIGHT
(Superseded to 5107337FS)

$14.99

$

Usually ships in 2-12 days

0

29

Ferris 5107493

WELD, RIGHT DEFLECTOR, X3, CZ
(Superseded to 5107493FS)

$103.99

$

Usually ships in 2-12 days

0

30

Ferris 5107339

WELD, UNIVERSAL DEFLECTOR GEAR
(Superseded to 5107339FS)

$48.99

$

Usually ships in 2-12 days

0

31

Ferris 5107329

PLATE,FW DEFLECTOR MOTOR MNT (X310-2043)
(Superseded to 5107329FS)

$12.99

$

Usually ships in 2-12 days

0

32

Ferris 5106917

SCREW, #8-32 X 3/8, ALLEN, SS

$2.49

$

Usually ships in 2-12 days

0

33

Ferris 5107467

FORWARD DEFLECTOR X3, CZ
(Superseded to 5107467FS)

$96.99

$

Usually ships in 2-12 days

0

34

Ferris 5107773

WELD, LEFT POWER DEFLECTOR, FB2000, CZ
(Superseded to 5107773FS)

$59.99

$

Usually ships in 2-12 days

0

35

Ferris 5107771

WELD, LEFT SLAVE DEFLECTOR, FB2000,CZ
(Superseded to 5107771FS)

$37.99

$

Usually ships in 2-12 days

0

36

Ferris 5106925

KEY, 1/4SQ X 3-3/8
(Superseded to 5106925FS)

$4.49

$

Usually ships in 2-12 days

0
