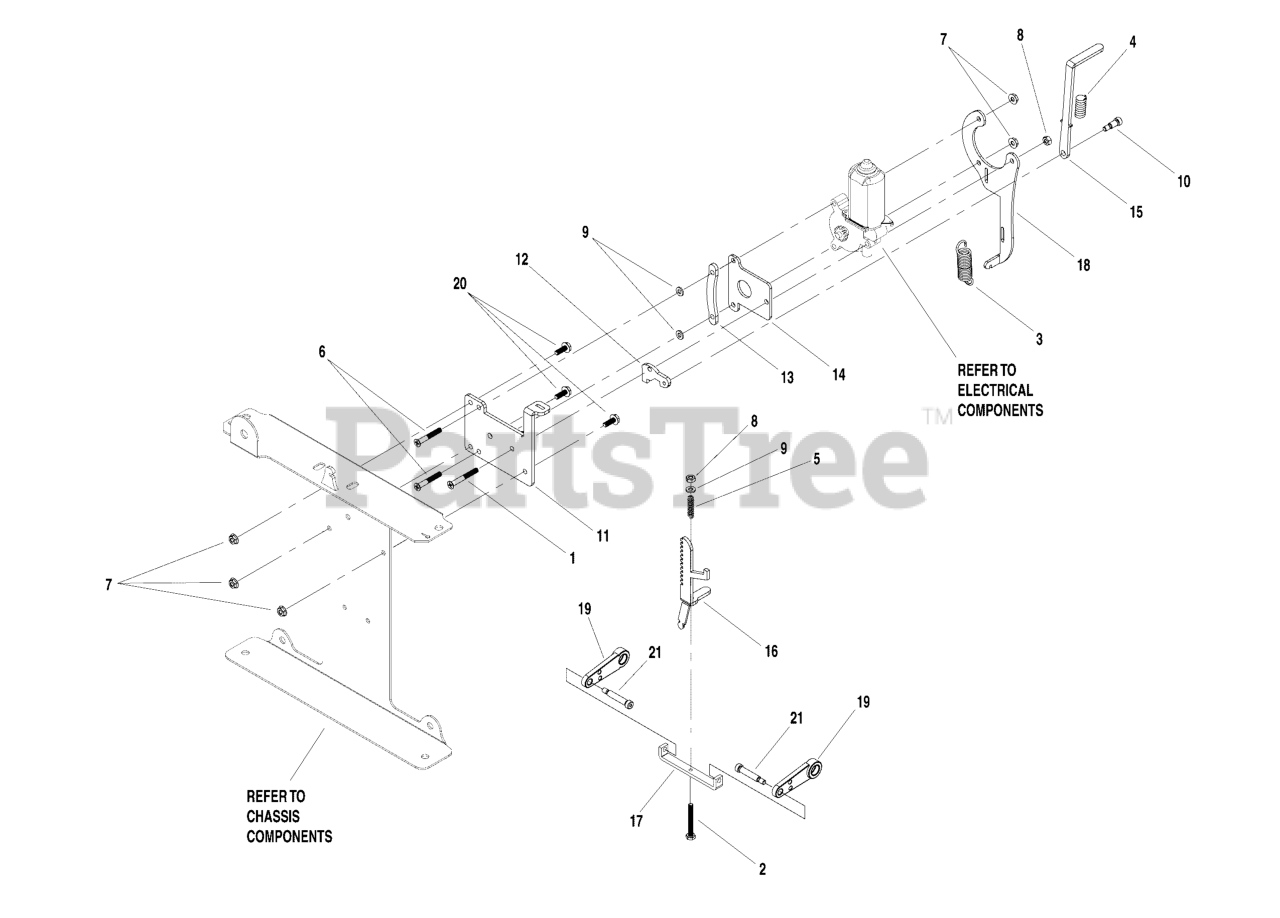

5901793 - Ferris Hurricane Z3 Series Stand-On Blower Brake Assembly Group Parts Diagram

Hurricane Z3 Series Stand-On Blower

Brake Assembly Group Parts Diagram

  • Title

1

Ferris 5106908

SCREW, 1/4-20 X 2, PHLPS, SS
(Superseded to 5106908FS)

$2.49

$

Usually ships in 2-12 days

0

2

Ferris 5025010X16

BOLT, 1/4-20 X 2", GD5
(Superseded to 5025010X16FS)

$2.99

$

Usually ships in 2-12 days

0

3

Ferris 5106888

SPRING, EXTENSION, #29
(Superseded to 5106888FS)

$6.49

$

Usually ships in 2-12 days

0

4

Ferris 5106910

SPRING, COMPRESSION, #29
(Superseded to 5106910FS)

$11.99

$

Usually ships in 2-12 days

0

5

Ferris 5106911

SPRING, COMPRESSION, #21
(Superseded to 5106911FS)

$9.99

$

Usually ships in 2-12 days

0

6

Ferris 5106903

SCREW, 1/4-20 X 1-3/4, ALLEN, SS
(Superseded to 5106903FS)

$2.49

$

Usually ships in 2-12 days

0

7

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

8

Ferris 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 5

0

9

Ferris 5106815

WASHER, 1/4 SAE, CZ
(Superseded to 5106815FS)

$2.49

$

Usually ships in 2-12 days

0

10

Ferris 5106912

BOLT, 5/16 X 1/2, SHLDR, SS
(Superseded to 5106912FS)

$9.49

$

Usually ships in 2-12 days

0

11

Ferris 5107893

PLATE, BRAKE BACKING (X3-1511)
(Superseded to 5107893FS)

$52.99

$

Usually ships in 2-12 days

0

12

Ferris 5107322

PLATE, BRAKE CAM, CZ
(Superseded to 5107322FS)

$45.99

$

In Stock, only 1 left!

0

13

Ferris 5107323AA

PLATE, BRAKE SPACER - BLK
(Superseded to 5107323AAFS)

$6.49

$

Usually ships in 2-12 days

0

14

Ferris 5107892

PLATE, CAM COVER (X3-1514)
(Superseded to 5107892FS)

$85.99

$

Usually ships in 2-12 days

0

15

Ferris 5107328

PLATE, BRAKE RELEASE LEVER,CZ
(Superseded to 5107328FS)

$25.99

$

Usually ships in 2-12 days

0

16

Ferris 5107325

WELD, BRAKE GEAR RACK,CZ
(Superseded to 5107325FS)

$43.99

$

In Stock, only 2 left!

0

17

Ferris 5110201FS

ARM, Lever

$32.99

$

In Stock, only 1 left!

0

18

Ferris 5107327

PLATE, SWITCH MOUNT, CZ
(Superseded to 5107327FS)

$39.99

$

In Stock, only 1 left!

0

19

Refer to: Hydraulic and Control Lever Group

Note: (Part of Transaxle)

$

$

Not available

20

Ferris 5106872

BOLT, 1/4-20 X 3/4, FLANGE, CZ
(Superseded to 5106872FS)

$2.49

$

Usually ships in 2-12 days

0

21

Ferris 5106941

BOLT, 5/16 X 1-1/4, SHLDR, SS
(Superseded to 5106941FS)

$9.49

$

In Stock, only 2 left!

0
