5901780 - Simplicity Citation XT 61" Zero-Turn Mower, 27hp Briggs & Stratton Seat Mount and Floor Group S/N: 400875836 and Below Parts Diagram

Citation XT 61" Zero-Turn Mower, 27hp Briggs & Stratton

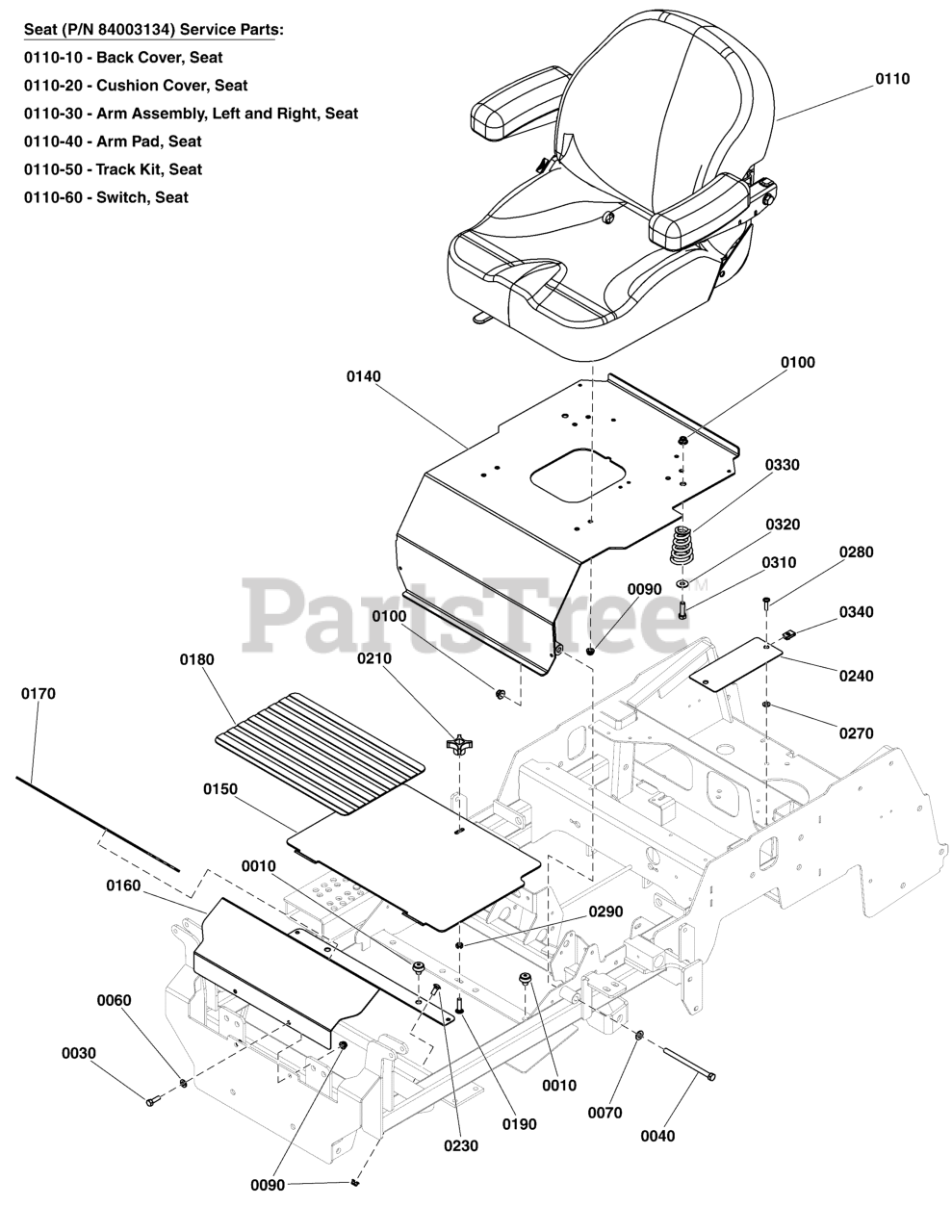

Seat Mount and Floor Group S/N: 400875836 and Below Parts Diagram

  • Title

0010

Simplicity 197546GS

MOUNT, Vibration

$7.99

$

In Stock, only 2 left!

0

0030

Simplicity 703585

CAPSCREW, Hex Head, 5/16-18 x 1

$4.99

$

In Stock, only 1 left!

0

0040

Simplicity 5025013X44SM

BOLT, 3/8-16 X 5-1/2 GD5 CZ

$4.99

$

Usually ships in 2-12 days

0

0060

Simplicity 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0070

Simplicity 703590

WASHER, .406

$3.99

$

In Stock, Qty 12

0

0090

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0100

Simplicity 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

0110

Simplicity 84003134

SEAT ASSEMBLY
(Superseded to 84003661)

$1016.99

$

Usually ships in 2-12 days

0

0110-10

Simplicity 84003135

CUSHION, Back

$246.99

$

Usually ships in 2-12 days

0

0110-20

Simplicity 84003136

CUSHION, Seat

$210.99

$

Usually ships in 2-12 days

0

0110-30

Simplicity 5104681X3YP

LEFT AND RIGHT HAND ARM ASSEMBLIES, CI3 SEAT

$433.99

$

Usually ships in 2-12 days

0

0110-40

Simplicity 5104681X4YP

PAD

$93.99

$

Usually ships in 2-12 days

0

0110-50

Simplicity 5104681X5YP

TRACK KIT, CI3 SEAT

$201.99

$

Usually ships in 2-12 days

0

0110-60

Simplicity 7023354YP

SWITCH, Seat, Push Button (NC)

$12.99

$

In Stock, Qty 20+

0

0140

Simplicity 5601153

ASSM, SEAT PLATE W/ DECALS, CIT XT 2019

$

$

Currently unavailable

0150

Simplicity 5410296CYP

PLATE, FLOOR, REMOVABLE, IS700 - ORG

$69.99

$

Usually ships in 2-12 days

0

0160

Simplicity 84003133

PLATE, Floor

$148.99

$

Usually ships in 2-12 days

0

0170

Simplicity 5101374YP

SAFETY WALK

$18.99

$

In Stock, only 1 left!

0

0180

Simplicity 5101333YP

SAFETY WALK, FLOOR PLATE, S50X, 10X17.13

$37.99

$

Usually ships in 2-12 days

0

0190

Simplicity 5025145X10YP

BOLT, 5/16-18 X 1-1/4, CARRIAGE, GD5, CZ

$3.49

$

Usually ships in 2-12 days

0

0210

Simplicity 1670578SM

KNOB, Internal Thread, 5/16 (Used Only on 24 in. Models)

$13.99

$

Usually ships in 2-12 days

0

0230

Simplicity 5025145X6SM

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ

$3.99

$

In Stock, Qty 5

0

0240

Simplicity 84005871

PLATE, Mount, Left

$9.49

$

Usually ships in 2-12 days

0

0270

Simplicity 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0280

Simplicity 5025299X8YP

CAPSCREW

$4.49

$

Usually ships in 2-12 days

0

0290

Simplicity 703164

NUT, Hex Center Lock, 5/16-18, GRB

$3.49

$

In Stock, Qty 20+

0

0310

Simplicity 5025013X10SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/4

$3.99

$

In Stock, Qty 12

0

0320

Simplicity 5025401YP

WASHER, 3/8 USS

$3.99

$

Usually ships in 2-12 days

0

0330

Simplicity 7078299SM

SPRING, SEAT SUPPORT

$14.99

$

Usually ships in 2-12 days

0

0340

Simplicity 5022665SM

BODY CLIP, 1/4-20 X 1/2" DEEP

$3.49

$

Usually ships in 2-12 days

0
