5901744 - Simplicity Contender XT 61" Zero-Turn Mower, 24hp Briggs & Stratton Main Frame & Front Suspension Group (5303231) Parts Diagram

Contender XT 61" Zero-Turn Mower, 24hp Briggs & Stratton

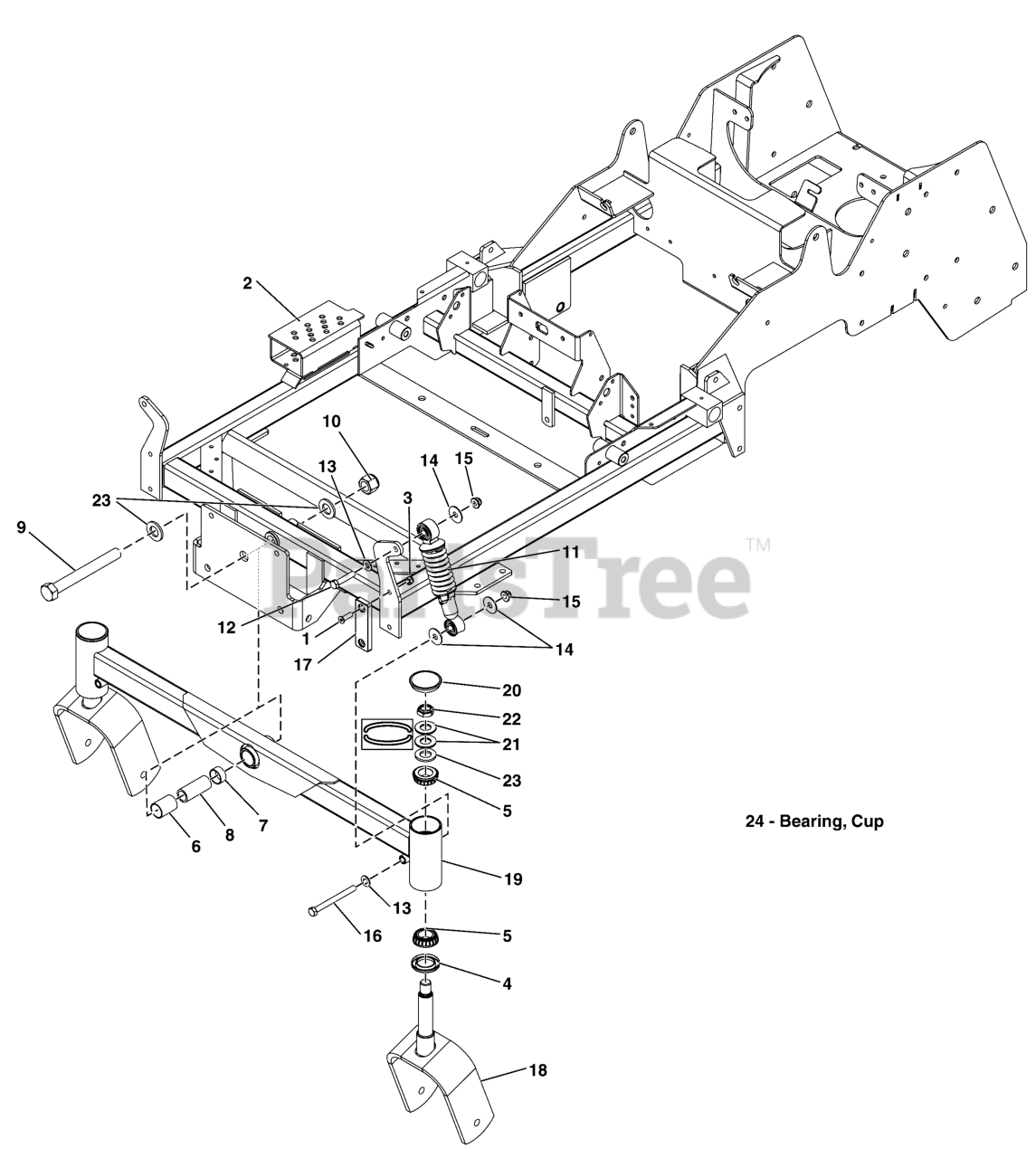

Main Frame & Front Suspension Group (5303231) Parts Diagram

  • Title

1

Simplicity 5025594YP

SCREW, 5/16-18 X 1 PHILLIPS HD, BZ

Note: (Was 5025303)

$3.99

$

Usually ships in 2-12 days

0

2

WELD, MAIN FRAME, CITATION XT - ORG

$

$

Not available

3

Simplicity 703902

NUT, Hex Nylock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 5021072SM

SEAL, GREASE

$7.49

$

In Stock, only 3 left!

0

5

Simplicity 5020884SM

BEARING, TAPERED ROLLER, 1

$25.99

$

In Stock, Qty 20+

0

6

Simplicity 5022852SM

PIVOT BEARING-1.00 X 1.125 ODX1.50

$33.99

$

In Stock, Qty 16

0

7

Simplicity 5100358SM

PIVOT BEARING, 1.00 X 1.125 OD X .50

$18.99

$

In Stock, Qty 14

0

8

Simplicity 5047489SM

SPACER, .75 X 1.00 X 2.38

$35.99

$

In Stock, Qty 13

0

9

Simplicity 5025265X52SM

BOLT, 3/4-16 X 6-1/2 YZ GD8

$15.99

$

In Stock, Qty 7

0

10

Simplicity 5025284SM

NUT, 3/4-16 HEX NYLON LOCK

$3.49

$

In Stock, only 3 left!

0

11

Simplicity 5023483SM

SHOCK, SPRING ASSEMBLY

$55.99

$

In Stock, Qty 15

0

12

Simplicity 5025013X14SM

BOLT, 3/8-16 X 1-3/4 GD5

$3.99

$

In Stock, only 2 left!

0

13

Simplicity 703590

WASHER, .406

$3.99

$

In Stock, Qty 19

0

14

Simplicity 5025165SM

WASHER-3/8 FENDER

$3.99

$

In Stock, only 2 left!

0

15

Simplicity 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 5025013X32SM

BOLT, 3/8-16 X 4 GD5 YZ

$3.99

$

In Stock, Qty 11

0

17

Simplicity 5102702YP

PAD, FRICTION - 1.25 X 4.00

$6.99

$

Usually ships in 2-12 days

0

18

Simplicity 5402208CSM

WELD, CASTER YOKE -ORG

Note: (S/N: 4000771923 and below)

$170.99

$

Usually ships in 2-12 days

0

18

Simplicity 84003067

YOKE, Caster

Note: (S/N: 4000771924 and above)

$199.99

$

Usually ships in 2-12 days

0

19

Simplicity 5405923CYP

WELD, PIVOTING FRONT END - ORG

$330.99

$

Usually ships in 2-12 days

0

20

Simplicity 5102929YP

CAP, LOW PROFILE, STEEL

$9.99

$

In Stock, Qty 5

0

21

Simplicity 5025449SM

WASHER, BELLEVILLE - 1.500 X .755

$4.99

$

Usually ships in 2-12 days

0

22

Simplicity 5025448SM

NUT, 3/4-16, HEX JAM NYLON LOCK

$3.49

$

In Stock, Qty 20+

0

23

Simplicity 5025160SM

WASHER, 3/4 SAE

$3.99

$

In Stock, Qty 5

0

24

Simplicity 5020883SM

BEARING, CUP

Note: (SV)

$9.49

$

In Stock, only 3 left!

0
