5901744 - Simplicity Contender XT 61" Zero-Turn Mower, 24hp Briggs & Stratton Hydraulic Group Parts Diagram

Contender XT 61" Zero-Turn Mower, 24hp Briggs & Stratton

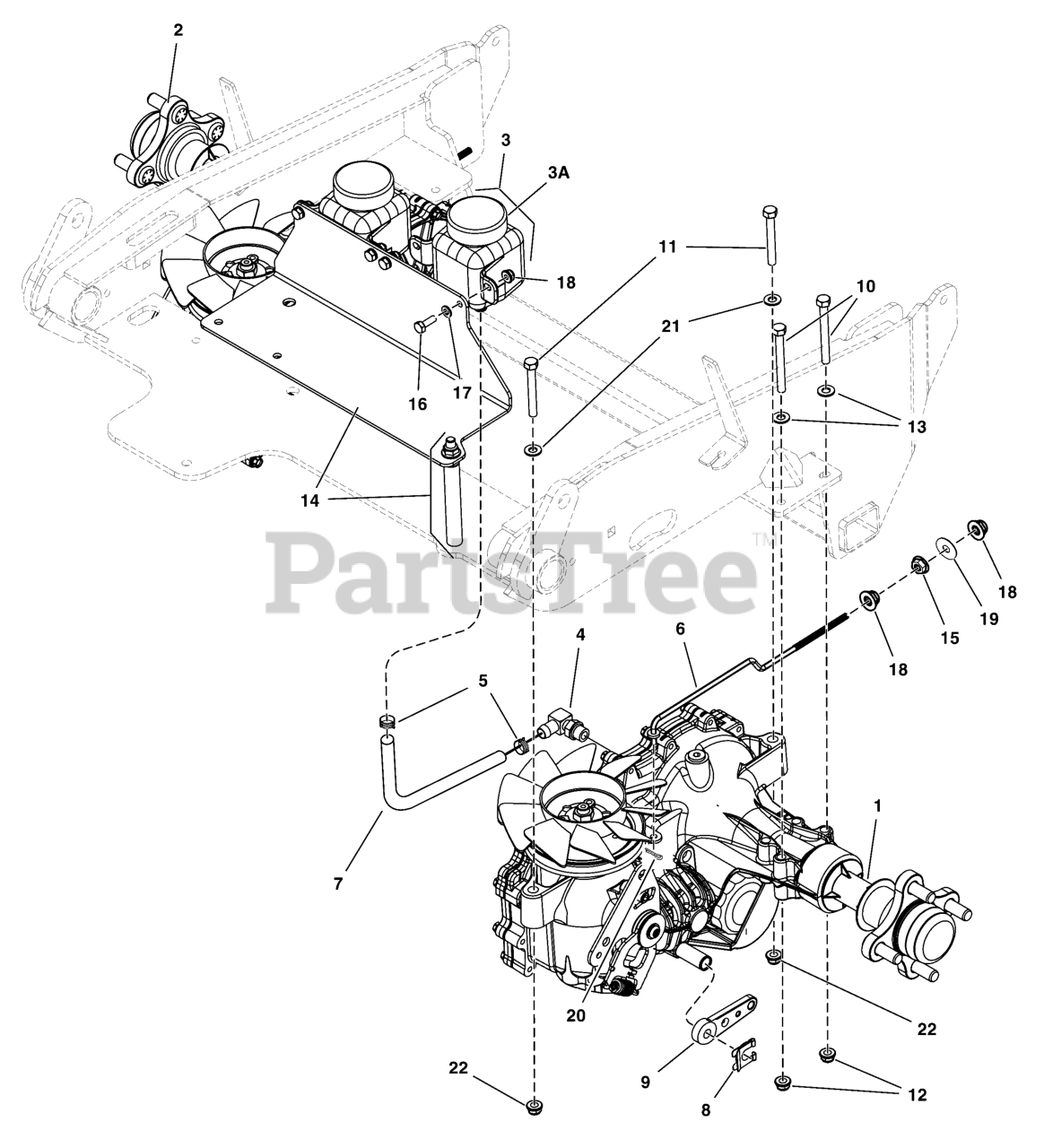

Hydraulic Group Parts Diagram

  • Title

1

Simplicity 5103589YP

TRANS, 3400, LH, ZS-KHEF-8T7C-11RX
(Superseded to 84006572)

$1452.99

$

Usually ships in 2-12 days

0

2

Simplicity 5103590YP

TRANS, 3400, RH, ZS-KHEF-8T7C-11RX
(Superseded to 84006571)

$1452.99

$

Usually ships in 2-12 days

0

3

Simplicity 5100473SM

RESERVOIR, Hydro

$40.99

$

Usually ships in 2-12 days

0

3A

Simplicity 5100778X1YP

RESERVIOR CAP (SV)

Note: (SV)

$21.99

$

In Stock, only 1 left!

0

4

Simplicity 5100370YP

FITTING, 9/16 O-Ring, 1/2" HOSE, 90 DEG

$18.99

$

Usually ships in 2-12 days

0

5

Simplicity 5023268SM

CLAMP, HOSE

$3.49

$

Usually ships in 2-12 days

0

6

Simplicity 5103631YP

ROD, DUMP VALVE, IS600, CZ

$15.99

$

Usually ships in 2-12 days

0

7

Simplicity 5050857X9P5YP

HOSE, Hydro

$12.99

$

In Stock, only 2 left!

0

8

Simplicity 5104055YP

E-CLIP, Brake Arm

$4.99

$

Usually ships in 2-12 days

0

9

Simplicity 5103750YP

ARM, Brake

$13.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025011X24SM

CAPSCREW, Hex Head, 5/16-18 x 3

$3.99

$

Usually ships in 2-12 days

0

11

Simplicity 703873

CAPSCREW, Hex Head, 3/8-16 X 2 1/2

$4.49

$

In Stock, only 3 left!

0

12

Simplicity 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 703590

WASHER, .406

$3.99

$

In Stock, Qty 10

0

14

See Pump Drive Group

$

$

Not available

15

Simplicity 703233

NUT, Serrated, Flange, 1/4-20, GR5

$4.49

$

In Stock, Qty 6

0

16

Simplicity 5025010X6SM

CAPSCREW, Hex Head, 1/4-20 x 3/4 (stiffener to top of cover)

$3.99

$

In Stock, Qty 20+

0

17

Simplicity 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 703463

NUT, Flange Nylock , 1/4-20

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 5025288YP

WASHER, 1/4

$3.99

$

In Stock, only 4 left!

0

20

Simplicity 5025211SM

PIN, Hair

$3.99

$

In Stock, only 1 left!

0

21

Simplicity 703590

WASHER, .406

$3.99

$

In Stock, Qty 10

0

22

Simplicity 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0
