Simplicity 5901744 - Simplicity Contender XT 61" Zero-Turn Mower, 24hp Briggs & Stratton Deck Lift Group Parts Lookup with Diagrams

0010

Simplicity 5104262YP

PEDAL, Rubber

$10.99

$

Usually ships in 2-12 days

0030

Simplicity 5020095SM

GREASE FITTING, 1/4-28 STRAIGHT

$3.99

$

In Stock, only 3 left!

0040

Simplicity 5020441SM

COLLAR, 5/8" SPLIT

$14.99

$

In Stock, Qty 20+

0050

Simplicity 5010213YP

SPRING-EXT, .740 ODX2.025LGX.072WR, BLK

$14.99

$

Usually ships in 2-12 days

0060

Simplicity 5025429YP

EYEBOLT, 3/8-16 X 4, 2.13THRD, .75EYE, C

$

Not available 

0070

Simplicity 5021880SM

GRIP, FOAM, .475 X 4.35 X .095

$5.99

$

Usually ships in 2-12 days

0090

Simplicity 5023343SM

BUSHING, 1.00 X 1.13 X 1.38, PLASTIC

$6.49

$

Usually ships in 2-12 days

0100

Simplicity 5023355SM

SPRING-EXT, 1.00 ODX13.25LGX.177WR, BLK

$49.99

$

In Stock, only 1 left!

0110

Simplicity 5023498SM

PIN, HITCH, 1/2 X 2.00 OAL, YP

$8.99

$

In Stock, only 2 left!

0130

Simplicity 5025013X22SM

CAPSCREW, Hex Head, 3/8-16 X 2-3/4

$4.49

$

In Stock, only 3 left!

0150

Simplicity 5025017X18SM

BOLT, 1/2-13 X 2-1/4" GD5 YZ

$5.99

$

Usually ships in 2-12 days

0170

Snapper 5025018X14YP

BOLT, 1/2-20 X 1-3/4 GD8 CZ

(Superseded to 5025018X14SM) 

$

Not available 

0190

Simplicity 5025089SM

NUT, Hex Jam, 1/2-20

$3.99

$

In Stock, Qty 20+

0200

Simplicity 5025098SM

NUT, Hex, Nylon Lock, 1/2-20

$5.99

$

In Stock, only 2 left!

0250

Simplicity 703590

WASHER, .406

$3.99

$

In Stock, Qty 12

0270

Simplicity 5025212X4SM

PIN, CLEVIS, 1/4 X 1/2, PLATED

$3.99

$

Usually ships in 2-12 days

0300

Simplicity 5025443SM

BOLT, 3/8-16 x 3/4, GD5, YZ WITH PATCH

$3.49

$

Usually ships in 2-12 days

0370

Simplicity 5100548SM

WASHER, .390 X 1.50 X .109, YZ

$4.49

$

Usually ships in 2-12 days

0380

Simplicity 5100634SM

BLOCK

$7.49

$

Usually ships in 2-12 days

0390

Simplicity 5410213AYP

WELD, PULLER BAR, IS700Z - BLK

$148.99

$

Usually ships in 2-12 days

0420

Simplicity 5105172YP

ASSM, DECK COMP LINK, LH-CAST

$84.99

$

Usually ships in 2-12 days

0430

Simplicity 5105173YP

ASSM, DECK COMP LINK, RH-CAST

$77.99

$

Usually ships in 2-12 days

0440

Simplicity 5401671AYP

WELD, DECK LIFT LEVER, LH - BLK

$61.99

$

Usually ships in 2-12 days

0450

Simplicity 5401672AYP

WELD, DECK LIFT LEVER, RH - BLK

$67.99

$

Usually ships in 2-12 days

0460

Simplicity 84003464

SHAFT ASSEMBLY

$267.99

$

Usually ships in 2-12 days

0470

Simplicity 5403925AYP

PLATE, Pivot

$8.49

$

Usually ships in 2-12 days

0570

Simplicity 5025017X16YP

CAPSCREW, Hex Head, 1/2-13 x 2

$4.49

$

In Stock, only 1 left!

0580

Simplicity 5103703YP

ROD, SUSPENSION LINK, IS700, CZ

$19.99

$

Usually ships in 2-12 days

0590

Simplicity 1702779SM

JOINT-BALL .500-20 THD .500ID

$28.99

$

In Stock, Qty 14

0600

Simplicity 5103758YP

ROD, DECK LIFT, 19.25, CZ

$37.99

$

Usually ships in 2-12 days

0610

Simplicity 5410317AYP

WELD, Rod, Deck Lift - BLK

$33.99

$

Usually ships in 2-12 days

0620

Simplicity 5104133YP

ARM LINK

$35.99

$

Usually ships in 2-12 days

0630

Simplicity 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0640

Simplicity 703338

CAPSCREW, Hex Head, 1/4-20 x 5/8, GR5

$3.99

$

Usually ships in 2-12 days

0650

Simplicity 5025288YP

WASHER, 1/4

$3.99

$

In Stock, only 4 left!

0660

Simplicity 703463

NUT, Flange Nylock , 1/4-20

$4.49

$

In Stock, Qty 20+

0680

Simplicity 5025158SM

WASHER, 1/2

$3.99

$

In Stock, Qty 14

0700

Simplicity 5025396SM

NUT, Hex Flange, 1/2-13

$3.49

$

In Stock, only 2 left!

0710

Simplicity 5025128SM

NUT, Hex, Serrated Flange, 3/8-16 (S/N 616 & up)

$3.49

$

In Stock, only 2 left!

0720

Simplicity 5025301SM

NUT, Hex, Jam, 1/2-13

$3.49

$

In Stock, only 1 left!

0740

Simplicity 5045023SM

SPACER, .52 X 1.00 X .44, CZ

$6.49

$

Usually ships in 2-12 days

0750

Simplicity 5020870SM

INSERT, BEARING

$5.49

$

In Stock, Qty 12

0760

Simplicity 5061569AYP

PEDAL, FOOT - BLK

$40.99

$

Usually ships in 2-12 days

0770

Simplicity 5025013X10SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/4

$3.99

$

In Stock, Qty 12

0780

Simplicity 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

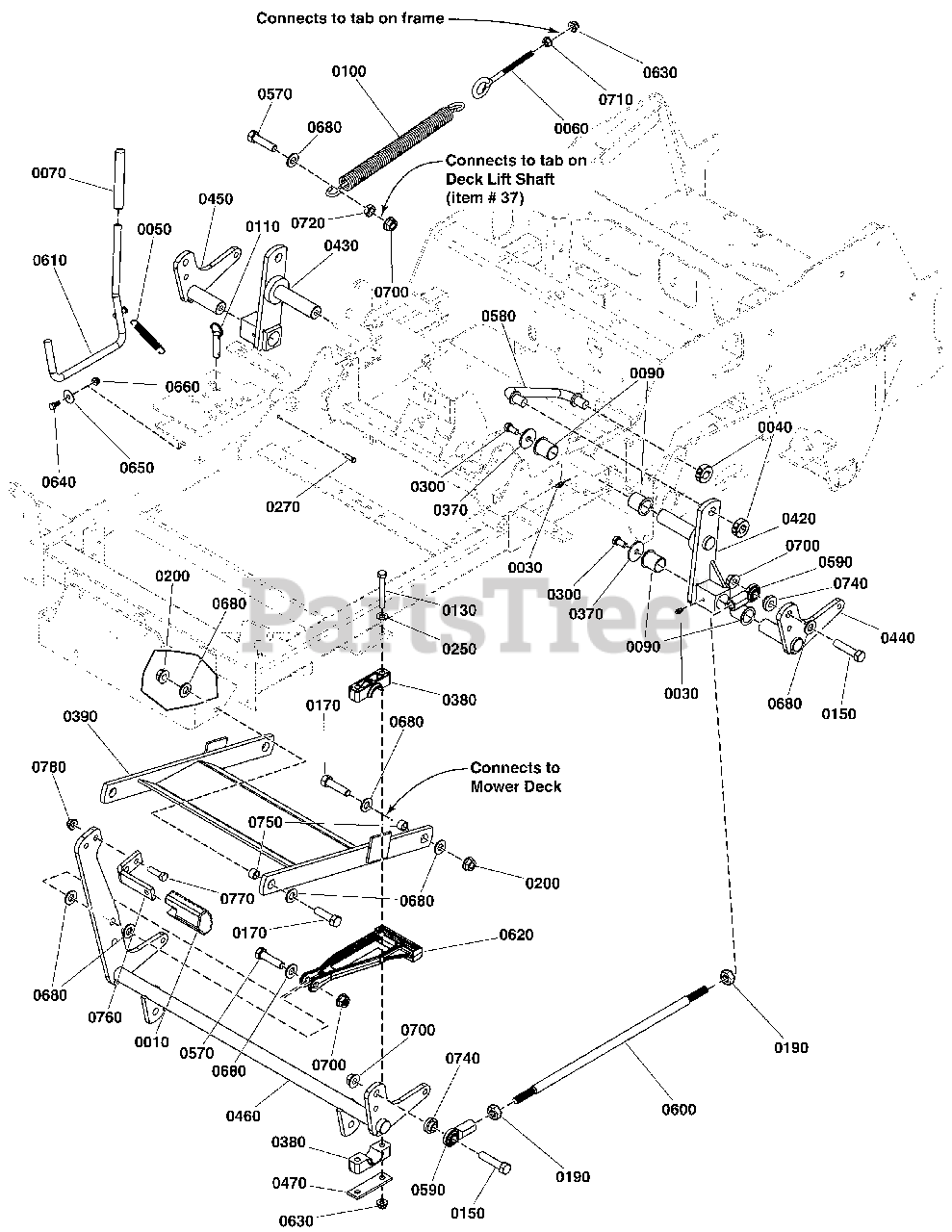

5901744 - Simplicity Contender XT 61" Zero-Turn Mower, 24hp Briggs & Stratton Deck Lift Group Parts Diagram

Deck Lift Group Parts Diagram
