5901743 - Simplicity Contender XT 52" Zero-Turn Mower, 24hp Briggs & Stratton Wheel and Tire Group Parts Diagram

Contender XT 52" Zero-Turn Mower, 24hp Briggs & Stratton

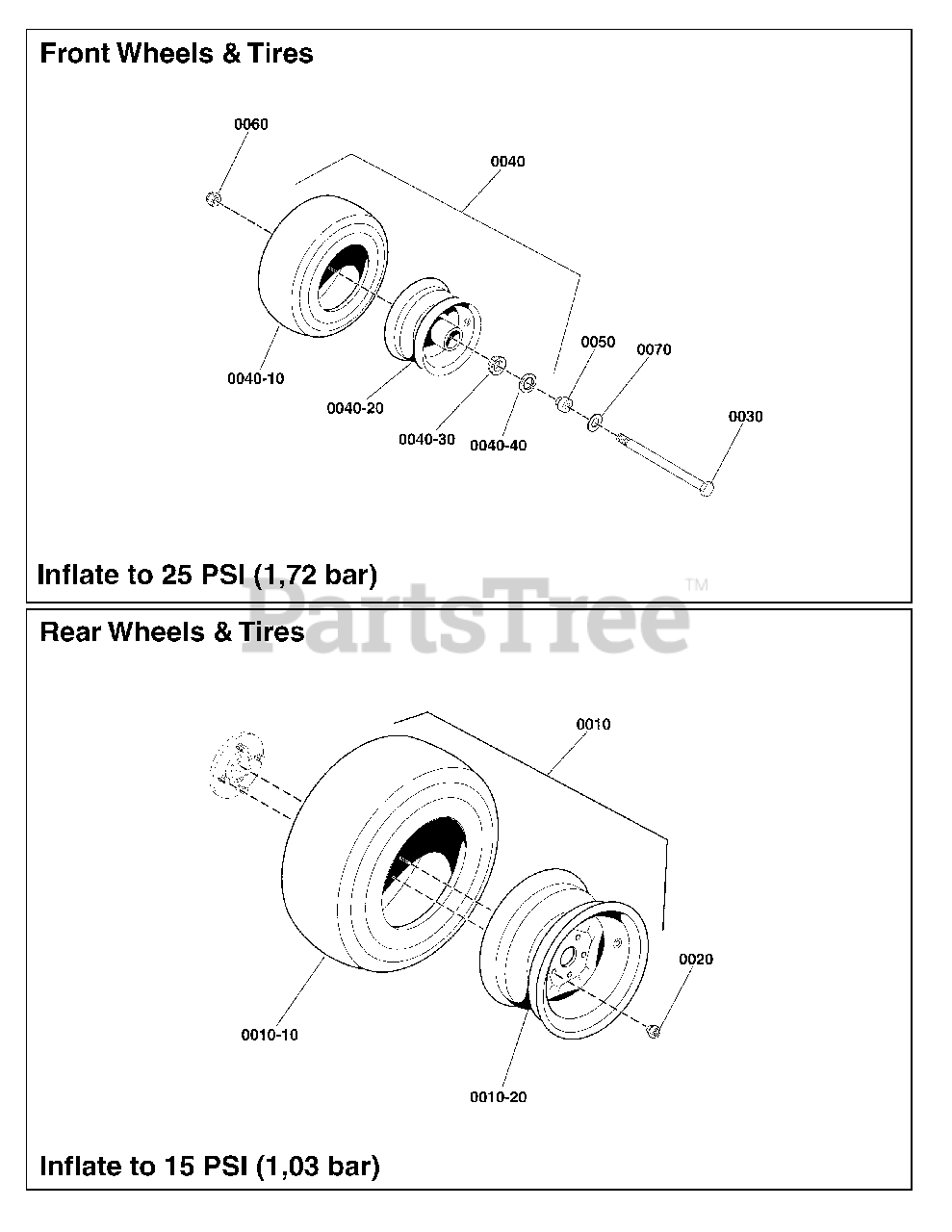

Wheel and Tire Group Parts Diagram

  • Title

0010

Simplicity 5103622YP

TIRE/WHEEL ASM, 22X11-10, TURF MASTER

$480.99

$

In Stock, only 1 left!

0

0010-10

Simplicity 5023369X2SM

TIRE, 22 X 11.00-10, 4 PLY
(Superseded to 5023369SM)

Note: (One per tire)

$426.99

$

Usually ships in 2-12 days

0

0010-20

Simplicity 5103622X1YP

WHEEL, 10 X 7 4/4, 0" OFFSET

Note: (One per tire)

$259.99

$

Usually ships in 2-12 days

0

0020

Simplicity 5020601SM

NUT, Lug, 1/2-20

Note: (Torque tire lug nut to 90 ft-lbs (122 Nm)

$3.49

$

In Stock, Qty 20+

0

0030

Simplicity 5025017X64SM

BOLT, 1/2-13 X 8 GD5 YZ

$10.99

$

In Stock, only 1 left!

0

0040

Simplicity 5022631SSM

WHEEL & TIRE ASSEMBLY, Front, 13 x 5.0 x 6, Complete (Includes Ref 2 thru 5)

$168.99

$

Usually ships in 2-12 days

0

0040-10

Simplicity 5022029X1SM

TIRE, Front, 13 x 5.0 x 6

Note: (One per tire)

$

$

Not available

0040-20

Simplicity 5022631SX1SM

WHEEL ASSEMBLY, Front, for 13 x 5.0 x 6 Tires, Complete

Note: (One per tire)

$102.99

$

Usually ships in 2-12 days

0

0040-30

Simplicity 5022631SX2SM

BEARING, TAPERED CONE

Note: (Two per tire)

$12.99

$

In Stock, Qty 20+

0

0040-40

Simplicity 5022631SX3SM

SEAL, GREASE

Note: (Two per tire)

$9.99

$

In Stock, Qty 20+

0

0050

Simplicity 5047103SM

ADAPTER, Caster Wheel (2 per tire) (for serial no. 201 & up)

Note: (Two per tire)

$10.99

$

In Stock, Qty 20+

0

0060

Simplicity 5025396SM

NUT, Hex Flange, 1/2-13

$3.49

$

In Stock, only 2 left!

0

0070

Simplicity 5025158SM

WASHER, 1/2

$3.99

$

In Stock, Qty 13

0
