5901743 - Simplicity Contender XT 52" Zero-Turn Mower, 24hp Briggs & Stratton Motion Control Group - Handles & Dampeners Parts Diagram

Contender XT 52" Zero-Turn Mower, 24hp Briggs & Stratton

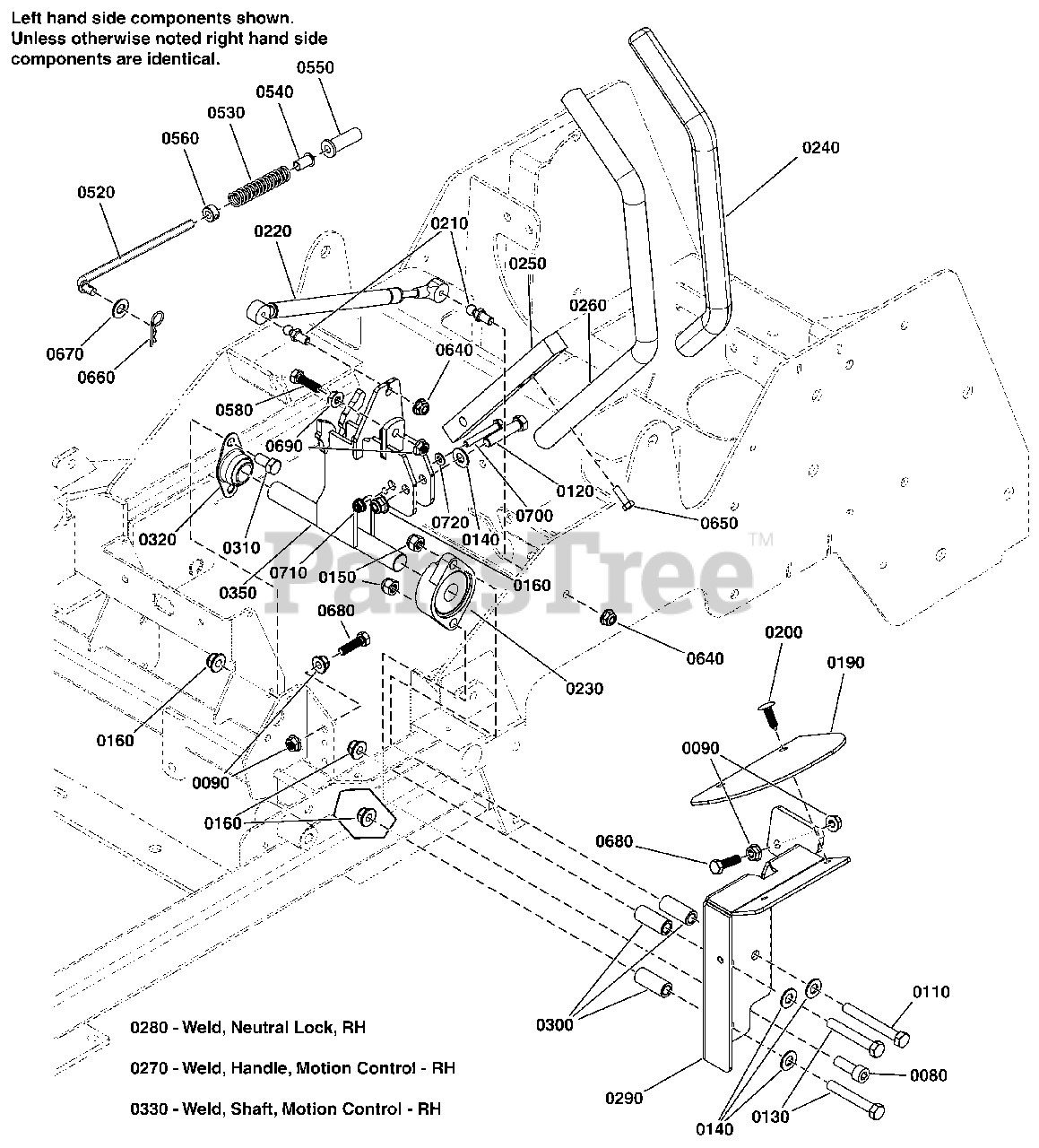

Motion Control Group - Handles & Dampeners Parts Diagram

  • Title

0080

Simplicity 5025327YP

BOLT, 3/8-16 X 1-1/4 SHCS

$

$

Not available

0090

Simplicity 5025127SM

NUT, Hex Serrated Flange, 5/16-18,

$3.49

$

In Stock, only 1 left!

0

0110

Simplicity 5025013X24SM

CAPSCREW, Hex Head, 3/8-16 x 3

$4.49

$

In Stock, Qty 5

0

0120

Simplicity 5025055X14SM

CAPSCREW, Hex Head, Flange Lock Taptite, 5/16-18 X 1-3/4

$3.99

$

Usually ships in 2-12 days

0

0130

Simplicity 703873

CAPSCREW, Hex Head, 3/8-16 X 2 1/2
(Superseded to 84007037)

$2.99

$

In Stock, only 2 left!

0

0140

Simplicity 703590

WASHER, .406

$3.99

$

In Stock, Qty 20+

0

0150

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 9

0

0160

Simplicity 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

0190

Simplicity 5100948SM

GUARD, RUBBER MOT CTRS - IS500Z

$8.99

$

Usually ships in 2-12 days

0

0200

Simplicity 5025431SM

PUSH RIVET (TREE TYPE), BLACK

$4.49

$

Usually ships in 2-12 days

0

0210

Simplicity 5100941SM

BALL STUD, 5/16 X .50, (# PC-477-2)

$4.49

$

In Stock, Qty 12

0

0220

Simplicity 5100940SM

DAMPENER, CONTROL, #(P6709/P3610)

$59.99

$

In Stock, only 2 left!

0

0230

Simplicity 5021499SM

BEARING, FLANGE

$57.99

$

In Stock, only 1 left!

0

0240

Simplicity 5104722YP

GRIP, FOAM, 1" ID, 16" LONG

$13.99

$

In Stock, only 3 left!

0

0250

Simplicity 5047004AYP

MOUNT, CONTROL ARM - BLK

Note: (9.0" Total Length, 4 Adjustment Holes)

$38.99

$

Usually ships in 2-12 days

0

0260

Simplicity 5414431AYP

WELD,HANDLE MOTION CNTRL,19.0,1.0,LH,BLK
(Superseded to 84004629)

$52.99

$

Usually ships in 2-12 days

0

0270

Simplicity 5414432AYP

WELD,HANDLE MOTION CNTRL,19.0,1.0,RH,BLK
(Superseded to 84004630)

$52.99

$

Usually ships in 2-12 days

0

0280

Simplicity 5416051AYP

WELD, NEUTRAL LOCK - RH - BLK

$87.99

$

Usually ships in 2-12 days

0

0290

Simplicity 5416052AYP

WELD, NEUTRAL LOCK - LH - BLK

$87.99

$

Usually ships in 2-12 days

0

0300

Simplicity 5048264SM

SPACER, .39 X .63 X 1.50, CZ

$6.49

$

Usually ships in 2-12 days

0

0310

Simplicity 5025013X6SM

CAPSCREW, Hex Head, 3/8-16 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0320

Simplicity 5021098SM

BEARING, Flange, Bronze, 3/4"

$14.99

$

In Stock, only 2 left!

0

0330

Simplicity 5415891AYP

WELD, SHAFT MOTION CONTROL, RH - BLK

$106.99

$

Usually ships in 2-12 days

0

0350

Simplicity 5415890AYP

WELD, SHAFT MOTION CONTROL, LH - BLK

$110.99

$

Usually ships in 2-12 days

0

0520

Simplicity 5100947SM

ROD, NEUTRAL RETURN, CZ

$8.49

$

Usually ships in 2-12 days

0

0530

Simplicity 5022645SM

SPRING, REVERSE RETURN

$9.99

$

Usually ships in 2-12 days

0

0540

Simplicity 5023260SM

BUSHING, FLANGE 3/8ID X 7/8 LONG

$6.49

$

In Stock, only 1 left!

0

0550

Simplicity 5104375YP

FLANGED BUSHING, 3/8IDX.63ODX.8125FL

$5.99

$

Usually ships in 2-12 days

0

0560

Simplicity 5010546SM

COLLAR, 3/8" SET

$5.99

$

In Stock, only 2 left!

0

0580

Simplicity 5025010X14SM

CAPSCREW, Hex Head, 1/4-20 X 1-3/4

$3.99

$

Usually ships in 2-12 days

0

0640

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0650

Simplicity 703354

SCREW, Flange, Whiz-Lock, 5/16-18 X 3/4

$5.49

$

In Stock, Qty 13

0

0660

Simplicity 5025210YP

PIN, HAIR, .0915 X 1-7/8

$3.99

$

In Stock, only 3 left!

0

0670

Simplicity 703590

WASHER, .406

$3.99

$

In Stock, Qty 20+

0

0680

Simplicity 5025055X14SM

CAPSCREW, Hex Head, Flange Lock Taptite, 5/16-18 X 1-3/4

$3.99

$

Usually ships in 2-12 days

0

0690

Simplicity 5025139SM

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)

$3.49

$

In Stock, Qty 5

0

0700

Simplicity 5025010X14SM

CAPSCREW, Hex Head, 1/4-20 X 1-3/4

$3.99

$

Usually ships in 2-12 days

0

0710

Simplicity 703463

NUT, Nylock Flanged, 1/4-20
(Superseded to 5025391FS)

$4.49

$

In Stock, only 3 left!

0

0720

Simplicity 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0
