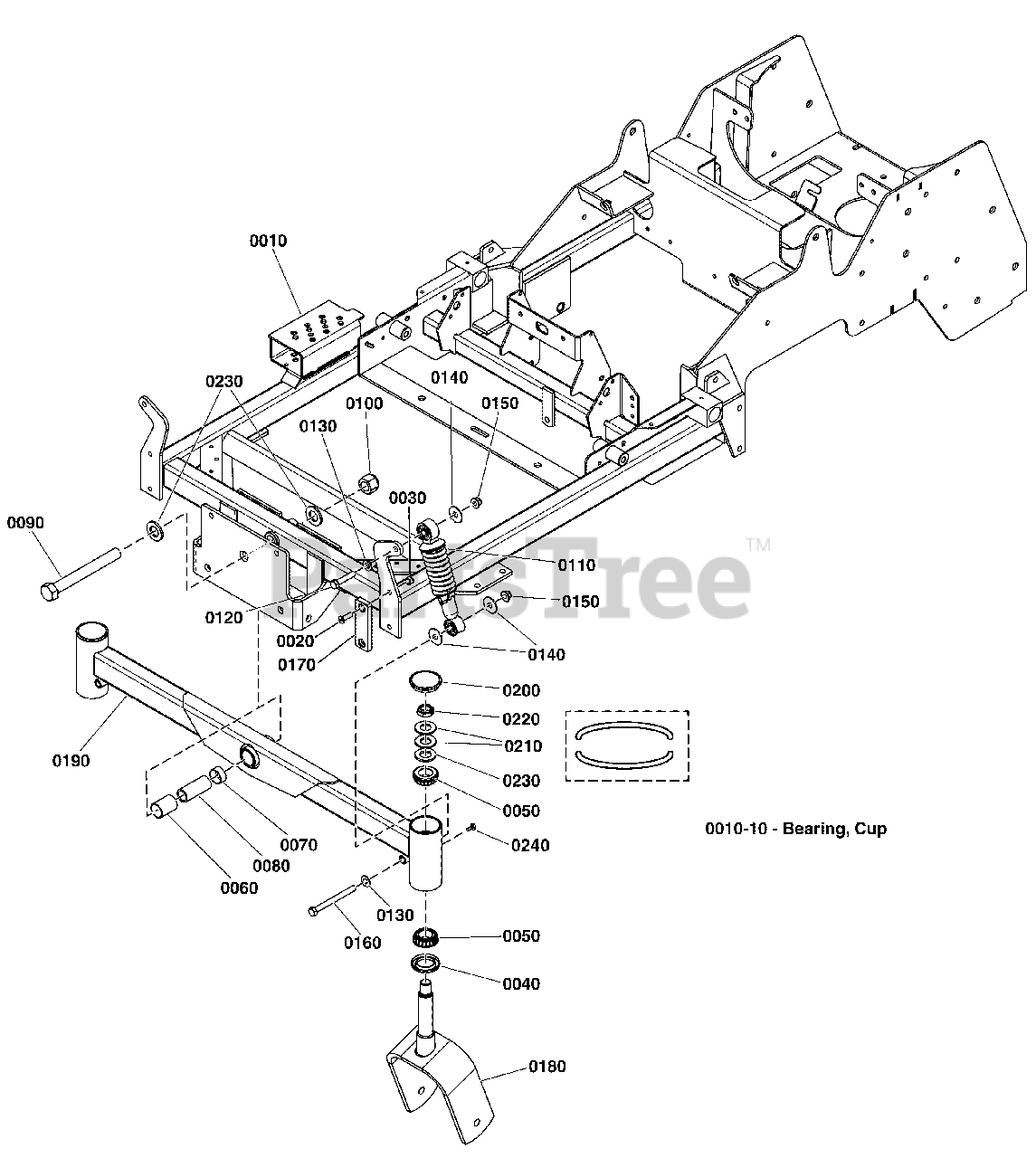

5901743 - Simplicity Contender XT 52" Zero-Turn Mower, 24hp Briggs & Stratton Main Frame & Front Suspension Group Parts Diagram

Contender XT 52" Zero-Turn Mower, 24hp Briggs & Stratton

Main Frame & Front Suspension Group Parts Diagram

  • Title

0010

WELD, MAIN FRAME, CHAMPION XT - ORG

Note: (See Footnote)

$

$

Not available

0010-10

Simplicity 5020883SM

CUP, BEARING (SV)

Note: (SV)

$9.49

$

In Stock, only 3 left!

0

0020

Simplicity 5025594YP

SCREW, Phillips Head, 5/16-18 X 1

$3.99

$

Usually ships in 2-12 days

0

0030

Simplicity 703902

NUT, Hex Nylock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

0040

Simplicity 5021072SM

SEAL, GREASE

$7.49

$

In Stock, only 3 left!

0

0050

Simplicity 5020884SM

BEARING, TAPPERD ROLLER, 1"

$25.99

$

In Stock, Qty 20+

0

0060

Simplicity 5022852SM

PIVOT BEARING, 1.00" X 1.125" OD X 1.50"

$33.99

$

In Stock, Qty 16

0

0070

Simplicity 5100358SM

PIVOT BEARING, 1.00" X 1.125" OD X .50"

$18.99

$

In Stock, Qty 14

0

0080

Simplicity 5047489SM

SPACER, .75 X 1.00 X 2.38

$35.99

$

In Stock, Qty 13

0

0090

Simplicity 5025265X52SM

BOLT, 3/4-16 X 6-1/2 YZ GD5

$15.99

$

In Stock, Qty 7

0

0100

Simplicity 5025284SM

NUT, Hex, Nylon Lock, 3/4-16

$3.49

$

In Stock, only 3 left!

0

0110

Simplicity 5023483SM

SHOCK & SPRING ASSEMBLY

$55.99

$

In Stock, Qty 15

0

0120

Simplicity 5025013X14SM

CAPSCREW, Hex Head, 3/8-16 X 1-3/4

$3.99

$

In Stock, only 2 left!

0

0130

Simplicity 703590

WASHER, .406

$3.99

$

In Stock, Qty 19

0

0140

Simplicity 5025165SM

WASHER, Fender, 3/8

$3.99

$

In Stock, only 2 left!

0

0150

Simplicity 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

0160

Simplicity 5025013X32SM

CAPSCREW, Hex Head, 3/8-16 x 4

$3.99

$

In Stock, Qty 11

0

0170

Simplicity 5102702YP

PAD, FRICTION - 1.25 X 4.00

$6.99

$

Usually ships in 2-12 days

0

0180

Simplicity 5404838CYP

WELD, CASTER YOKE - ORG

$170.99

$

Usually ships in 2-12 days

0

0190

Simplicity 84001952

WELD, FRONT PIVOT - ORG

$253.99

$

Usually ships in 2-12 days

0

0200

Simplicity 5102929YP

CAP, LOW PROFILE, STEEL

$9.99

$

In Stock, Qty 5

0

0210

Simplicity 5025449SM

WASHER, BELLEVILLE - 1.500 X .755

$4.99

$

Usually ships in 2-12 days

0

0220

Simplicity 5025448SM

NUT, 3/4-16, HEX JAM NYLON LOCK

$3.49

$

In Stock, Qty 20+

0

0230

Simplicity 5025160SM

WASHER, 3/4" SAE

$3.99

$

In Stock, Qty 5

0

0240

Simplicity 5025457SM

BOLT, 1/4-28 X 1/2, GD5 YZ

$3.99

$

In Stock, only 3 left!

0
