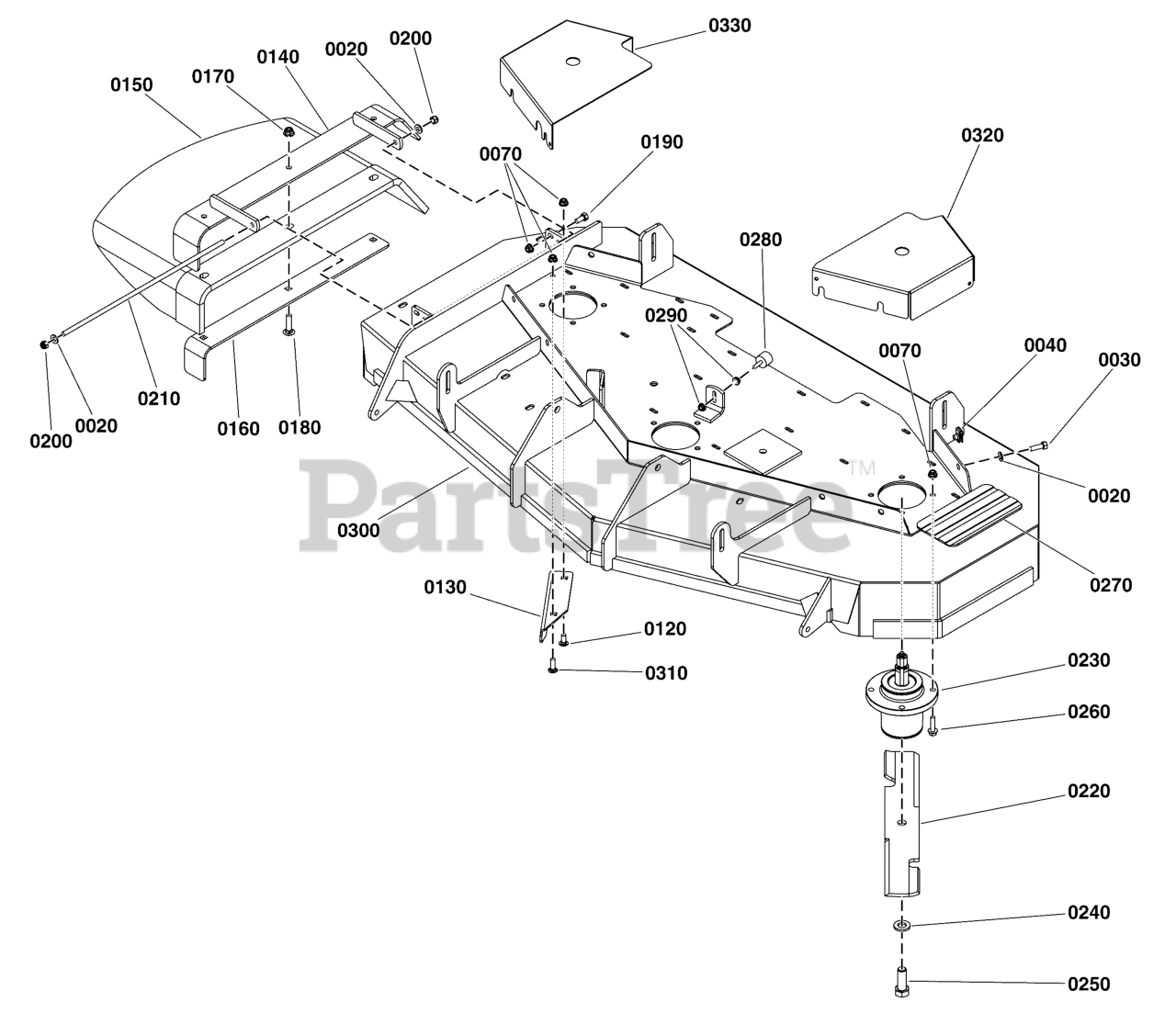

5901743 - Simplicity Contender XT 52" Zero-Turn Mower, 24hp Briggs & Stratton 52" Mower Deck Group - Housing, Covers, Spindles & Blades Parts Diagram

Contender XT 52" Zero-Turn Mower, 24hp Briggs & Stratton

52" Mower Deck Group - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

0020

Simplicity 703302

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 20+

0

0030

Simplicity 703585

CAPSCREW, Hex Head, 5/16-18 x 1

$4.99

$

In Stock, only 1 left!

0

0040

Simplicity 5022308SM

CLIP, BODY , 5/16-18 FOR 7 GA.

$5.99

$

In Stock, only 2 left!

0

0070

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0120

Simplicity 5025145X6SM

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ

$3.99

$

In Stock, Qty 5

0

0130

Simplicity 5405557YP

PLATE, Deflector

$21.99

$

In Stock, only 1 left!

0

0140

Simplicity 5413400AYP

WELD, MOUNT, DISCHARGE CHUTE - BLK

$66.99

$

Usually ships in 2-12 days

0

0150

Simplicity 5413500YP

CHUTE, RUBBER DISCHARGE (5104442)

$231.99

$

Usually ships in 2-12 days

0

0160

Simplicity 5413398AYP

SUPPORT, DISCHARGE CHUTE - BLK

$32.99

$

Usually ships in 2-12 days

0

0170

Simplicity 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

0180

Simplicity 5025146X12YP

BOLT, Carriage, 3/8-16 X 1 1/2, GR5

$3.99

$

Usually ships in 2-12 days

0

0190

Simplicity 5025011X6SM

CAPSCREW, Hex Head, 5/16-18 x 3/4

$3.99

$

In Stock, only 4 left!

0

0200

Simplicity 5025045SM

NUT, Hex Lock, Nylon, 5/16-24

$3.49

$

In Stock, Qty 11

0

0210

Simplicity 5061300SM

MOUNT, Chute

$13.99

$

In Stock, only 1 left!

0

0220

Simplicity 5101756SYP

BLADE, 18 X .25 X 2.5, 1 X 3.5 (SET OF 3)

$

$

Not available

0230

Simplicity 5061095SM

SPINDLE ASSEMBLY, Complete (See Spindle Service Parts group)

$222.99

$

In Stock, only 1 left!

0

0240

Simplicity 5025477SM

WASHER, Blade Bolt, 9/16"

$3.99

$

In Stock, Qty 9

0

0250

Simplicity 770136

BOLT, 5/8-11 X 1 3/4, GR 8

Note: (Torque blade mounting bolt to 120 ft-lbs (163 Nm)

$4.49

$

In Stock, Qty 20+

0

0260

Simplicity 770137

BOLT, Flange, 3/8-16 X 1 1/4

Note: (Torque spindle mounting bolt to 30 ft-lbs (41 Nm)

$4.49

$

In Stock, Qty 20+

0

0270

Simplicity 5101004SM

SAFETY WALK, 4.00 X 7.50

$9.49

$

In Stock, only 1 left!

0

0280

Simplicity 5413403AYP

WELD, MOUNT, DISCHARGE CHUTE - BLK

$

$

Not available

0290

Simplicity 5105237YP

BUMPER, RUBBER, 1/4-20 X 7/8" STUD

$6.99

$

Usually ships in 2-12 days

0

0300

Simplicity 5601186

DECK SHELL W/ DECALS, CNTDR XT-52

$

$

Currently unavailable

0310

Simplicity 5025145X8SM

BOLT, 5/16-18 X 1, CARRIAGE YZ

$3.99

$

In Stock, Qty 9

0

0320

Simplicity 84003150

GUARD, Belt

Note: Left

$41.99

$

Usually ships in 2-12 days

0

0330

Simplicity 84003151

GUARD, Belt

Note: Right

$37.99

$

Usually ships in 2-12 days

0
