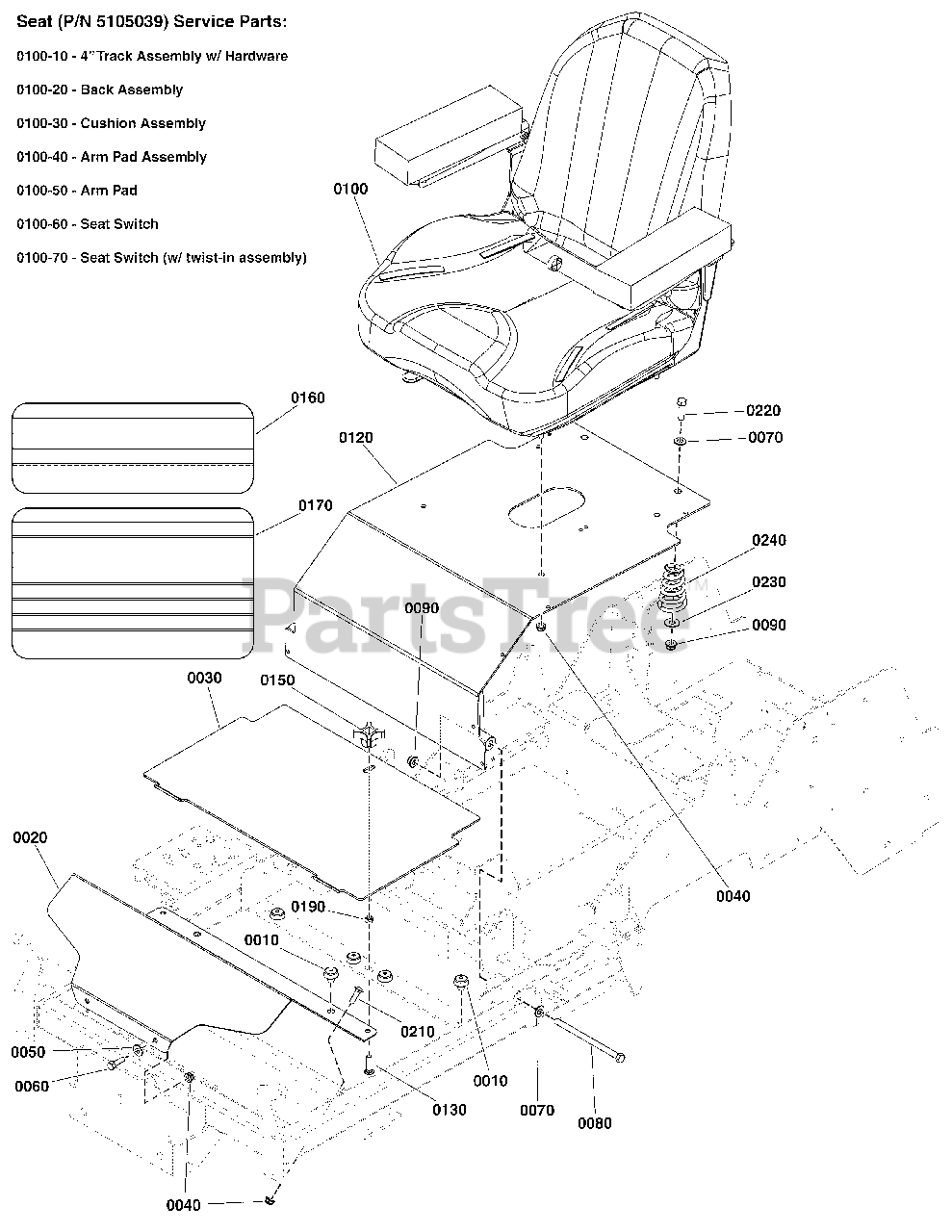

5901742 - Simplicity Contender XT 48" Zero-Turn Mower, 24hp Briggs & Stratton Seat Mount & Floor Group Parts Diagram

Contender XT 48" Zero-Turn Mower, 24hp Briggs & Stratton

Seat Mount & Floor Group Parts Diagram

  • Title

0010

Simplicity 197546GS

MOUNT, Vibration

$7.99

$

In Stock, only 2 left!

0

0020

Simplicity 5410257CYP

PLATE, FLOOR PAN, RIDGID IS600Z - ORG

$139.99

$

Usually ships in 2-12 days

0

0030

Simplicity 5410256CYP

PLATE, FLOOR PAN, REMOVABLE. IS600 - ORG

$76.99

$

Usually ships in 2-12 days

0

0040

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0050

Simplicity 5025292SM

WASHER, 5/16" GD.9 FLAT

$3.99

$

In Stock, Qty 20+

0

0060

Simplicity 703585

CAPSCREW, Hex Head, 5/16-18 x 1

$4.99

$

In Stock, only 1 left!

0

0070

Simplicity 703590

WASHER, .406

$3.99

$

In Stock, Qty 12

0

0080

Simplicity 5025013X48SM

CAPSCREW, Hex Hd, 3/8-16 x 6

$5.99

$

In Stock, Qty 20+

0

0090

Simplicity 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

0100

Simplicity 5105039YP

SEAT, 907 WITH ARM RESTS W/SWITCH
(Superseded to 84003662)

$751.99

$

Usually ships in 2-12 days

0

0100-10

Simplicity 5104741X1YP

4" SL TRACK SET - 9" FLAT - W/HDWR

Note: (SV)

$158.99

$

Usually ships in 2-12 days

0

0100-20

Simplicity 5104741X3YP

BACK ASSEMBLY FOR 907

Note: (SV)

$283.99

$

Usually ships in 2-12 days

0

0100-30

Simplicity 5104741X4YP

CUSHION ASSEMBLY FOR 907

Note: (SV)

$

$

Not available

0100-40

Simplicity 5104681X3YP

LEFT AND RIGHT HAND ARM ASSEMBLIES, CI3 SEAT

Note: (SV)

$433.99

$

Usually ships in 2-12 days

0

0100-50

Simplicity 5104681X4YP

PAD

Note: (SV)

$93.99

$

Usually ships in 2-12 days

0

0100-60

Simplicity 7023354YP

SWITCH, Seat, Push Button (NC)

Note: (SV)

$12.99

$

In Stock, Qty 20+

0

0100-70

Simplicity 5100541YP

SWITCH, NC, W/ TWIST-IN BASE

Note: (SV)

$20.99

$

In Stock, only 1 left!

0

0120

Simplicity 5601144

ASSM, SEAT PLATE W/ DECALS

$

$

Currently unavailable

0130

Simplicity 5025145X10YP

BOLT, 5/16-18 X 1-1/4, CARRIAGE, GD5, CZ

$3.49

$

Usually ships in 2-12 days

0

0150

Simplicity 1670578SM

KNOB, Internal Thread, 5/16 (Used Only on 24 in. Models)

$13.99

$

Usually ships in 2-12 days

0

0160

Simplicity 5101374YP

SAFETY WALK

$18.99

$

In Stock, only 1 left!

0

0170

Simplicity 5101333YP

SAFETY WALK, FLOOR PLATE, S50X, 10X17.13

$37.99

$

Usually ships in 2-12 days

0

0190

Simplicity 703164

NUT, Hex Center Lock, 5/16-18, GRB

$3.49

$

In Stock, Qty 20+

0

0210

Simplicity 5025145X8SM

BOLT, 5/16-18 X 1, CARRIAGE YZ

$3.99

$

In Stock, Qty 9

0

0220

Simplicity 5025013X10SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/4

$3.99

$

In Stock, Qty 12

0

0230

Simplicity 5025401YP

WASHER, 3/8 USS

$3.99

$

Usually ships in 2-12 days

0

0240

Simplicity 1717051SM

SPRING, Seat

$13.99

$

In Stock, Qty 20+

0
