5901742 - Simplicity Contender XT 48" Zero-Turn Mower, 24hp Briggs & Stratton Hydraulic Group Parts Diagram

Contender XT 48" Zero-Turn Mower, 24hp Briggs & Stratton

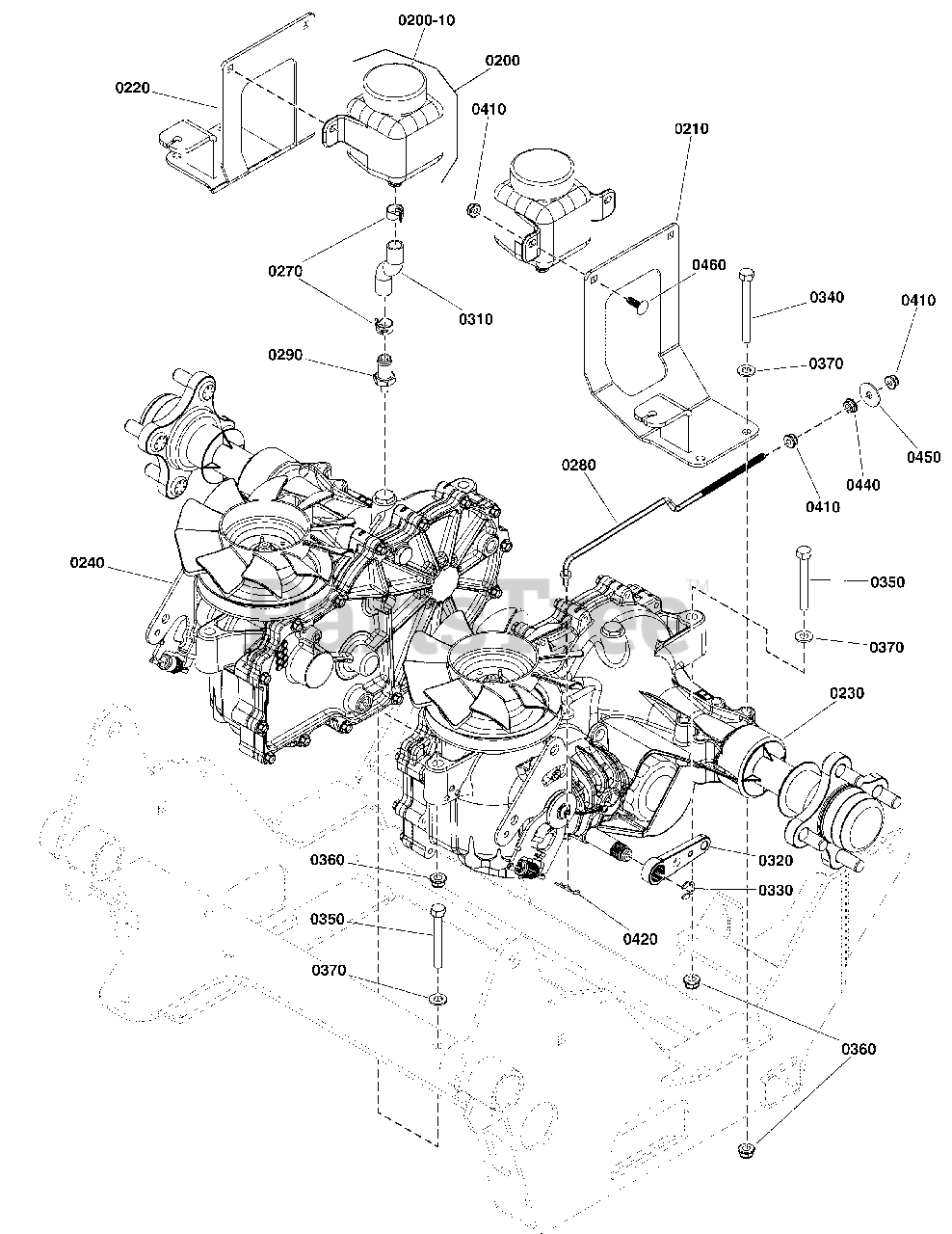

Hydraulic Group Parts Diagram

  • Title

0200

Simplicity 5100473SM

RESERVOIR, Hydro

$40.99

$

Usually ships in 2-12 days

0

0200-10

Simplicity 5100778X1YP

RESERVIOR CAP (SV)

$21.99

$

In Stock, only 1 left!

0

0210

Simplicity 5409905AYP

WELD, MOUNT, TANK, HYD, LH, IS600 - BLK

$53.99

$

Usually ships in 2-12 days

0

0220

Simplicity 5409909AYP

WELD, MOUNT, TANK, HYD, RH, IS600 - BLK

$43.99

$

Usually ships in 2-12 days

0

0230

Simplicity 5105085YP

TRANSALXE, ZT3200, LH, ZJ-KYEF-8T7C-1GRX
(Superseded to 84006574)

$1280.99

$

Usually ships in 2-12 days

0

0240

Simplicity 5105086YP

TRANSALXE, ZT3200, RH, ZJ-GYEF8T7B-1GRX
(Superseded to 84006573)

$1280.99

$

Usually ships in 2-12 days

0

0270

Simplicity 5023268SM

CLAMP, HOSE

$3.49

$

Usually ships in 2-12 days

0

0280

Simplicity 5103631YP

ROD, DUMP VALVE, IS600, CZ

$15.99

$

Usually ships in 2-12 days

0

0290

Simplicity 5103687YP

FITTING,#6 O-RING-1/2 HOSE BARB,STRAIGHT

$30.99

$

Usually ships in 2-12 days

0

0310

Simplicity 5103774X2P5YP

TUBING, TYGON, .50 ID X 2.50

$9.99

$

Usually ships in 2-12 days

0

0320

Simplicity 5103750YP

ARM, Brake

$13.99

$

Usually ships in 2-12 days

0

0330

Simplicity 5104055YP

E-CLIP, Brake Arm

$4.99

$

Usually ships in 2-12 days

0

0340

Simplicity 5025011X24SM

CAPSCREW, Hex Head, 5/16-18 x 3

$3.99

$

Usually ships in 2-12 days

0

0350

Simplicity 5025011X20SM

CAPSCREW, Hex Head, 5/16-18 x 2-1/2
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0

0360

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0370

Simplicity 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0410

Simplicity 703233

NUT, Serrated, Flange, 1/4-20, GR5

$4.49

$

In Stock, Qty 9

0

0420

Simplicity 5025211

PIN, HAIR, .0585 X 1-1/8, 1/4 EYE, YZ
(Superseded to 5025211SM)

$3.99

$

In Stock, only 1 left!

0

0440

Simplicity 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0450

Simplicity 5025288YP

WASHER, 1/4

$3.99

$

In Stock, only 4 left!

0

0460

Simplicity 703575

BOLT, 1/4-20 x 3/4

$3.99

$

In Stock, only 1 left!

0
