5901742 - Simplicity Contender XT 48" Zero-Turn Mower, 24hp Briggs & Stratton 48" Mower Deck Group - Pulleys, Belt & Idler Arm Parts Diagram

Contender XT 48" Zero-Turn Mower, 24hp Briggs & Stratton

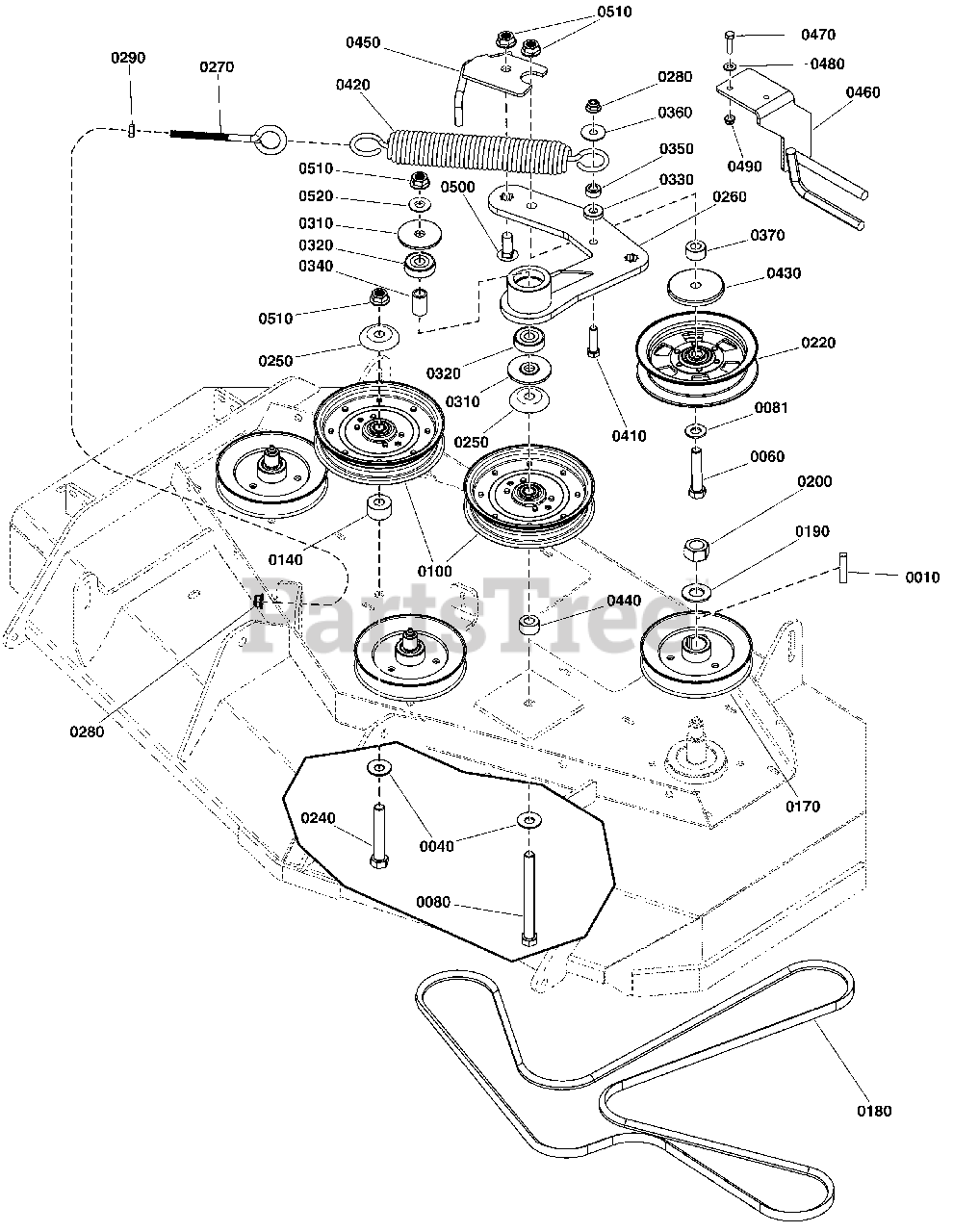

48" Mower Deck Group - Pulleys, Belt & Idler Arm Parts Diagram

  • Title

0010

Simplicity 5050407X10YP

KEY, 1/4 SQ. X 1-1/4

$3.99

$

In Stock, only 4 left!

0

0040

Simplicity 5025158SM

WASHER, 1/2

$3.99

$

In Stock, Qty 12

0

0060

Simplicity 5025017X20SM

BOLT, 1/2-13 X 2-1/2 GD5 YZ

$5.49

$

In Stock, Qty 9

0

0080

Simplicity 5025017X44SM

CAPSCREW, Hex Head, 1/2-13 x 5-1/2

$7.99

$

In Stock, only 3 left!

0

0081

Simplicity 5025158SM

WASHER, 1/2

$3.99

$

In Stock, Qty 12

0

0100

Simplicity 5101794YP

PULLEY, IDLER, 5" OD, 1"FACE, 5.75 FL

$57.99

$

In Stock, only 1 left!

0

0140

Simplicity 5047142SM

SPACER, .52 X 1.25 X .70, PM, CZ

$8.99

$

In Stock, Qty 11

0

0170

Simplicity 5023175SM

PULLEY, 5.540OB X .985ID, SINGLE B-SEC (48" Deck, S/N: 534 & above)

$67.99

$

In Stock, Qty 18

0

0180

Simplicity 5103929YP

BELT, 5V-SEC, 158.90" EL, ARAMID, WRPD, RC

$154.99

$

In Stock, Qty 6

0

0190

Simplicity 770223

WASHER, Belleville, 3/4

$4.49

$

In Stock, only 4 left!

0

0200

Simplicity 5025405SM

NUT, 3/4-16 Hex (Included with Complete Spindle Assembly)

$3.99

$

In Stock, Qty 20+

0

0220

Simplicity 5104716YP

PULLEY,IDLER,BACKSIDE,NOSEAM 6.25ODX.5ID

$59.99

$

In Stock, Qty 14

0

0240

Simplicity 5025017X22SM

BOLT, 1/2-13 X 2-3/4 GD5 YZ

$5.99

$

In Stock, Qty 11

0

0250

Simplicity 5101103SM

SHIELD, PULLEY BEARING, CZ

$10.99

$

In Stock, Qty 20+

0

0260

Simplicity 5415907AYP

WELD, IDLER ARM - BLK

$165.99

$

Usually ships in 2-12 days

0

0270

Simplicity 5023497SM

EYE BOLT, 3/8-16 X 5, 2.88THRD, 1EYE, CZ

$9.49

$

In Stock, only 1 left!

0

0280

Simplicity 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

0290

Simplicity 5025084SM

NUT, Hex, Jam, 3/8-16

$3.49

$

In Stock, Qty 14

0

0310

Simplicity 5104379YP

SPACER, IDLER ARM, 1/2 X 2.25

$8.99

$

In Stock, only 2 left!

0

0320

Simplicity 5104383YP

BEARING, 6203-1/2", SEALED

$9.99

$

In Stock, only 3 left!

0

0330

Simplicity 5044960SM

SPACER, .39ID x 1 OD x 1/4

$5.49

$

In Stock, Qty 7

0

0340

Simplicity 5104456YP

SPACER, .51 X .75 X 1.22, PM, CZ

$4.49

$

In Stock, only 2 left!

0

0350

Simplicity 5044933SM

SPACER, .39 X .75 X .38, PM, CZ

$4.99

$

In Stock, only 2 left!

0

0360

Simplicity 5025165SM

WASHER, Fender, 3/8

$3.99

$

In Stock, only 2 left!

0

0370

Simplicity 5101162YP

SPACER, .52 X 1.00 X .56

$7.49

$

In Stock, Qty 8

0

0410

Simplicity 5025013X12SM

CAPSCREW, Hex Head, 3/8-16 X 1-1/2

$3.99

$

Usually ships in 2-12 days

0

0420

Simplicity 5104166YP

SPRING, EXT, 1.5ODX12.25X.234WIRE BLK

$74.99

$

In Stock, Qty 5

0

0430

Snapper 5105145YP

SHIELD, BEARING, 1/2ID X 2-7/8 OD, CZ

$4.49

$

In Stock, Qty 20+

0

0440

Simplicity 5101162YP

SPACER, .52 X 1.00 X .56

$7.49

$

In Stock, Qty 8

0

0450

Simplicity TBD

The service part is in development.

$

$

Currently unavailable

0460

Simplicity TBD

The service part is in development.

$

$

Currently unavailable

0470

Simplicity 5025010X8SM

BOLT, 1/4-20 X 1", GD

$3.99

$

In Stock, only 2 left!

0

0480

Simplicity 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0490

Simplicity 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0500

Simplicity 5025324X10YP

BOLT, CARRIAGE 1/2-13 X 1-1/4 GD.5

$2.99

$

Usually ships in 2-12 days

0

0510

Simplicity 5025396SM

NUT, Hex Flange, 1/2-13

$3.49

$

In Stock, only 2 left!

0

0520

Simplicity 5025150SM

WASHER, 1/2" USS

$3.99

$

In Stock, only 2 left!

0
