5901594 - Simplicity Cobalt 61" Zero-Turn Mower, 28hp Briggs & Stratton Engine & PTO Group Parts Diagram

Cobalt 61" Zero-Turn Mower, 28hp Briggs & Stratton

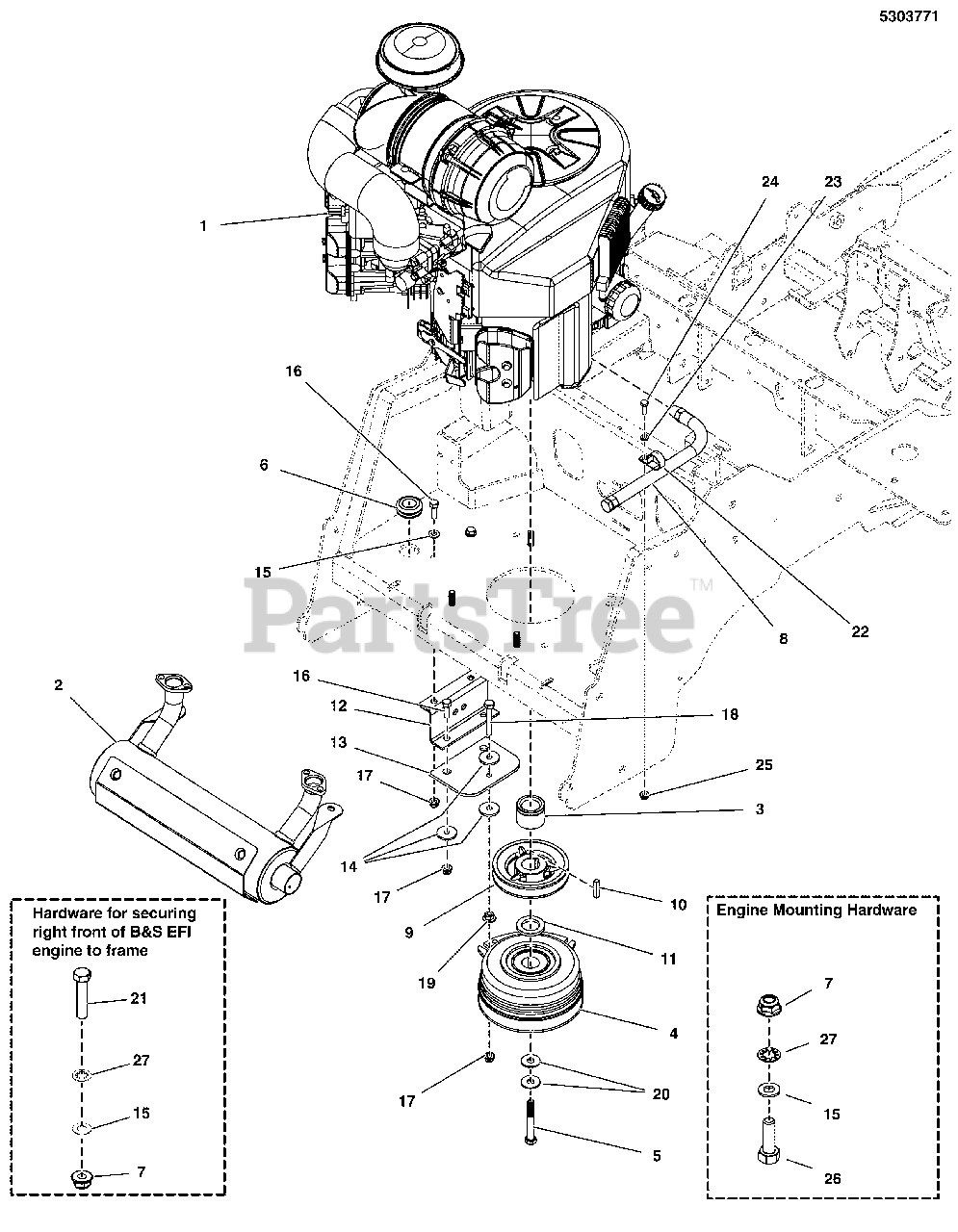

Engine & PTO Group Parts Diagram

  • Title
1

Simplicity 49E877-0001-G1

ENGINE, 28HP BRIGGS VANGUARD, EFI

$

$

Not available

2

MUFFLER

Note: (Muffler available through engine manufacturer)

$

$

Not available

3

Simplicity 5100926YP

SPACER, 1.13 X 1.75 X 1.35, CZ

$27.99

$

In Stock, only 1 left!

0

4

Simplicity 5105090YP

CLUTCH,5218-221, WARNER

$456.99

$

In Stock, only 3 left!

0

5

Simplicity 5102866YP

BOLT, CRANKSHAFT, 7/16-20 X 3, GD8

$5.49

$

In Stock, only 1 left!

0

6

Simplicity 5103944YP

GROMMET, 7/8"ID, 1/4" THICK STK

$2.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025616YP

NUT, 5/16-24, TOP LOCK FLANGE, GD8 PHOS

$3.99

$

In Stock, only 2 left!

0

8

Simplicity 5048681SM

HOSE, OIL DRAIN

$18.99

$

In Stock, only 1 left!

0

9

Simplicity 5021682YP

PULLEY, 4.75 OD X 1-1/8 BORE, BC-48

$48.99

$

Usually ships in 2-12 days

0

10

Simplicity 5050407X10YP

KEY, 1/4 SQ X 1-1/4

$3.99

$

In Stock, only 4 left!

0

11

Simplicity 5046904YP

SPACER, 1.13 X 1.75 X .25

$17.99

$

In Stock, only 1 left!

0

12

Simplicity 5410367AYP

ANCHOR, CLUTCH, IS600-IS700 - BLK

$17.99

$

In Stock, only 1 left!

0

13

Simplicity 5043636SM

CLUTCH ANCHOR PAD

$11.99

$

In Stock, only 1 left!

0

14

Simplicity 5044617SM

WASHER, .34 X 1.25 X 10 GA

$8.49

$

In Stock, only 2 left!

0

15

Simplicity 703302

WASHER, 5/16 SAE

Note: (5025155)

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

17

Simplicity 703115

NUT, 5/16-18 HEX NYLOCK FLANGE

Note: (5025392)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 5025055X18YP

BOLT, 5/16-18 X 2-1/4 GD5 TFL, ZN

$3.99

$

In Stock, only 1 left!

0

19

Simplicity 5025139SM

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)

$3.49

$

In Stock, Qty 12

0

20

Simplicity 5025585YP

BELLEVILLE WASHER 1.1875 X .442 X .089

$4.49

$

In Stock, only 4 left!

0

21

Simplicity 5025025X12YP

BOLT-HEX, 5/16-24 X 1-1/2", GD8, PHOS

$3.99

$

Usually ships in 2-12 days

0

22

Simplicity 5021500SM

CLAMP, VINYL INSULATED

$3.99

$

Usually ships in 2-12 days

0

23

Simplicity 703332

WASHER, 1/4 SAE

Note: (5025154)

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 5025010X6SM

BOLT, 1/4-20 X 3/4 GD5 YZ

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 703233

NUT, 1/4-20 HEX SERR. FLANGE

Note: (5025126)

$4.49

$

In Stock, Qty 6

0

26

Simplicity 5025025X14YP

BOLT, 5/16-18 X 1-3/4 GD8, PHOS

$4.49

$

Usually ships in 2-12 days

0

27

Simplicity 5025188SM

WASHER, 5/16 INT. TOOTH LOCK

$3.99

$

In Stock, only 1 left!

0
