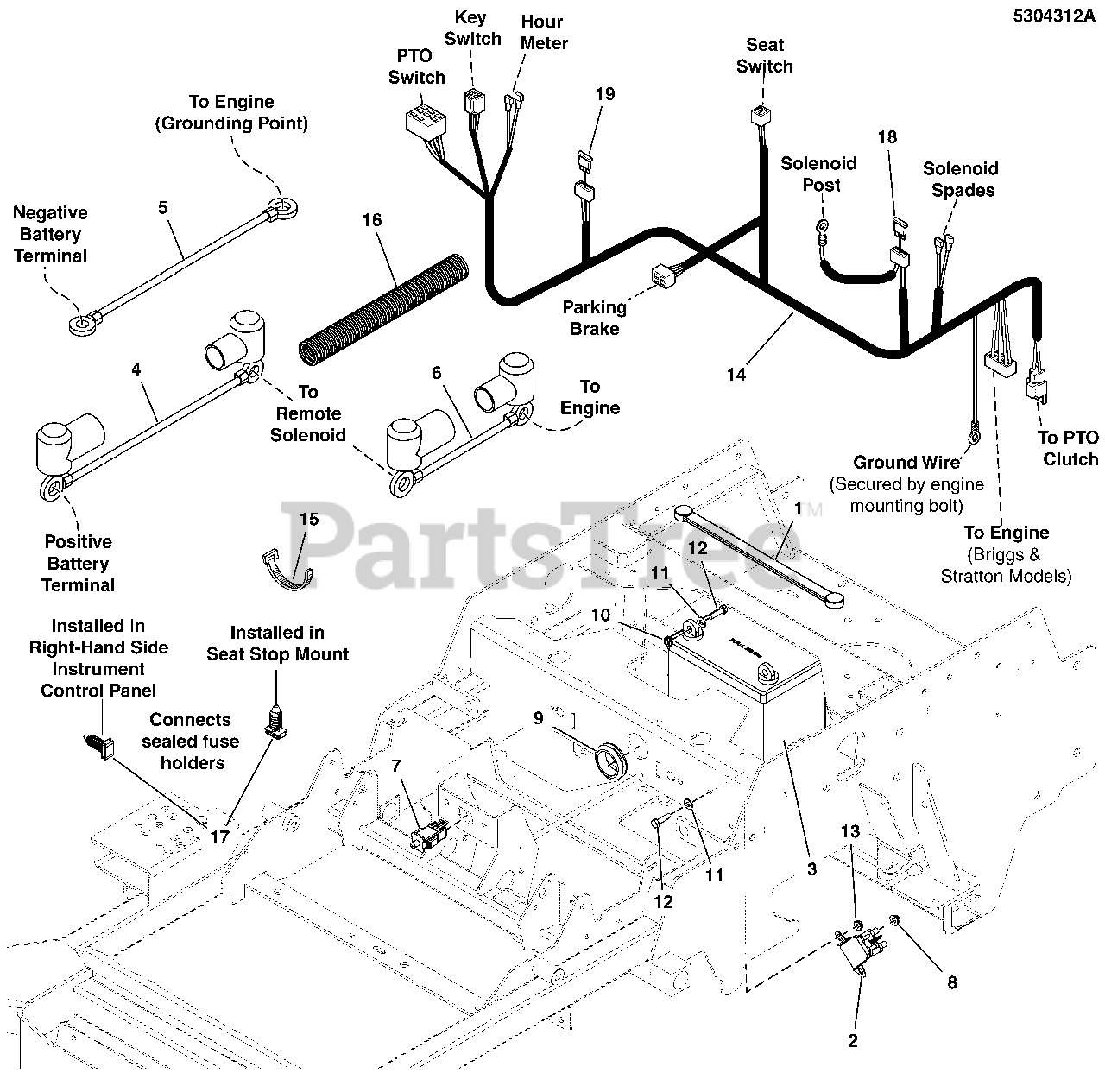

5901562 - Simplicity Contender 61" Zero-Turn Mower, 25hp Briggs & Stratton Electrical Group Parts Diagram

Contender 61" Zero-Turn Mower, 25hp Briggs & Stratton

Electrical Group Parts Diagram

  • Title

1

Simplicity 1722009SM

STRAP-BLACK RUBB

$10.99

$

In Stock, only 1 left!

0

2

Simplicity 1755382YP

SOLENOID, STD-BRACKET, 2-SPADE

$29.99

$

In Stock, Qty 20+

0

3

BATTERY, MNTNCE FREE, 300CCA 9 PLTS WET

$

$

Not available

4

Simplicity 5021405SM

BATTERY CABLE, POS, 22, 1/4-5/16

$18.99

$

Usually ships in 2-12 days

0

5

Simplicity 5047690SM

BATTERY CABLE, NEG, 14, 5/16-13/32

$16.99

$

Usually ships in 2-12 days

0

6

Simplicity 5023488SM

BATTERY CABLE, POS, 22, 1/4-5/16

$27.99

$

Usually ships in 2-12 days

0

7

Simplicity 7022886YP

SWITCH, DP NO/NC SNAP-IN

$14.99

$

In Stock, Qty 20+

0

8

Simplicity 703061

NUT,1/4-20,KEPS,CONICAL WSHR,ZC/CL

Note: (80003921)

$3.49

$

In Stock, Qty 11

0

9

Simplicity 5102677YP

GROMMET, 1-1/2" ID FOR 1/4" METAL

$7.49

$

Usually ships in 2-12 days

0

10

Simplicity 5025126SM

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

11

Simplicity 5025154SM

WASHER, 1/4 SAE
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 5025010X6SM

BOLT, 1/4-20 X 3/4 GD5 CZ

$3.99

$

In Stock, Qty 20+

0

13

Simplicity 5025391SM

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 5415908YP

WIRE HARNESS, CONTENDER

$210.99

$

Usually ships in 2-12 days

0

15

Simplicity 5021029SM

TIE, SELF-LOCKING, 12"

$

$

Not available

16

Simplicity 5050927X18YP

WIRE LOOM, 3/8 ID X 18 IN

$7.49

$

Usually ships in 2-12 days

0

17

Simplicity 5103761YP

FIR TREE MOUNT, PACKARD

$5.99

$

Usually ships in 2-12 days

0

18

Simplicity 5021603SM

FUSE, ATO, 20 AMP (SV)

$4.99

$

In Stock, only 2 left!

0

19

Simplicity 5101935YP

FUSE, ATO, 15 AMP (SV)

$4.49

$

Usually ships in 2-12 days

0
