5901532 - Simplicity 72" Mower Deck, 4900/72 Ansi-Exp 72" Mower Deck - Housing, Covers, Spindles, & Blades (5302040AMF) Parts Diagram

72" Mower Deck, 4900/72 Ansi-Exp

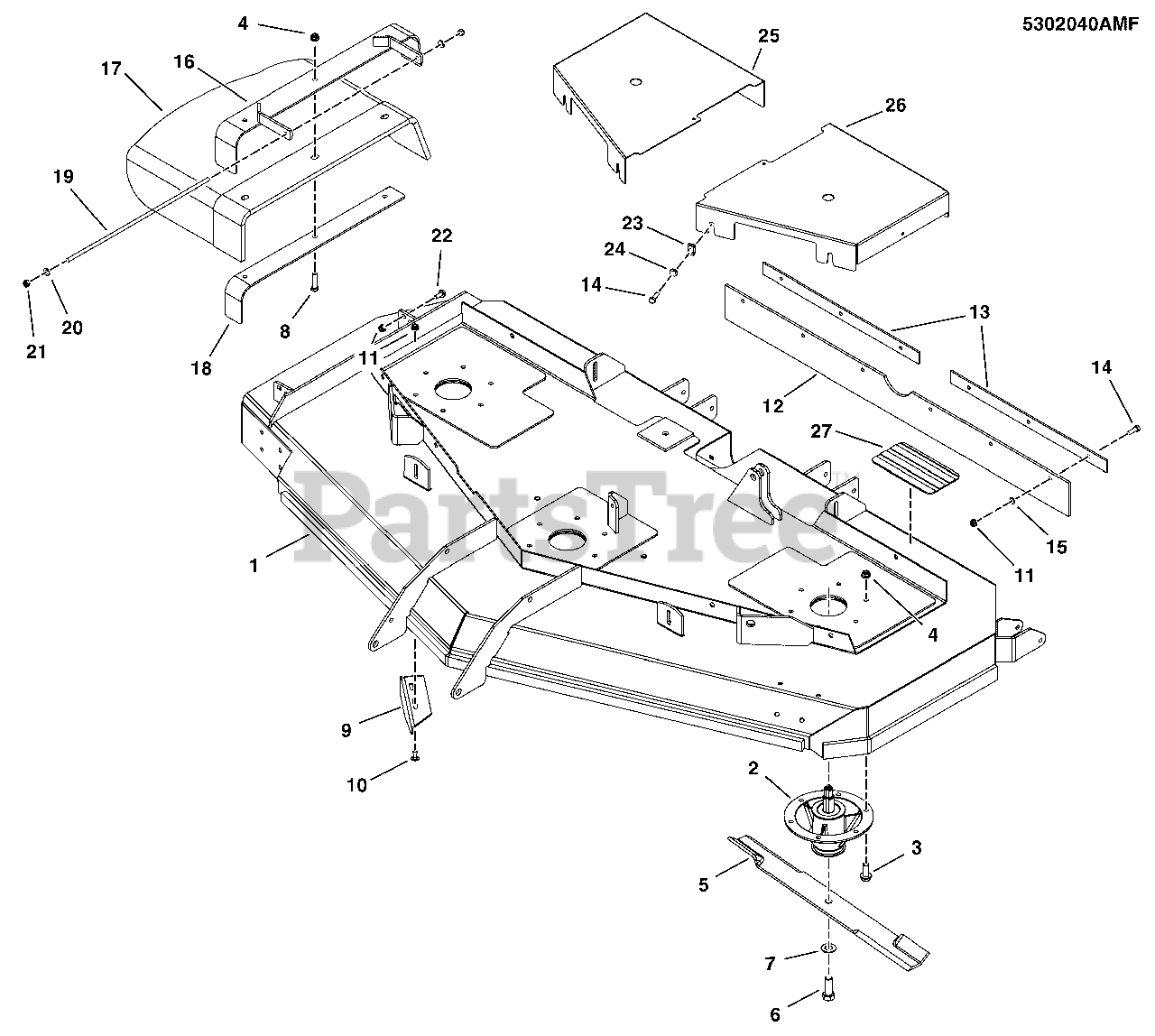

72" Mower Deck - Housing, Covers, Spindles, & Blades (5302040AMF) Parts Diagram

  • Title

1

Simplicity 5600558YP

DECK SHELL W/ DECALS, 72 - S800X

$4445.99

$

Usually ships in 2-12 days

0

2

Simplicity 5100993SM

SPINDLE ASSM, CAST IRON 8.0-6 BOLT

$219.99

$

In Stock, Qty 15

0

3

Simplicity 5025390X10SM

BOLT, 3/8-16 X 1-1/4, FLANGE, GD 5, CZ
(Superseded to 770137)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

5

Simplicity 5102227SYP

BLADE, 25 X 25 X 2.50, HIGH LIFT (SET OF 3)

$

$

Not available

6

Simplicity 5025320X14SM

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 770136)

$4.49

$

In Stock, Qty 20+

0

5

Simplicity 5102227YP

BLADE, 25 X 25 X 2.50, HIGH LIFT

$35.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025477SM

WASHER, 5/8 GRADE 8, YZ

$3.99

$

In Stock, Qty 9

0

8

Simplicity 5025013X12SM

BOLT, 3/8-16 X 1-1/2 GD5 YZ

$3.99

$

Usually ships in 2-12 days

0

9

Simplicity 5407876AYP

PLATE, DEFLECTOR, 72 - BLK

$22.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025145X6SM

BOLT, 5/16-18 X 3/4, CARRIAGE

$3.99

$

In Stock, Qty 5

0

11

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 5102621YP

FLAP, STRIPER, 72 DECK

$106.99

$

Usually ships in 2-12 days

0

13

Simplicity 5406813DYP

PLATE, SUPPORT, 72, S800X - RED

$26.99

$

Usually ships in 2-12 days

0

14

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

15

Simplicity 5025498YP

NUT, Push On, 5/16

$2.99

$

Usually ships in 2-12 days

0

16

Simplicity 5408016AYP

WELD, FRAME, CHUTE, 72 - BLK

$74.99

$

Usually ships in 2-12 days

0

17

Simplicity 5404834YP

CHUTE, DISCHARGE, BEND RUBBER (SV)

$158.99

$

Usually ships in 2-12 days

0

18

Simplicity 5408018AYP

SUPPORT, DICHARGE CHUTE, 61/72 - BLK

$20.99

$

Usually ships in 2-12 days

0

19

Simplicity 5103045YP

ROD, MOUNT, CHUTE, 72, CZ

$15.99

$

Usually ships in 2-12 days

0

20

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

21

Simplicity 5025045SM

NUT, 5/16-24 HEX NYLON LOCK

$3.49

$

In Stock, Qty 11

0

22

Simplicity 703354

SCREW, 5/16-18X0.750, GR5, WHIZ-LOCK, ZC

$5.49

$

In Stock, Qty 14

0

23

Simplicity 5022308SM

BODY CLIP, 5/16-18-7GA MATERIAL

$5.99

$

In Stock, only 2 left!

0

24

Simplicity 5025292SM

WASHER, 5/16 GD.9 FLAT

$3.99

$

In Stock, Qty 17

0

25

Simplicity 5406014DYP

GUARD, DECK - RH - RED

$108.99

$

Usually ships in 2-12 days

0

26

Simplicity 5406015DYP

GUARD, DECK - LH - RED

$100.99

$

Usually ships in 2-12 days

0

27

Simplicity 5101004SM

SAFETY WALK, 4.00 X 7.50

$9.49

$

In Stock, only 1 left!

0
