5901532 - Simplicity 72" Mower Deck, 4900/72 Ansi-Exp 72" Mower Deck - Front Frame (5302041AMF) Parts Diagram

72" Mower Deck, 4900/72 Ansi-Exp

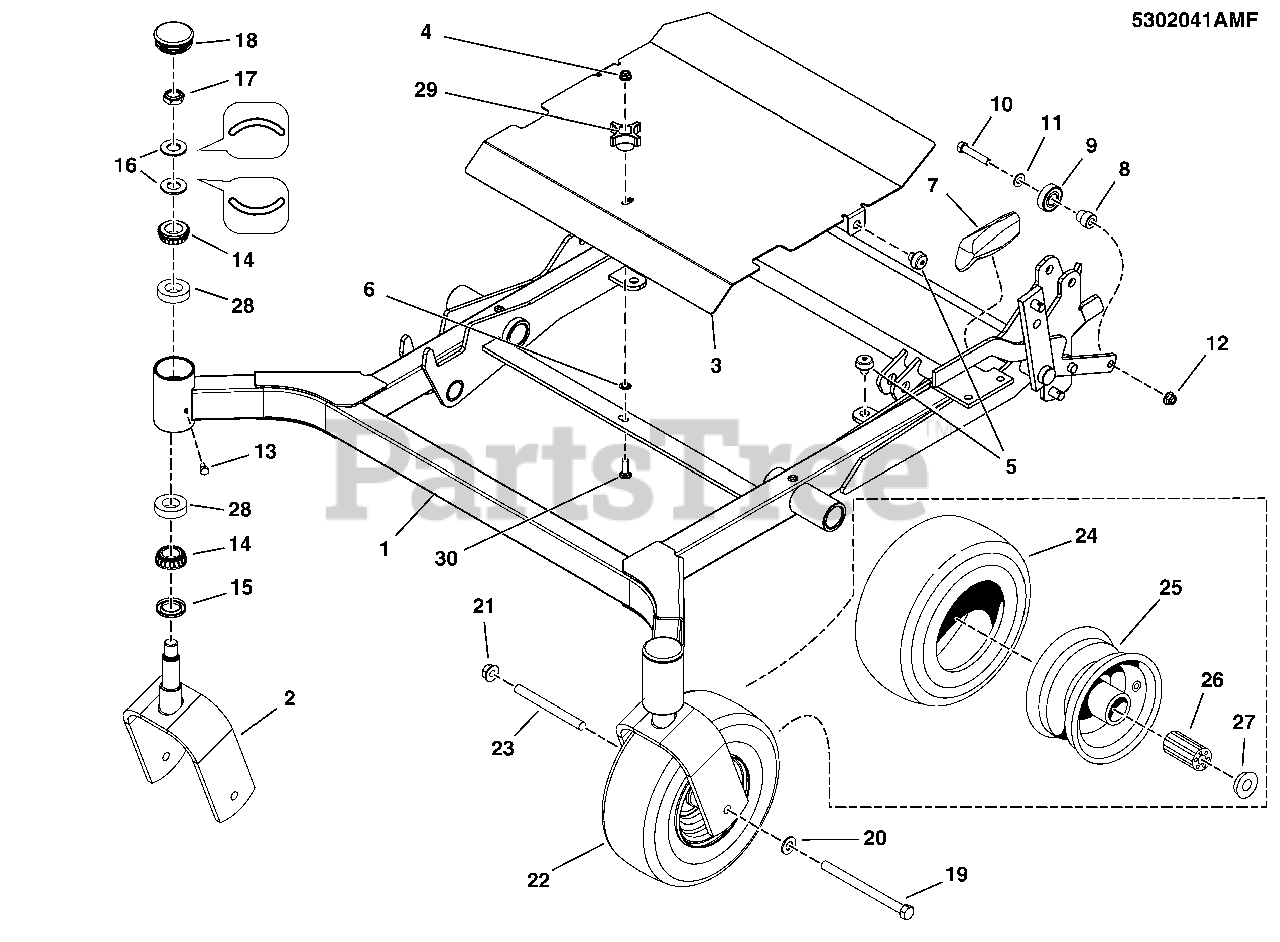

72" Mower Deck - Front Frame (5302041AMF) Parts Diagram

  • Title

1

Simplicity 5410973DYP

WELD, MOWER FRAME, 800, 72 - RED

$

$

Not available

2

Simplicity 5401759DYP

WELD, FRONT CASTER YOKES - RED

$136.99

$

Usually ships in 2-12 days

0

3

Simplicity 5410971DYP

DECK GUARD, CENTER, 800, 72 - RED

$131.99

$

Usually ships in 2-12 days

0

4

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 197546GS

MNT, VBRTN, RBBR

$7.99

$

In Stock, only 2 left!

0

6

Simplicity 5025498YP

NUT, Push On, 5/16

$2.99

$

Usually ships in 2-12 days

0

7

Simplicity 5100171SM

GRIP, BLACK FLEXIBLE

$13.99

$

In Stock, only 1 left!

0

8

Simplicity 5049184SM

SPACER, HYDRO PULLEY

$5.49

$

In Stock, Qty 6

0

9

Simplicity 1705897SM

BEARING, BALL 11/16X1-9/16X15/32

$8.49

$

In Stock, Qty 20+

0

10

Simplicity 5025013X16SM

BOLT, 3/8-16 X 2 GD5 YZ

$4.49

$

In Stock, Qty 6

0

11

Simplicity 5025156SM

WASHER, 3/8 SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0

12

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 5025457SM

BOLT, 1/4-28 X 1/2, GD5 YZ

$3.99

$

Usually ships in 2-12 days

0

14

Simplicity 5020884SM

BEARING, TAPERED ROLLER, 1

$25.99

$

In Stock, Qty 20+

0

15

Simplicity 5021072SM

SEAL, GREASE

$7.49

$

In Stock, Qty 5

0

16

Simplicity 5025449SM

WASHER, BELLEVILLE - 1.500 X .755

$4.99

$

Usually ships in 2-12 days

0

17

Simplicity 5025448SM

NUT, 3/4-16, HEX JAM NYLON LOCK

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 5102929YP

CAP, LOW PROFILE, STEEL

$9.99

$

In Stock, Qty 5

0

19

Simplicity 5025017X52SM

BOLT, 1/2-13 X 6-1/2 GD5 YZ

$10.99

$

In Stock, only 2 left!

0

20

Simplicity 5025158SM

WASHER, 1/2 SAE

$3.99

$

In Stock, Qty 13

0

21

Simplicity 5025396SM

NUT, 1/2-13 HEX NYLOCK FLANGE

$3.49

$

In Stock, only 2 left!

0

22

Simplicity 5101418YP

WHEEL, CASTER, 11 X 4.0-5 SILVER BEAD LO

$127.99

$

In Stock, Qty 11

0

23

Simplicity 5045996SM

CASTER AXLE DDSH

$15.99

$

In Stock, Qty 18

0

24

Simplicity 5022433X1SM

TIRE, FRONT, 11 X 4.0 - 5 (SV)

Note: (SV)

$75.99

$

In Stock, Qty 18

0

25

Simplicity 5101418X2YP

WHEEL ASSEMBLY, 11 X 4.0 - 5 TIRE CMP (SV)

Note: (SV)

$84.99

$

In Stock, only 1 left!

0

26

Simplicity 5101418X1YP

BEARING, CASTER WHEEL, 11 X 4.0 - 5 BEAD LOCK (SV)

Note: (SV)

$28.99

$

In Stock, Qty 14

0

27

Simplicity 5021043SM

BEARING, RETAINER (SV)

Note: (SV)

$7.49

$

In Stock, Qty 6

0

28

Simplicity 5020883SM

CUP, BEARING (SV)

Note: (SV)

$9.49

$

In Stock, Qty 9

0

29

Simplicity 1670578SM

KNOB-INT THR .312-18 4-ARM 2.12WD 1.06 LG

$13.99

$

In Stock, only 1 left!

0

30

Simplicity 5025145X8SM

BOLT, 5/16-18 X 1, CARRIAGE

$3.99

$

In Stock, Qty 9

0
