5901492 - Simplicity Cobalt 61" Zero-Turn Mower, 28hp Briggs & Stratton Motion Control Group - Handles & Dampeners Parts Diagram

Cobalt 61" Zero-Turn Mower, 28hp Briggs & Stratton

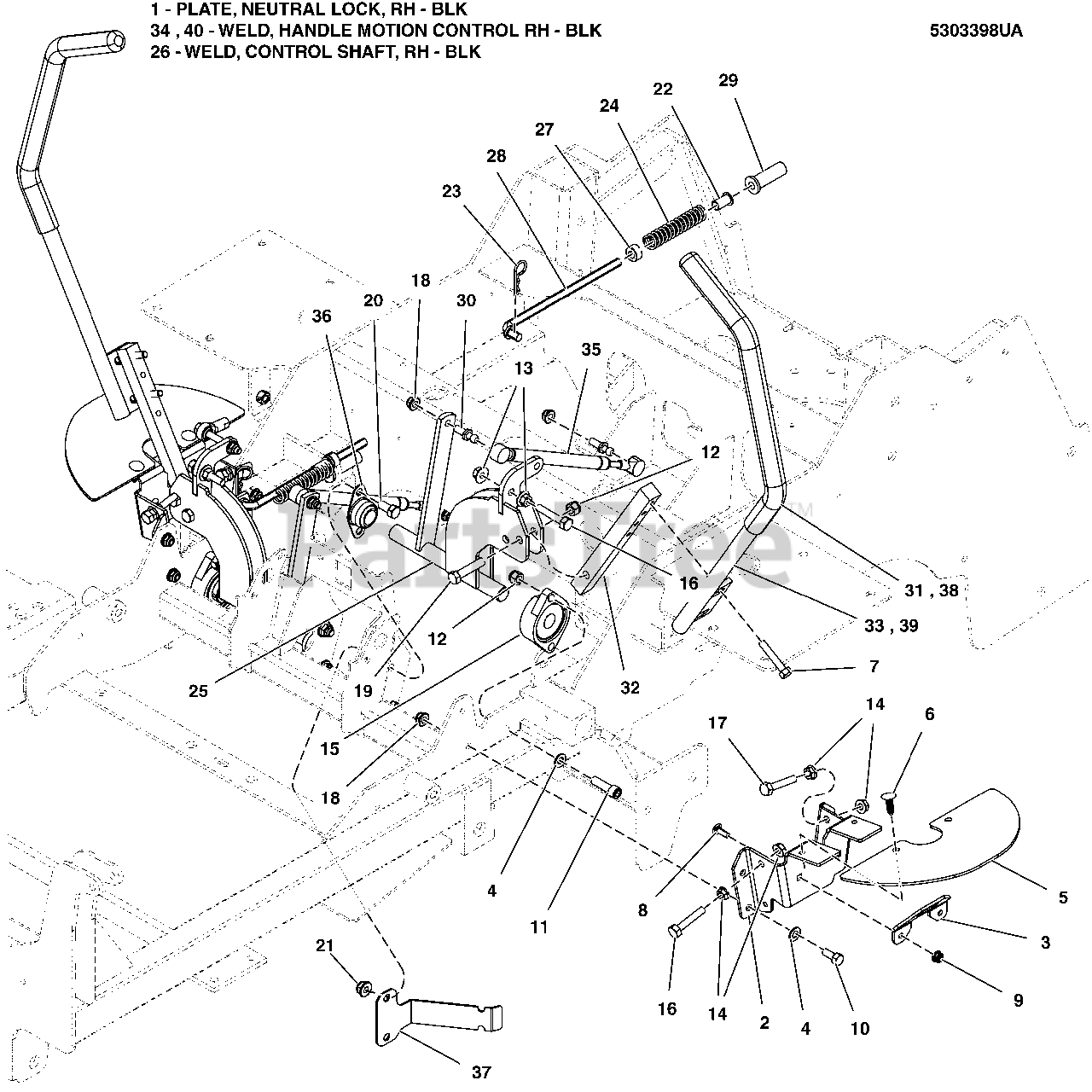

Motion Control Group - Handles & Dampeners Parts Diagram

  • Title

1

Simplicity 5411451AYP

PLATE, NEUTRAL LOCK, RH - BLK

$29.99

$

Usually ships in 2-12 days

0

2

Simplicity 5411452AYP

PLATE, NEUTRAL LOCK, LH - BLK

$42.99

$

Usually ships in 2-12 days

0

3

Simplicity 5409984AYP

BRACKET, SWITCH MOUNT - BLK

$7.99

$

Usually ships in 2-12 days

0

4

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

5

Simplicity 5401248SM

GUARD, RUBBER MOTION CONTROLS

$8.49

$

Usually ships in 2-12 days

0

6

Simplicity 5025431SM

PUSH RIVET (TREE TYPE), BLACK

$4.49

$

Usually ships in 2-12 days

0

7

Simplicity 1930591SM

CAPSCREW, Hex Head, Flange Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

8

Simplicity 703101

BOLT, 1/4-20 x 3/4 Round Head Short Square Neck Carriage, GR 5, YZ

Note: (80003579)

$3.99

$

In Stock, only 3 left!

0

9

Simplicity 703463

NUT, 1/4-20, GR5 Flanged Nylock, Zinc/Clear

Note: (5025391)

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 5025011X6SM

CAPSCREW, Hex Head, 5/16-18 x 3/4

$3.99

$

In Stock, only 4 left!

0

11

Simplicity 5025327SM

BOLT, 3/8-16 X 1-1/4 SHCS (SOCKET HEAD)

$3.99

$

Usually ships in 2-12 days

0

12

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 5025139SM

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)

$3.49

$

In Stock, Qty 12

0

14

Simplicity 5025127SM

NUT, 5/16-18, Hex Serrated Flange (Small)

$3.49

$

In Stock, only 4 left!

0

15

Simplicity 5021499

BEARING, FLANGE
(Superseded to 5021499SM)

$55.99

$

In Stock, only 2 left!

0

16

Simplicity 5025055X10YP

BOLT, 5/16-18 X 1.25" GD 5 TFL

$3.49

$

Usually ships in 2-12 days

0

17

Simplicity 5025055X14SM

CAPSCREW, Hex Head, Flange Lock Taptite, 5/16-18 X 1-3/4

$3.99

$

Usually ships in 2-12 days

0

18

Simplicity 5025392SM

NUT, Ny Lock Flange, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 5025013X14SM

CAPSCREW, Hex Head, 3/8-16 X 1-3/4

$3.99

$

In Stock, only 2 left!

0

20

Simplicity 5025013X6SM

CAPSCREW, Hex Hd, 3/8-16 x 3/4 (S/N 616 & up)

$3.99

$

Usually ships in 2-12 days

0

21

Simplicity 5025394SM

NUT, 3/8-16, Hex Flange Nylock

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 5023260SM

BUSHING, FLANGE 3/8ID X 7/8 LONG

$6.49

$

In Stock, only 2 left!

0

23

Simplicity 5025210YP

PIN, HAIR, .0915 X 1-7/8

$3.99

$

In Stock, Qty 20+

0

24

Simplicity 5022645SM

SPRING, REVERSE RETURN

$9.49

$

In Stock, only 1 left!

0

25

Simplicity 5411446AYP

WELD, CONTROL SHAFT, LH - BLK

$79.99

$

Usually ships in 2-12 days

0

26

Simplicity 5411445AYP

WELD, CONTROL SHAFT, RH - BLK

$80.99

$

Usually ships in 2-12 days

0

27

Simplicity 5010546SM

COLLAR, 3/8" SET

$5.99

$

Usually ships in 2-12 days

0

28

Simplicity 5100947SM

ROD, NEUTRAL RETURN, CZ

$7.99

$

Usually ships in 2-12 days

0

29

Simplicity 5104375YP

FLANGED BUSHING, 3/8IDX.63ODX.8125FL

$5.99

$

Usually ships in 2-12 days

0

30

Simplicity 5101307SM

10MM BALL STUD, 5/16-18 X 3/4 THDS

$5.49

$

Usually ships in 2-12 days

0

31

Simplicity 5022068SM

GRIP, FOAM, 3/4" ID, 16" LONG

Note: (S/N: 20175154643 & Below)

$11.99

$

Usually ships in 2-12 days

0

32

Simplicity 5047004AYP

MOUNT, CONTROL ARM - BLK

Note: (9.0" total length, 4 adjustment holes)

$37.99

$

Usually ships in 2-12 days

0

33

Simplicity 5400636AYP

WELD, HANDLE MOTION CONTROL LH - BLK

Note: (S/N: 20175154643 & Below)

$50.99

$

Usually ships in 2-12 days

0

34

Simplicity 5400637AYP

WELD, HANDLE MOTION CONTROL RH - BLK

Note: (S/N: 20175154643 & Below)

$69.99

$

Usually ships in 2-12 days

0

35

Simplicity 5100940SM

DAMPENER, CONTROL, #(P6709/P3610)

$55.99

$

In Stock, only 2 left!

0

36

Simplicity 5021098SM

BEARING, Flange, Bronze, 3/4"

$13.99

$

In Stock, Qty 5

0

37

Simplicity 5413137AYP

BRACKET, HARNESS MOUNT, 2100 - BLK

$9.99

$

Usually ships in 2-12 days

0

38

Simplicity 5104722YP

GRIP, FOAM, 1" ID, 16" LONG

Note: (S/N: 2017515464 & Above)

$12.99

$

Usually ships in 2-12 days

0

39

Simplicity 5414431AYP

WELD,HANDLE MOTION CNTRL,19.0,1.0,LH,BLK
(Superseded to 84004629)

Note: (S/N: 2017515464 & Above)

$49.99

$

Usually ships in 2-12 days

0

40

Simplicity 5414432AYP

WELD,HANDLE MOTION CNTRL,19.0,1.0,RH,BLK
(Superseded to 84004630)

Note: (S/N: 2017515464 & Above)

$49.99

$

In Stock, only 1 left!

0
