5901492 - Simplicity Cobalt 61" Zero-Turn Mower, 28hp Briggs & Stratton Engine & PTO Group (5303529_5303651_5303771) Parts Diagram

Cobalt 61" Zero-Turn Mower, 28hp Briggs & Stratton

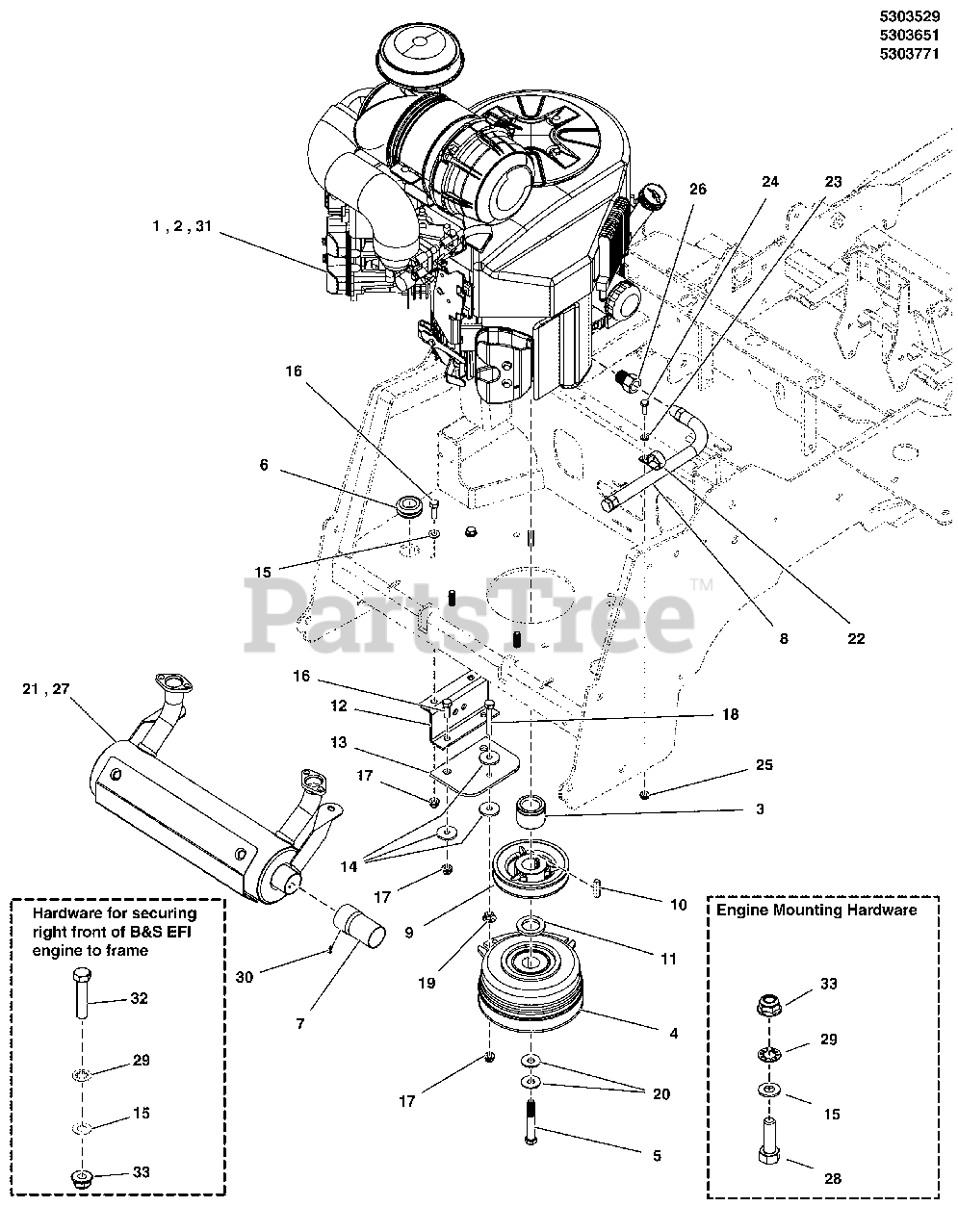

Engine & PTO Group (5303529_5303651_5303771) Parts Diagram

  • Title

1

ENGINE, BRIGGS & STRATTON, VANGUARD

Note: (Briggs & Stratton 49R977 Only)

$

$

Not available

2

Simplicity 543777-1120-E1

ENGINE, B&S, 543777

Note: (Briggs & Stratton 543777 Only)

$

$

Not available

3

Simplicity 5100926YP

SPACER, 1.13 X 1.75 X 1.35, CZ

$27.99

$

In Stock, only 1 left!

0

4

Simplicity 5105090YP

CLUTCH, WARNER, 200 FT-LB, 1.13" X 6.323

$456.99

$

In Stock, only 1 left!

0

5

Simplicity 5102866YP

BOLT, CRANKSHAFT, 7/16-20 X 3, GD8

$5.49

$

In Stock, only 1 left!

0

6

Simplicity 5103944YP

GROMMET, 7/8"ID, 1/4" THICK STK

$2.99

$

Usually ships in 2-12 days

0

7

Simplicity 5104348YP

EXTENSION, TAILPIPE, 3", BLACK

Note: (Briggs & Stratton 49R977 & 543777 Models Only)

$14.99

$

Usually ships in 2-12 days

0

8

Simplicity 5048681SM

HOSE, OIL DRAIN

$18.99

$

In Stock, only 1 left!

0

9

Simplicity 5021682YP

PULLEY, 4.75 OD X 1-1/8 BORE, BC-48

$48.99

$

Usually ships in 2-12 days

0

10

Simplicity 5050407X10YP

KEY, 1/4 SQ. X 1-1/4

$3.99

$

In Stock, only 3 left!

0

11

Simplicity 5046904YP

SPACER, 1.13 X 1.75 X .25

$17.99

$

In Stock, only 1 left!

0

12

Simplicity 5410367AYP

ANCHOR, CLUTCH, IS600-IS700 - BLK

$17.99

$

In Stock, only 1 left!

0

13

Simplicity 5043636SM

PAD, Clutch Anchor

$11.99

$

In Stock, only 1 left!

0

14

Simplicity 5044617SM

WASHER, CLUTCH ANCHOR, 5/16

$8.49

$

In Stock, only 2 left!

0

15

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

16

Simplicity 5025011X8SM

CAPSCREW, Hex Head, 5/16-18 X 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

17

Simplicity 5025392SM

NUT, Ny Lock Flange, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 5025055X18YP

BOLT, 5/16-18 X 2-1/4, GD 5, TFL, ZN

$3.99

$

In Stock, only 1 left!

0

19

Simplicity 5025139SM

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)

$3.49

$

In Stock, Qty 12

0

20

Simplicity 5025585YP

BELLEVILLE, WASHER, 1.1875 X .442 X .089

$4.49

$

In Stock, only 2 left!

0

21

Simplicity 846153

Muffler
(Superseded to 846819)

Note: (Briggs & Stratton 543777 Only)

$500.99

$

Usually ships in 2-12 days

0

22

Simplicity 5021500SM

CLAMP, VINYL INSULATED, 1.00

$3.99

$

Usually ships in 2-12 days

0

23

Simplicity 703332

WASHER, 1/4, Flat, GR5 Zinc/Clear

Note: (5025154)

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 5025010X6SM

CAPSCREW, Hex Head, 1/4-20 x 3/4 (stiffener to top of cover)

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 5025126SM

NUT, Serrated Flange, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

26

Simplicity 5100366SM

METRIC ADAPTER, M14-1.5" TO 3/8 NPTF

Note: (Briggs & Stratton 543777 Only)

$13.99

$

Usually ships in 2-12 days

0

27

Simplicity 593249

MUFFLER, RIGHT OUTLET ASSY
(Superseded to 706900)

Note: (Briggs & Stratton 49R977 Only)

$222.99

$

Usually ships in 2-12 days

0

28

Simplicity 5025025X14

BOLT, 5/16-24 X 1-3/4, GD8, PHOS
(Superseded to 5025025X14YP)

Note: (QTY: 3 - Briggs & Stratton 49E877 Only)

$4.49

$

Usually ships in 2-12 days

0

29

Simplicity 5025188SM

WASHER, 5/16" Internal Tooth Lock

Note: (Briggs & Stratton 49R977 Only)

$3.99

$

In Stock, only 1 left!

0

30

Simplicity 5025470YP

SCREW,SELF-TAP,#8-32 X 3/8, WASH HEX, CZ

$3.49

$

In Stock, only 2 left!

0

31

Simplicity 49E877-0001-G1

ENGINE, 28HP BRIGGS VANGUARD, EFI

Note: (Briggs & Stratton 49E877 Only)(Muffler available through engine manufacturer)

$

$

Not available

32

Simplicity 5025025X12

BOLT-HEX, 5/16-24 X 1-1/2", GD8, PHOS
(Superseded to 5025025X12YP)

Note: (Briggs & Stratton 49E877 Only)

$3.99

$

Usually ships in 2-12 days

0

33

Simplicity 5025616

NUT, 5/16-24, TOP LOCK FLANGE, GD8 PHOS
(Superseded to 5025616YP)

Note: (Briggs & Stratton Models)

$3.99

$

In Stock, only 2 left!

0
