5901463 - Simplicity Contender 61" Zero-Turn Mower, 25hp Briggs & Stratton Instrument Control Panel Group (5304344) Parts Diagram

Contender 61" Zero-Turn Mower, 25hp Briggs & Stratton

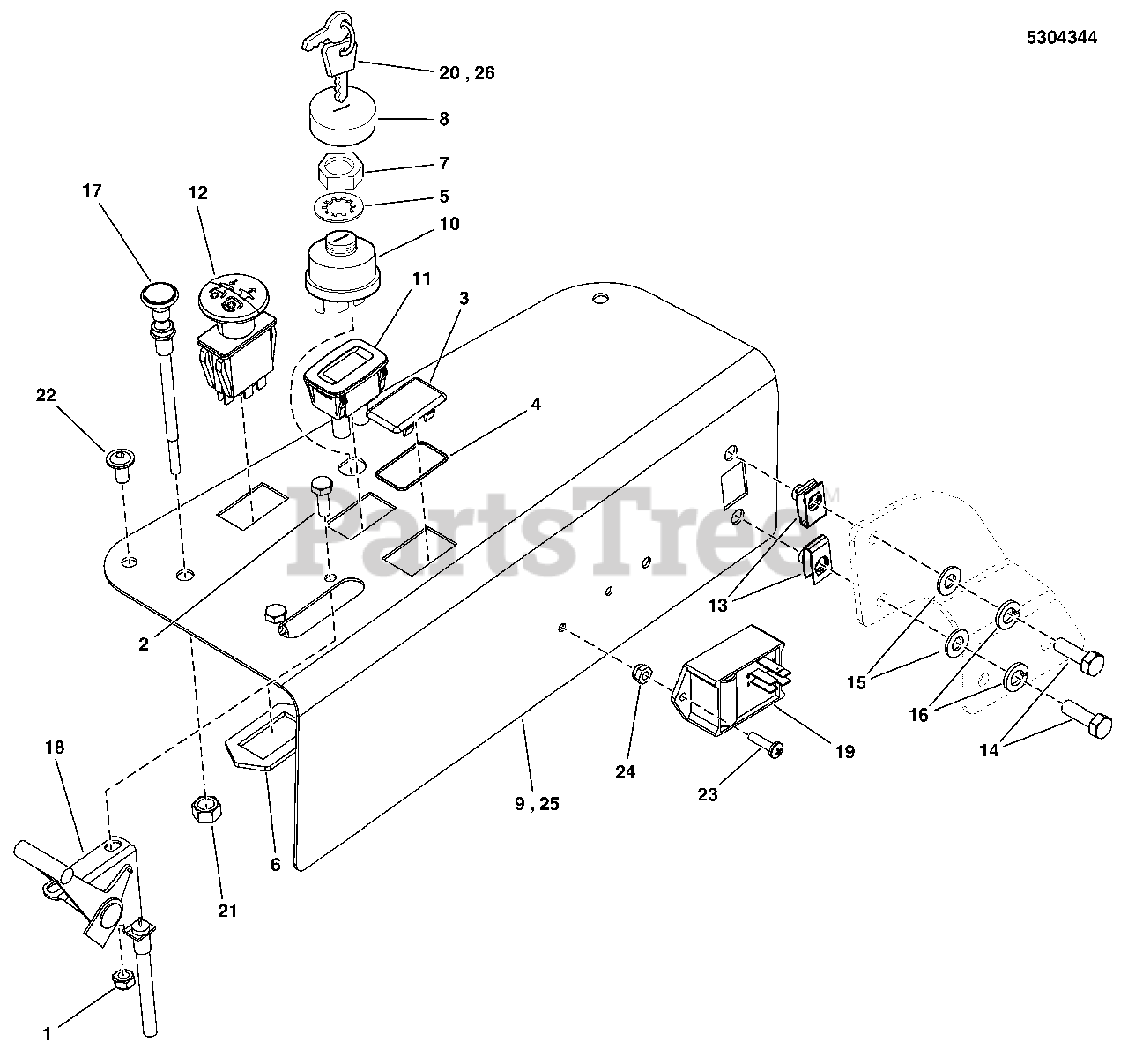

Instrument Control Panel Group (5304344) Parts Diagram

  • Title

1

Simplicity 5025095SM

NUT, Hex, Nylon Lock, 1/4-20

$3.49

$

In Stock, Qty 5

0

2

Simplicity 5025010X6SM

CAPSCREW, Hex Head, 1/4-20 x 3/4 (stiffener to top of cover)

$3.99

$

In Stock, Qty 20+

0

3

Simplicity 1709188SM

PLUG, Hole, Electric Lift (Hydro models only)

$4.99

$

In Stock, only 1 left!

0

4

Simplicity 5022269SM

O-RING, 7/8" ID X 1/16" W

$3.49

$

Usually ships in 2-12 days

0

5

Simplicity 1960547SM

LOCKWASHER, Internal Tooth, 5/8 Thin

$4.49

$

In Stock, only 3 left!

0

6

Simplicity 5022222SM

RING, SWITCH RETAINER, PTO

$4.49

$

In Stock, only 2 left!

0

7

Simplicity 1717549SM

NUT, Hex Flange, 5/8-32 IGN SW DIE CAST
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

8

Simplicity 1717550SM

COVER, Ignition Switch
(Superseded to 847150)

$8.49

$

In Stock, Qty 15

0

9

Simplicity 5414575AYP

PLATE, CONTROL PANEL, CONTENDER

Note: (USA Models Only)

$76.99

$

Usually ships in 2-12 days

0

10

Simplicity 1737853YP

SWITCH ASSEMBLY, Ignition Indak No Keys/Hdwr

$35.99

$

In Stock, Qty 20+

0

11

HOUR METER, ASSEMBLE

Note: (* See Footnote)

$

$

Not available

12

Simplicity 1722887SM

SWITCH, PTO Push/Pull, Yel Knob w/Symbols, 8 Terminal

$33.99

$

In Stock, Qty 20+

0

13

Simplicity 5022308SM

CLIP, BODY , 5/16-18 FOR 7 GA.

$5.99

$

In Stock, only 2 left!

0

14

Simplicity 5025011X8SM

CAPSCREW, Hex Head, 5/16-18 X 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

15

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

16

Simplicity 5025170SM

WASHER, Flat

$3.99

$

In Stock, only 2 left!

0

17

Simplicity 5047779SM

CABLE, CHOKE CONTROL, 51 (Z)

Note: (Models equipped with B&S engines)

$52.99

$

In Stock, only 4 left!

0

18

Simplicity 5048231SM

CABLE, Throttle Control, 40"

$46.99

$

In Stock, only 1 left!

0

19

Simplicity 5023310SM

MODULE, TIME DELAY

Note: (USA Models Only)

$114.99

$

Usually ships in 2-12 days

0

20

Simplicity 1737836YP

KEYS, Ignition

Note: (USA Models Only)

$20.99

$

In Stock, only 1 left!

0

21

Simplicity 5025309SM

NUT, 3/8-24 HEX JAM (SV)

$2.99

$

Usually ships in 2-12 days

0

22

Simplicity 5025299X4SM

SCREW, ALLEN HEAD 1/4-20 X .500 ZINC PHOS

$4.99

$

In Stock, only 2 left!

0

23

Simplicity 5025179X6SM

SCREW, #10-24 X 3/4", ROUND PHILLIPS

Note: (USA Models Only)

$3.99

$

Usually ships in 2-12 days

0

24

Simplicity 703412

NUT, Nylock, #10-24, GR2

Note: (5025271)(USA Models Only)

$4.49

$

In Stock, only 2 left!

0

25

Simplicity 5411232AYP

PLATE, CONTROL PANEL, S550 - BLK

Note: (CE/Export Models Only)

$76.99

$

Usually ships in 2-12 days

0

26

Simplicity 1737837YP

KEYS, Ignition

Note: (CE/Export Models Only)

$21.99

$

In Stock, only 1 left!

0
