5901339 - Simplicity Cobalt 61" Zero-Turn Mower, 32hp Briggs & Stratton Electrical Group - Carbureted Models (5303530_5303509_5303650) Parts Diagram

Cobalt 61" Zero-Turn Mower, 32hp Briggs & Stratton

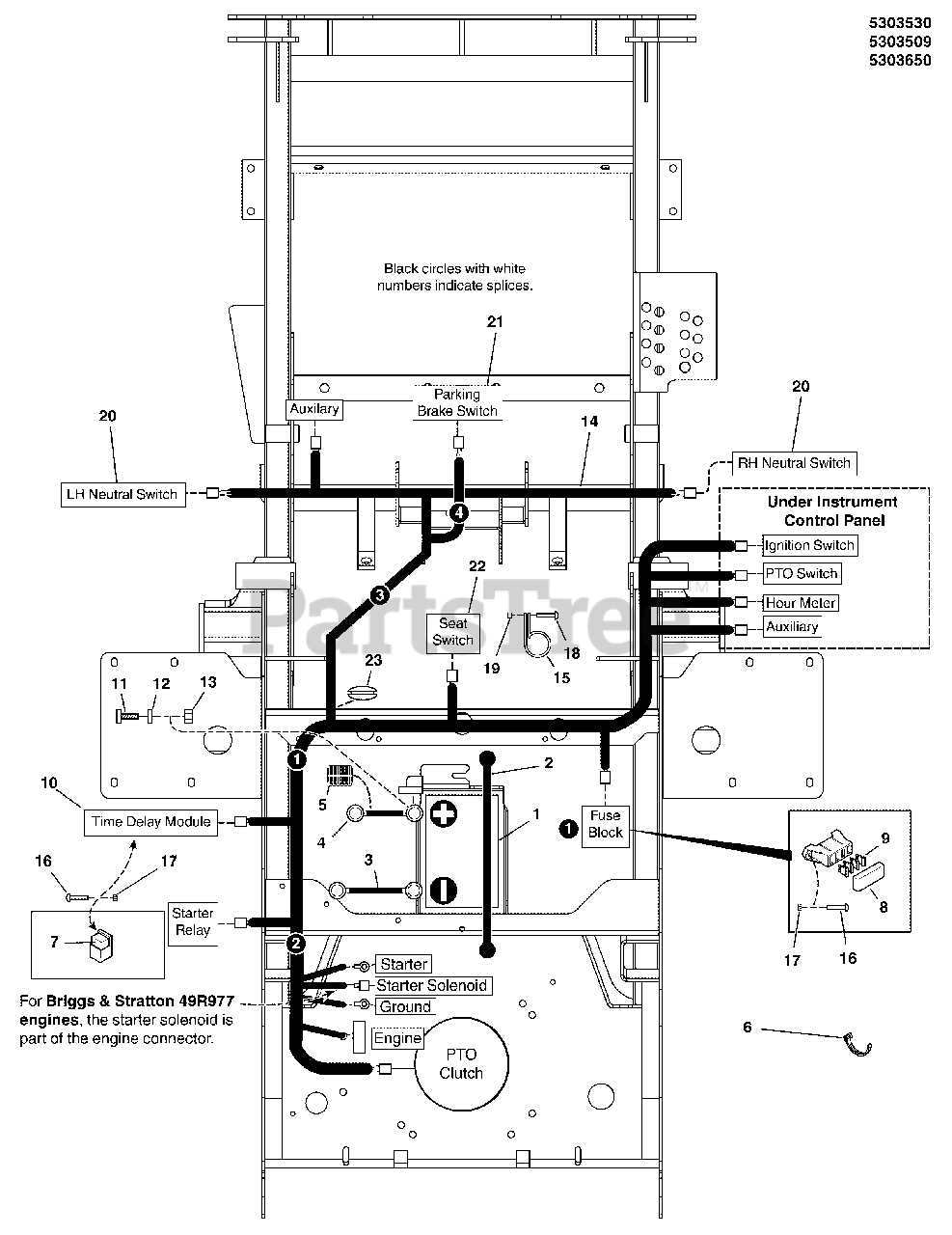

Electrical Group - Carbureted Models (5303530_5303509_5303650) Parts Diagram

  • Title

1

BATTERY, WET ( BCIU1, 350 CCA)

$

$

Not available

2

Simplicity 1722009SM

STRAP-BLACK RUBB

$10.99

$

In Stock, only 1 left!

0

3

Simplicity 5047690SM

BATTERY CABLE, NEG, 14, 5/16-13/32

$16.99

$

Usually ships in 2-12 days

0

4

Simplicity 5021405SM

BATTERY CABLE, POS, 22, 1/4-5/16

$18.99

$

Usually ships in 2-12 days

0

5

Simplicity 5050927X16YP

WIRE LOOM, 3/8 ID X 16 IN

$4.99

$

Usually ships in 2-12 days

0

6

Simplicity 5021029SM

TIE, SELF-LOCKING, 12"

$

$

Not available

7

Simplicity 5021766SM

RELAY, 12V, 40A

Note: (SV)

$24.99

$

Usually ships in 2-12 days

0

8

Simplicity 5022805SM

COVER, VINYL FUSEBLOCK

$6.49

$

Usually ships in 2-12 days

0

9

Simplicity 5021603SM

FUSE, ATO, 20 AMP

Note: (SV)

$4.99

$

In Stock, only 2 left!

0

9

Simplicity 5101935YP

FUSE, ATO-15 (15 AMP)

Note: (SV)

$4.49

$

Usually ships in 2-12 days

0

10

Simplicity 5023310SM

MODULE, TIME DELAY

$114.99

$

Usually ships in 2-12 days

0

11

Simplicity 5025010X6SM

BOLT, 1/4-20 X 3/4 GD5 YZ

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 703332

WASHER, 1/4 SAE

Note: (5025154)

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 5025126SM

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 703233)

$4.49

$

In Stock, Qty 9

0

14

Simplicity 5411967YP

WIRE HARNESS, M49 VANGUARD, IS2100Z

Note: (Briggs & Stratton 49R977 Engines)

$259.99

$

Usually ships in 2-12 days

0

14

Simplicity 5411975YP

WIRE HARNESS, BV32, IS2100Z

Note: (Briggs & Stratton 543777 Engines)

$276.99

$

Usually ships in 2-12 days

0

15

Simplicity 5021500SM

CLAMP, VINYL INSULATED

$3.99

$

Usually ships in 2-12 days

0

16

Simplicity 5025179X6SM

SCREW, #10-24 X 3/4 ROUND PHILLIPS

$3.99

$

In Stock, only 1 left!

0

17

Simplicity 703412

NUT, #10-24 HEX NYLON LOCK

Note: (5025271)

$4.49

$

In Stock, only 4 left!

0

18

Simplicity 5025299X8YP

SCREW,1/4-20X1,ZINC PHOS & OIL

$4.49

$

Usually ships in 2-12 days

0

19

Simplicity 703127

NUT,1/4-20,GR5,HEX,ZC/CL

$3.49

$

In Stock, Qty 20+

0

20

Simplicity 5101589YP

SWITCH, PLUNGER, NO, SINGLE POLE SNAP-IN
(Superseded to 84006599)

$12.99

$

In Stock, only 2 left!

0

21

Simplicity 5101280YP

SWITCH, LOW PROF, NC/NO

$30.99

$

In Stock, Qty 11

0

22

Simplicity 5021769SM

SWITCH, PLUNGER, N.C.

$14.99

$

In Stock, only 1 left!

0

23

Simplicity 5102677YP

GROMMET, 1-1/2" ID FOR 1/4 METAL

$7.49

$

Usually ships in 2-12 days

0
