5901338 - Simplicity Cobalt 61" Zero-Turn Mower, 26hp Briggs & Stratton Wheel & Tire Group Parts Diagram

Cobalt 61" Zero-Turn Mower, 26hp Briggs & Stratton

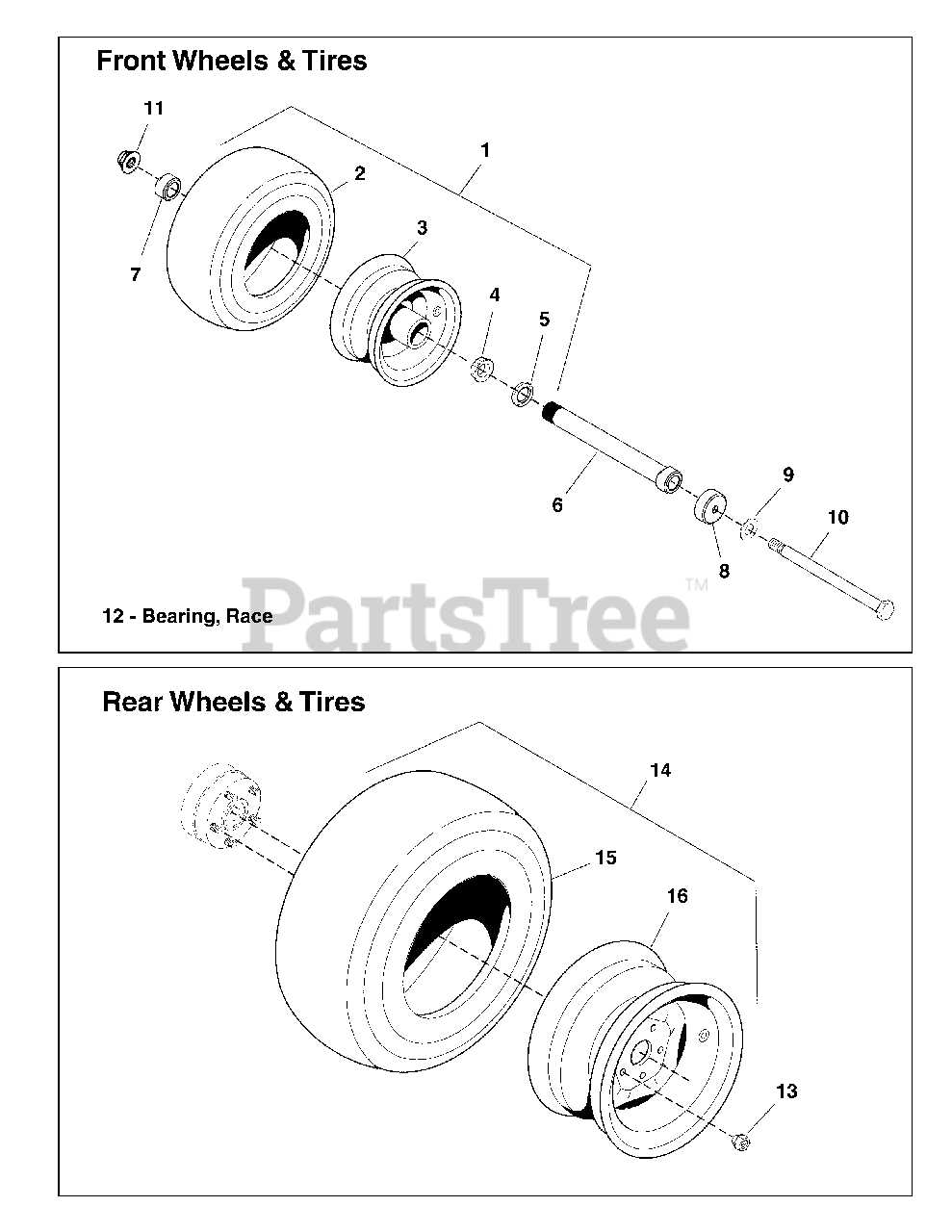

Wheel & Tire Group Parts Diagram

  • Title

1

Simplicity 5023136YP

TIRE ASSY, 13 X 6.5 SILVER

$198.99

$

Usually ships in 2-12 days

0

2

Simplicity 5022577YP

TIRE, FRONT, 13 X 6.5 X 6 (SV)

$70.99

$

Usually ships in 2-12 days

0

3

Simplicity 5023136X1YP

WHEEL ASSEMBLY, FOR 13 X 6.5 X 6 TIRES (INCLUDES BEARING AND SEALS)

$195.99

$

In Stock, only 1 left!

0

4

Simplicity 50226311SX2YP

BEARING, TAPERED ROLLER (SV)

Note: (2 per tire)

$

$

Not available

5

Simplicity 5022631SX3SM

SEAL, GREASE

Note: (2 per tire)

$9.99

$

In Stock, Qty 20+

0

6

Simplicity 5103649YP

BEARING ADJUSTER, SPACER, 7.062 LG

$23.99

$

In Stock, Qty 19

0

7

Simplicity 5103650YP

NUT, BEARING ADJUSTER, AXLE

$16.99

$

In Stock, Qty 14

0

8

Simplicity 5103594YP

DEBRIS, COVER, CASTER WHEELS

$4.49

$

In Stock, Qty 15

0

9

Simplicity 5025158SM

WASHER, 1/2 SAE

$3.99

$

In Stock, Qty 13

0

10

Simplicity 5025017X72YP

BOLT, 1/2-13 X 9 GD5 YZ

$11.99

$

In Stock, Qty 19

0

11

Simplicity 5025396SM

NUT, 1/2-13 HEX NYLOCK FLANGE

$3.49

$

In Stock, only 2 left!

0

12

Simplicity 5022631SX4SM

BEARING, RACE

Note: (Not illustrated)

$10.99

$

In Stock, Qty 20+

0

13

Simplicity 5020601SM

NUT, 1/2-20, FOR WHEEL BOLT SILVER

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 5104029YP

TIRE/WHEEL ASM, 24X12.00-12, TURF SMART

$512.99

$

Usually ships in 2-12 days

0

15

Simplicity 5104029X1YP

TIRE, 24X12.00-12, TURF SMART

$402.99

$

Usually ships in 2-12 days

0

16

Simplicity 5023364YP

WHEEL, 12 X 8.5

$225.99

$

Usually ships in 2-12 days

0
