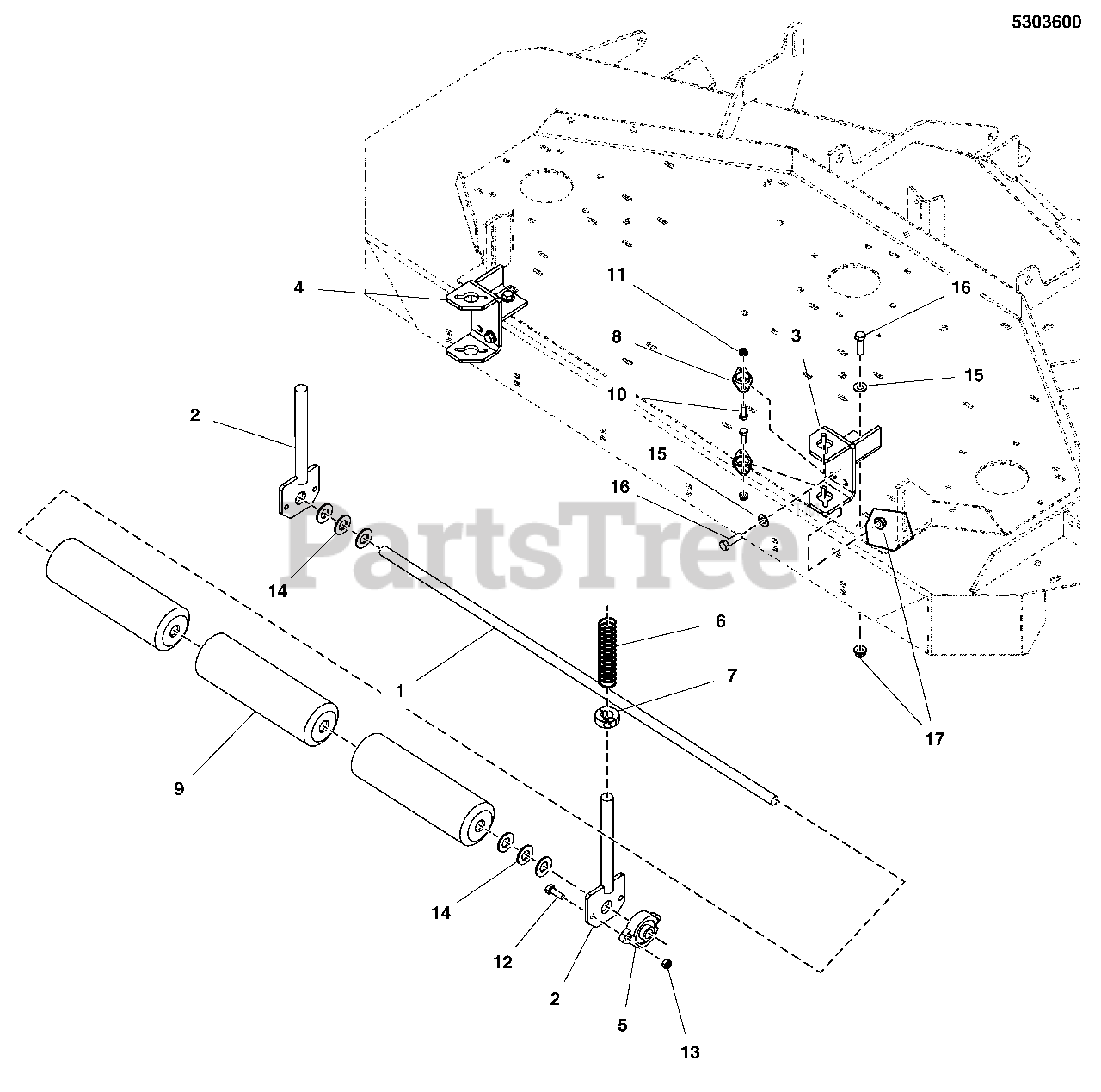

5901338 - Simplicity Cobalt 61" Zero-Turn Mower, 26hp Briggs & Stratton 61" Mower Deck Group - Rear Roller Parts Diagram

Cobalt 61" Zero-Turn Mower, 26hp Briggs & Stratton

61" Mower Deck Group - Rear Roller Parts Diagram

  • Title

1

Simplicity 5411348YP

SHAFT, 5/8 X 34.25

$40.99

$

Usually ships in 2-12 days

0

2

Simplicity 5411880AYP

WELD, ROLLER SLIDE - BLK

$36.99

$

In Stock, only 3 left!

0

3

Simplicity 5411881AYP

WELD, ROLLER MT, RH - BLK

$40.99

$

Usually ships in 2-12 days

0

4

Simplicity 5411882AYP

WELD, ROLLER MT, LH - BLK

$40.99

$

Usually ships in 2-12 days

0

5

Simplicity 5022846SM

BEARING-FLANGE, 5/8

$51.99

$

In Stock, Qty 20+

0

6

Simplicity 5022401SM

SPRING-COMPRESSION

$12.99

$

In Stock, only 1 left!

0

7

Simplicity 5020594SM

COLLAR, 3/4 DOUBLE SPLIT

$19.99

$

In Stock, only 2 left!

0

8

Simplicity 5023155SM

BUSHING, FLANGE, GFL - 20

$11.99

$

Usually ships in 2-12 days

0

9

Simplicity 5020785SM

ROLLER, DECK

$29.99

$

In Stock, Qty 20+

0

10

Simplicity 5025010X6SM

BOLT, 1/4-20 X 3/4 GD5 YZ

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE

Note: (5025391)

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

13

Simplicity 5025057SM

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

14

Simplicity 5025281SM

WASHER, 5/8 SAE

$3.99

$

In Stock, Qty 8

0

15

Simplicity 703590

WASHER, 3/8 SAE

Note: (5025156)

$3.99

$

In Stock, Qty 10

0

16

Simplicity 5025013X10SM

BOLT, 3/8-16 X 1-1/4 GD5

$3.99

$

In Stock, Qty 12

0

17

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0
