5901336 - Simplicity 72" Mower Deck 72" Mower Deck - Deck Lift (5302041BMF) Parts Diagram

72" Mower Deck

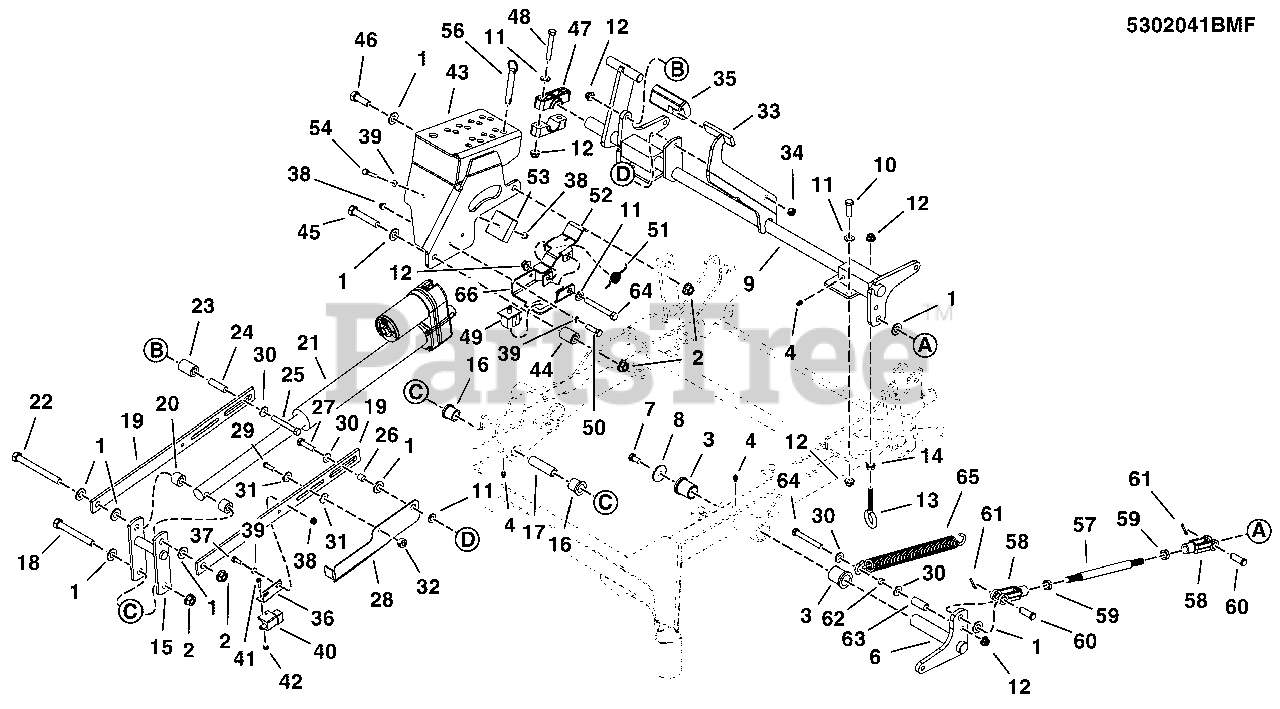

72" Mower Deck - Deck Lift (5302041BMF) Parts Diagram

  • Title

1

Simplicity 5025158SM

WASHER, 1/2 SAE

$3.99

$

In Stock, Qty 14

0

2

Simplicity 5025396SM

NUT, 1/2-13 HEX NYLOCK FLANGE

$3.49

$

In Stock, only 2 left!

0

3

Simplicity 5021541SM

BUSHING, FLANGE

$9.99

$

In Stock, Qty 10

0

4

Simplicity 5020095SM

GREASE FITTING, 1/4-28 STRAIGHT

$3.99

$

In Stock, only 3 left!

0

5

Simplicity 5403086DYP

WELD., DECK LIFT LEVER - RH - RED

Note: (Not Shown)

$54.99

$

Usually ships in 2-12 days

0

6

Simplicity 5403085DYP

WELD., DECK LIFT LEVER - LH - RED

$54.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025443SM

BOLT, 3/8-16 X 3/4, GD5, YZ WITH PATCH

$3.49

$

Usually ships in 2-12 days

0

8

Simplicity 5100548SM

WASHER, .390 X 1.50 X .109, YZ

$4.49

$

Usually ships in 2-12 days

0

9

Simplicity 5403087DYP

WELD, DECK LIFT SHAFT - OUTFRONT - RED

$372.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025013X10SM

BOLT, 3/8-16 X 1-1/4 GD5

$3.99

$

In Stock, Qty 12

0

11

Simplicity 5025156SM

WASHER, 3/8 SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 12

0

12

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 5025429SM

EYE BOLT, 3/8-16 X 4, 2 1/8 OF THREAD

$6.49

$

Usually ships in 2-12 days

0

14

Simplicity 5025128SM

NUT, 3/8-16 HEX SERRATED FLANGE

$3.49

$

In Stock, only 2 left!

0

15

Simplicity 5403243DYP

WELD, PIVOT LINK - ACTUATOR - RED

$31.99

$

Usually ships in 2-12 days

0

16

Simplicity 5101642YP

BUSHING, FLANGED, 3/4 X 1 X 1

$8.49

$

Usually ships in 2-12 days

0

17

Simplicity 5101186YP

SPACER, .51 X .75 X 2.66

$8.49

$

Usually ships in 2-12 days

0

18

Simplicity 5025017X32YP

BOLT, 1/2-13 X 4 GD5 YZ

$6.49

$

In Stock, only 4 left!

0

19

Simplicity 5403123DYP

BAR, ACTUATOR LINK - RED

$29.99

$

Usually ships in 2-12 days

0

20

Simplicity 5045178SM

SPACER, .52 X 1.00 X .75, CZ

$7.49

$

In Stock, Qty 6

0

21

Simplicity 5103120YP

ACTUATOR, 12" STROKE, 1600 LBS

$1134.99

$

Usually ships in 2-12 days

0

22

Simplicity 5025017X40SM

BOLT-1/2-13 X 5 GD5 YZ

$6.49

$

In Stock, only 2 left!

0

23

Simplicity 5101206YP

SPACER, .51 X 1.00 X 1.47 CZ

$10.99

$

Usually ships in 2-12 days

0

24

Simplicity 5101638YP

SPACER, .38 X .50 X 1.78

$7.99

$

Usually ships in 2-12 days

0

25

Simplicity 5025013X22SM

BOLT, 3/8-16 X 2-3/4 GD5 YZ

$4.49

$

In Stock, only 3 left!

0

26

Simplicity 5101640YP

SPACER, .38 X .50 X .50

$7.49

$

Usually ships in 2-12 days

0

27

Simplicity 5025013X12SM

BOLT, 3/8-16 X 1-1/2 GD5 YZ

$3.99

$

Usually ships in 2-12 days

0

28

Simplicity 5403790DYP

PLATE, SWITCH COVER - RED

$21.99

$

Usually ships in 2-12 days

0

29

Simplicity 5025213X8SM

PIN-CLEVIS, 5/16 X 1 YZ

$4.99

$

Usually ships in 2-12 days

0

30

Simplicity 703302

WASHER, 5/16 USS

Note: (5025337)

$4.49

$

In Stock, Qty 20+

0

31

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

32

Simplicity 5020047SM

COLLAR, 5/16 SET

$7.49

$

Usually ships in 2-12 days

0

33

Simplicity 5406109DYP

WELD, DECK LIFT PEDAL - RED

$40.99

$

Usually ships in 2-12 days

0

34

Simplicity 5025100SM

NUT, 3/8-16 HEX SIDE LOCK

$3.49

$

In Stock, Qty 20+

0

35

Simplicity 5104262YP

RUBBER, FOOT PEDAL

$10.99

$

Usually ships in 2-12 days

0

36

Simplicity 5403789DYP

PLATE, SWITCH MOUNT - RED

$9.49

$

Usually ships in 2-12 days

0

37

Simplicity 5025010X6SM

BOLT, 1/4-20 X 3/4 GD5 YZ

$3.99

$

In Stock, Qty 20+

0

38

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE

Note: (5025391)

$4.49

$

In Stock, Qty 20+

0

39

Simplicity 703332

WASHER, 1/4 SAE

Note: (5025154)

$4.49

$

In Stock, Qty 20+

0

40

Simplicity 1717050SM

SWITCH, PLUNGER, N.O./N.C.

$17.99

$

In Stock, Qty 20+

0

41

Simplicity 5025179X6SM

SCREW, #10-24 X 3/4 ROUND PHILLIPS

$3.99

$

In Stock, only 1 left!

0

42

Simplicity 703412

NUT, #10-24 HEX NYLON LOCK

Note: (5025271)

$4.49

$

In Stock, only 4 left!

0

43

Simplicity 5404358DYP

WELD, CUT HEIGHT BOX - RED

$199.99

$

Usually ships in 2-12 days

0

44

Simplicity 5101207YP

SPACER, .52 X 1.00 X 1.38 CZ

$12.99

$

Usually ships in 2-12 days

0

45

Simplicity 5025017X22SM

BOLT, 1/2-13 X 2-3/4 GD5 YZ

$5.99

$

In Stock, Qty 11

0

46

Simplicity 5025017X12YP

BOLT, 1/2-13 X 1-1/2 GD5 YZ

$3.99

$

Usually ships in 2-12 days

0

47

Simplicity 5100634SM

PIVOT BLOCK, PLASTIC

$7.49

$

Usually ships in 2-12 days

0

48

Simplicity 5025013X20SM

BOLT, 3/8-16 X 2-1/2 GD5 YZ
(Superseded to 703873)

$4.49

$

In Stock, only 3 left!

0

49

Simplicity 5103842YP

SWITCH, LOWER PRO, NC/NC

$14.99

$

Usually ships in 2-12 days

0

50

Simplicity 5025010X8SM

BOLT, 1/4-20 X 1", GD

$3.99

$

In Stock, only 2 left!

0

51

Simplicity 5103841YP

SPRING, TORSION, .591ID X .40LG X .95WR

$13.99

$

Usually ships in 2-12 days

0

52

Simplicity 5410817AYP

INDICATOR, DECK POSITION - BLK

$24.99

$

Usually ships in 2-12 days

0

53

Simplicity 5101883YP

FLASHER, 90 FPM, OUT FRONT MOWER

$69.99

$

Usually ships in 2-12 days

0

54

Simplicity 5025010X12SM

BOLT, 1/4-20 X 1-1/2, GD5

$2.99

$

Usually ships in 2-12 days

0

55

Simplicity 5101884YP

INDICATOR LAMP, RED LED

Note: (Not Shown)

$64.99

$

Usually ships in 2-12 days

0

56

Simplicity 5022045SM

PIN-COTTERLESS

$14.99

$

Usually ships in 2-12 days

0

57

Simplicity 5101156YP

ROD, DECK LIFT, OUTFRONT

$26.99

$

Usually ships in 2-12 days

0

58

Simplicity 5023174SM

CLEVIS, 1/2-20, STEEL, CLEAR ZINC

$16.99

$

In Stock, only 1 left!

0

59

Simplicity 5025089SM

NUT, 1/2-20 HEX JAM

$3.99

$

In Stock, Qty 20+

0

60

Simplicity 5025479YP

CLEVIS PIN, 1/2 X 1.36 SAE STANDARD

$3.99

$

In Stock, only 2 left!

0

61

Simplicity 703312

PIN, COTTER, 3/32X.75

Note: (80002736)

$3.99

$

In Stock, Qty 20+

0

62

Simplicity 5041930SM

SPACER, .38 X .50 X .27, CZ

$4.99

$

Usually ships in 2-12 days

0

63

Simplicity 5048264SM

SPACER, .39 X .63 X 1.50, CZ

$5.99

$

Usually ships in 2-12 days

0

64

Simplicity 5025013X24SM

BOLT, 3/8-16 X 3 GD5 YZ

$3.99

$

In Stock, only 1 left!

0

65

Simplicity 5023355SM

SPRING-EXT, 1.00 ODX13.25LGX.177WR, BLK

$49.99

$

In Stock, only 1 left!

0

66

Simplicity 5410814AYP

WELD, SWITCH MOUNT - BLK

$26.99

$

Usually ships in 2-12 days

0
