5901306 - Simplicity Cobalt 61" Zero-Turn Mower, 32hp Briggs & Stratton Instrument Control Panel (5303508_5303649) Parts Diagram

Cobalt 61" Zero-Turn Mower, 32hp Briggs & Stratton

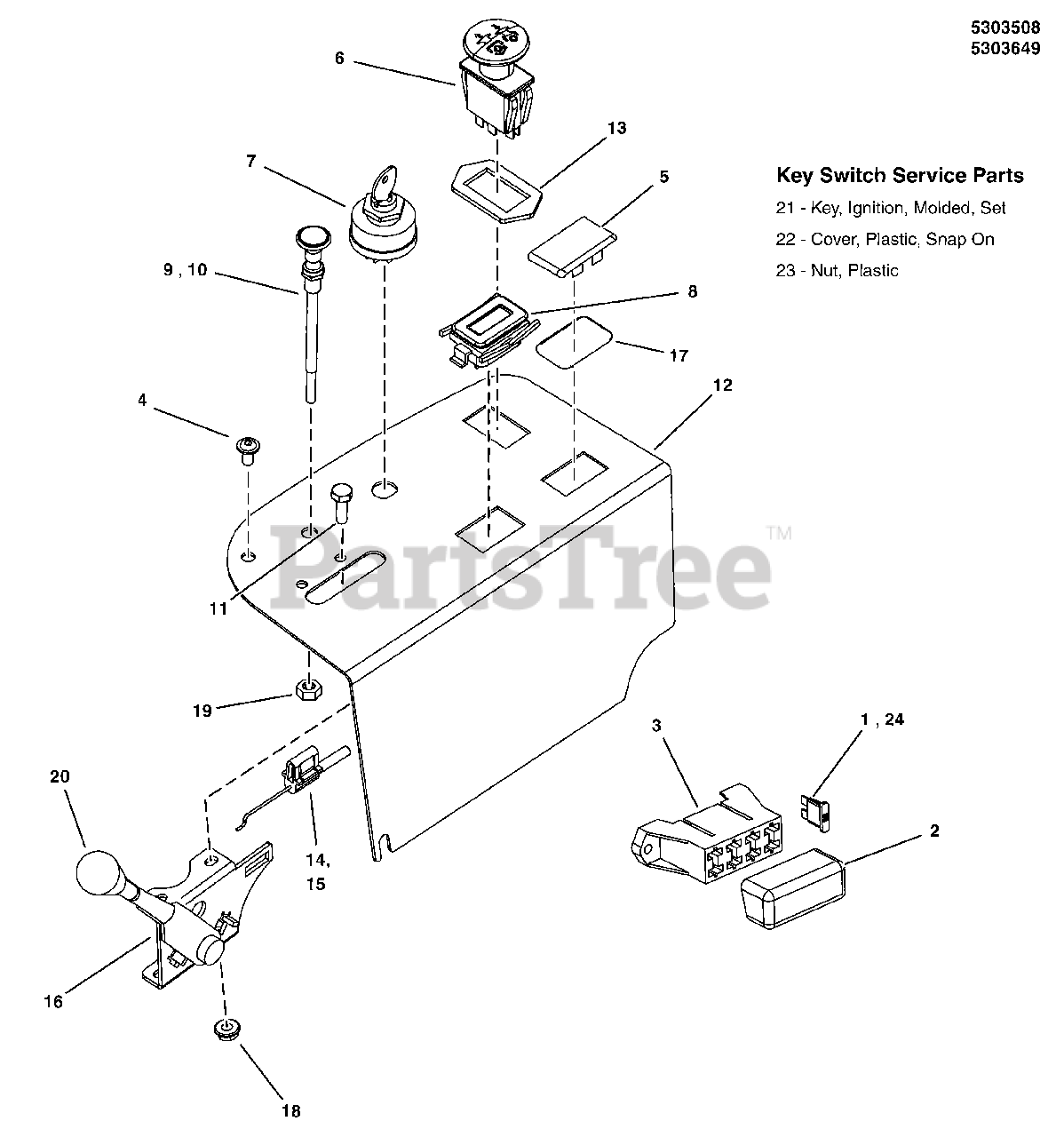

Instrument Control Panel (5303508_5303649) Parts Diagram

  • Title

1

Simplicity 5021603SM

FUSE, ATO, 20 AMP (SV)

$4.99

$

In Stock, only 2 left!

0

2

Simplicity 5022805SM

COVER, VINYL FUSEBLOCK

$6.49

$

Usually ships in 2-12 days

0

3

Simplicity 5021518SM

FUSE, BLOCK

$11.99

$

Usually ships in 2-12 days

0

4

Simplicity 5025299X4SM

SCREW, ALLEN HEAD 1/4-20 X .500 ZINC PHOS

$4.99

$

In Stock, only 2 left!

0

5

Simplicity 1709188SM

PLUG, Hole, Electric Lift (Hydro models only)

$4.99

$

In Stock, only 1 left!

0

6

Simplicity 5022180SM

SWITCH, Blade Engage
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

7

Simplicity 5020927YP

SWITCH, IGNITION, 6 POST
(Superseded to 1686734SM)

$32.99

$

In Stock, Qty 20+

0

8

HOUR METER, ASSEMBLE

Note: (* See Footnote)

$

$

Not available

9

Simplicity 5046501SM

CABLE, Choke

Note: (Briggs & Stratton 49R977 Engines)

$55.99

$

In Stock, only 1 left!

0

10

Simplicity 5047779SM

CABLE, CHOKE CONTROL, 51 (Z)

Note: (Briggs & Stratton 543777 Engines)

$52.99

$

In Stock, Qty 5

0

11

Simplicity 5025179X6SM

SCREW, #10-24 X 3/4", ROUND PHILLIPS

$3.99

$

In Stock, only 1 left!

0

12

Simplicity 5411933AYP

PANEL, CONTROL, IS2100Z - BLK

$

$

Not available

13

Simplicity 5022222SM

RING, SWITCH RETAINER, PTO

$4.49

$

In Stock, only 1 left!

0

14

Simplicity 5101073SM

CABLE, THROTTLE, 42"

Note: (Briggs & Stratton 49R977 Engines)

$33.99

$

In Stock, only 1 left!

0

15

Simplicity 5101076SM

CABLE, THROTTLE, 47"

Note: (Briggs & Stratton 543777 Engines)

$35.99

$

Usually ships in 2-12 days

0

16

Simplicity 5101537SM

LEVER, THROTTLE CONTROL, HEAVY DUTY

$48.99

$

Usually ships in 2-12 days

0

17

Simplicity 5022269SM

O-RING, 7/8" ID X 1/16" W

$3.49

$

Usually ships in 2-12 days

0

18

Simplicity 703412

NUT, Nylock, #10-24, GR2

Note: (5025271)

$4.49

$

Usually ships in 2-12 days

0

19

Simplicity 5025035SM

NUT, 3/8 - 24 HEX

$3.49

$

Usually ships in 2-12 days

0

20

Simplicity 5046360X1SM

THROTTLE CONTROL HANDLE/KNOB

$10.99

$

In Stock, only 1 left!

0

21

Simplicity 5022789YP

KEY, IGNITION MOLDED SET (SV)
(Superseded to 1717163SM)

$8.99

$

In Stock, Qty 20+

0

22

Simplicity 5022790YP

COVER, PLASTIC, SNAP ON (SV)
(Superseded to 7023506SM)

$4.49

$

Usually ships in 2-12 days

0

23

Simplicity 5022791SM

NUT, PLASTIC (SV)

$3.49

$

In Stock, only 1 left!

0

24

Simplicity 5101935YP

FUSE, ATO, 15 AMP (SV)

$4.49

$

Usually ships in 2-12 days

0
