5901306 - Simplicity Cobalt 61" Zero-Turn Mower, 32hp Briggs & Stratton Hydraulic Group (5303399) Parts Diagram

Cobalt 61" Zero-Turn Mower, 32hp Briggs & Stratton

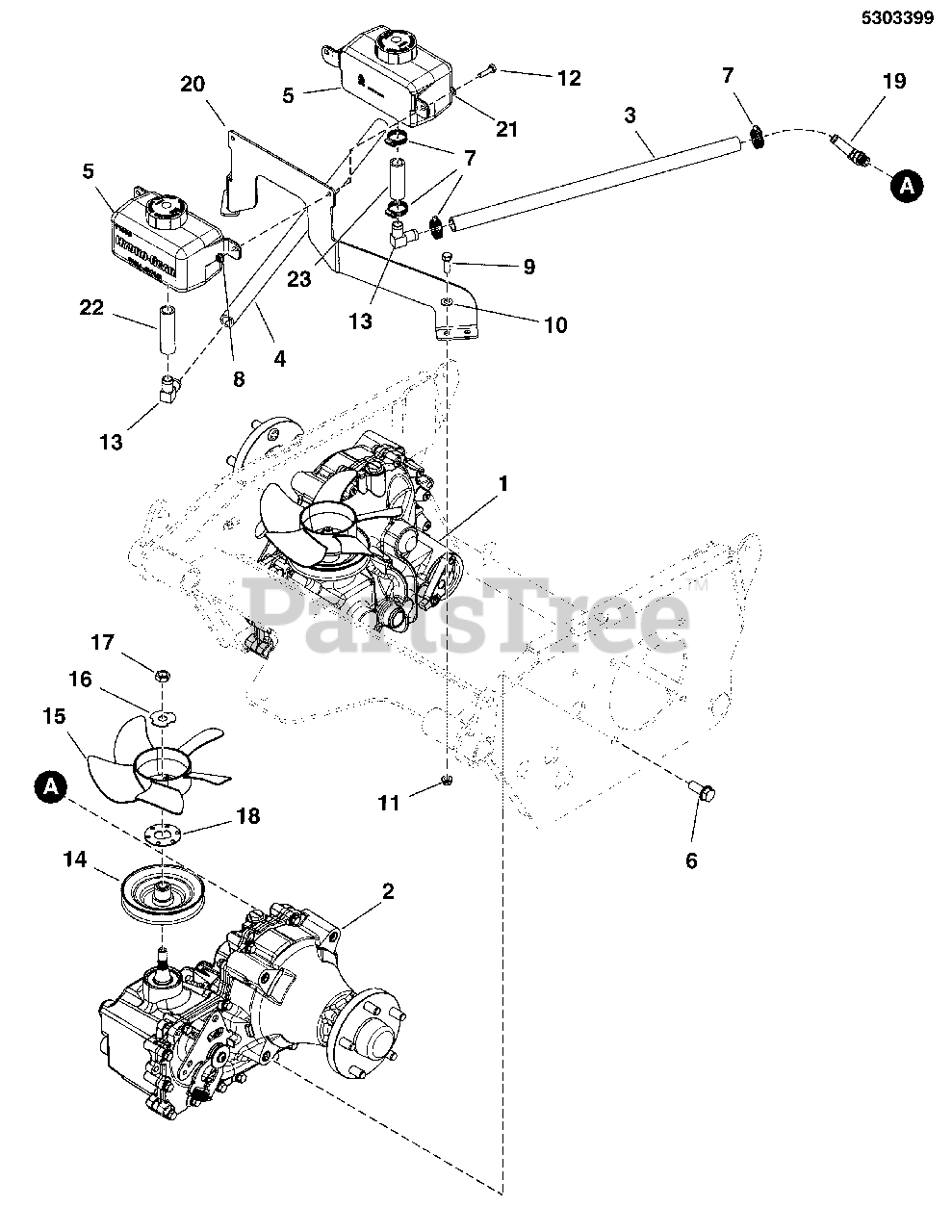

Hydraulic Group (5303399) Parts Diagram

  • Title

1

Simplicity 5103963YP

ZT-5400, LONG AXLE, RH, 1015-1057R
(Superseded to 84008008)

$2336.99

$

Usually ships in 2-12 days

0

2

Simplicity 5103964YP

ZT-5400, LONG AXLE, LH, 1015-1057L
(Superseded to 84008001)

$2222.99

$

Usually ships in 2-12 days

0

3

Simplicity 5050933X19YP

HOSE, 5/8, PUSH-LOCK, 19.00

$25.99

$

Usually ships in 2-12 days

0

4

Simplicity 5050933X22YP

HOSE, 5/8, PUSH-LOCK, 22.00

$37.99

$

Usually ships in 2-12 days

0

5

Simplicity 5101998YP

HYDRO TANK, HYDRO-GEAR 71938, 1 LITER

$68.99

$

In Stock, only 2 left!

0

6

Simplicity 5025535YP

BOLT, 1/2-13 X 1-1/4, SF, PLT W/PATCH

$7.99

$

Usually ships in 2-12 days

0

7

Simplicity 5021164SM

CLAMP, #10 HOSE, STAINLESS

$3.99

$

In Stock, only 1 left!

0

8

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE

Note: (5025391)

$4.49

$

In Stock, Qty 20+

0

9

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

10

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

11

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 5025010X8SM

BOLT, 1/4-20 X 1", GD

$3.99

$

In Stock, only 2 left!

0

13

Simplicity 5023119SM

FITTING, 90 DEG, 5/8

$26.99

$

Usually ships in 2-12 days

0

14

Simplicity 5102873YP

PULLEY, ZT5400 (53179)

$88.99

$

Usually ships in 2-12 days

0

15

Simplicity 5102874YP

FAN, ZT5400

$27.99

$

In Stock, only 2 left!

0

16

Simplicity 5102914YP

WASHER, ZT5400, SLOTTED

$3.99

$

In Stock, only 1 left!

0

17

Simplicity 5102916YP

NUT, ZT5400

$3.49

$

In Stock, only 1 left!

0

18

Simplicity 5102917YP

SPACER, ANTI ROTATE, ZT5400

$5.99

$

In Stock, only 1 left!

0

19

Simplicity 5103923YP

FITTING, 45, 5/8 TUBE TO 7/8-14 O-RING

$22.99

$

Usually ships in 2-12 days

0

20

Simplicity 5411349AYP

PLATE, TANK MOUNT - BLK

$98.99

$

Usually ships in 2-12 days

0

21

Simplicity 703332

WASHER, 1/4 SAE

Note: (5025154)

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 5050933X3YP

HOSE, 5/8, PUSH-LOCK, 3.00

$7.49

$

Usually ships in 2-12 days

0

23

Simplicity 5050933X2P5YP

HOSE, 5/8, PUSH-LOCK, 2.50

$6.99

$

Usually ships in 2-12 days

0
