5901305 - Simplicity Cobalt 61" Zero-Turn Mower, 26hp Briggs & Stratton Transaxle Drive Group (5303397) Parts Diagram

Cobalt 61" Zero-Turn Mower, 26hp Briggs & Stratton

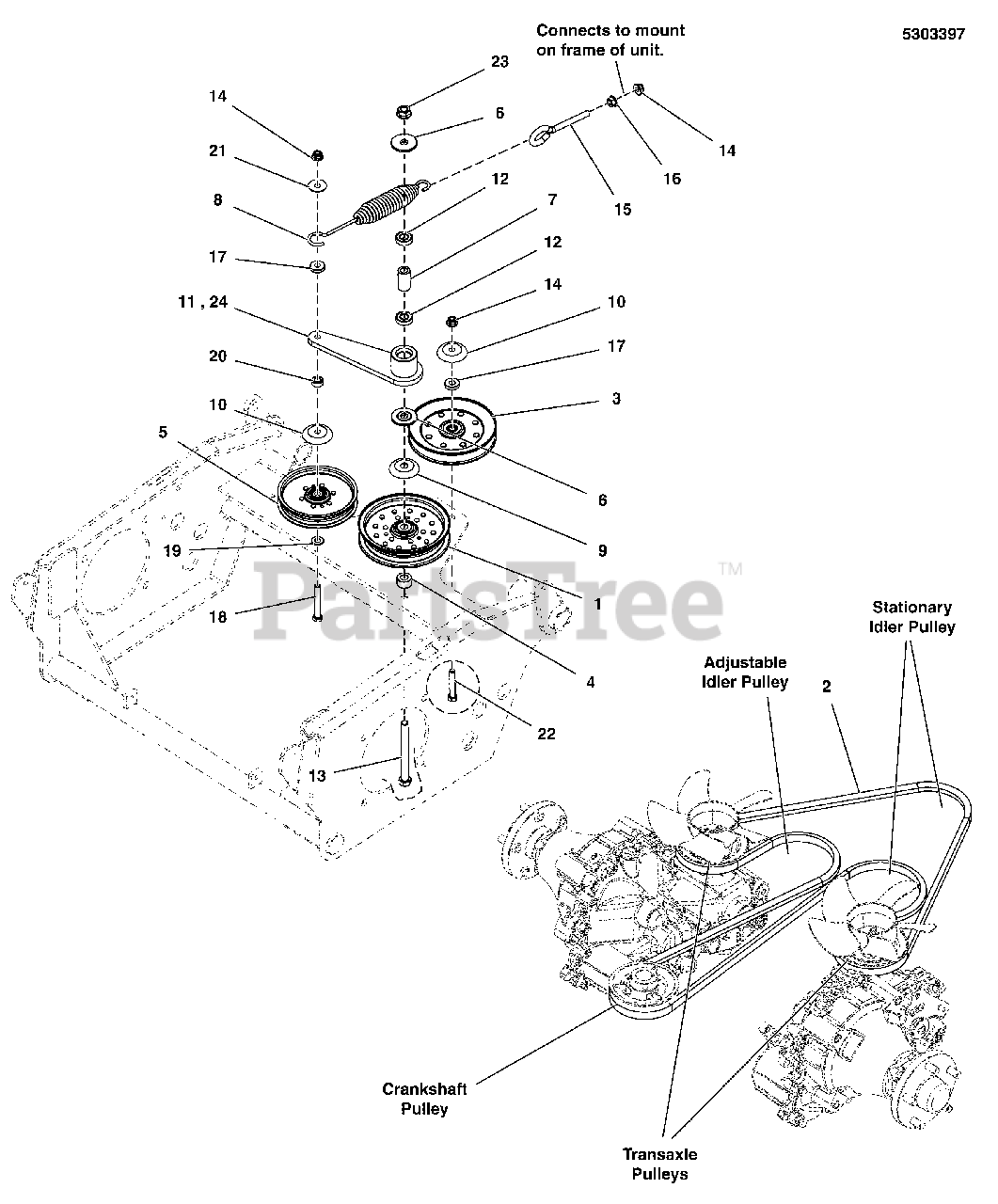

Transaxle Drive Group (5303397) Parts Diagram

  • Title
1

Simplicity 5101794YP

PULLEY, IDLER, 5" OD, 1"FACE, 5.75 FL

$57.99

$

In Stock, only 2 left!

0

2

Simplicity 5103907YP

BELT, B-SEC, 123"EL, ARAMID, WRPD

$100.99

$

In Stock, only 1 left!

0

3

Simplicity 5102093YP

PULLEY-IDLER-V, 5.83OB, .38ID, .94W, STL

$52.99

$

In Stock, Qty 5

0

4

Simplicity 5101162YP

SPACER, .52 X 1.00 X .56, CZ

$7.49

$

In Stock, Qty 8

0

5

Simplicity 5103789YP

PULLEY, C-SEC, V-IDLER, 6.25"ODX3/8ID

$85.99

$

In Stock, Qty 6

0

6

Simplicity 5103262YP

SPACER, IDLER ARM, 1/2, PM

$7.99

$

In Stock, Qty 15

0

7

Simplicity 5103812YP

SPACER, .52 X .84 X 1.53, PM

$7.99

$

In Stock, Qty 7

0

8

Simplicity 5100632YP

SPRING-EXT, 1.25OD X 9.3LG X .142WR, BLK

Note: (Coil-to-coil measurement: 6-3/4")

$38.99

$

Usually ships in 2-12 days

0

9

Simplicity 5101103SM

SHIELD, PULLEY BEARING, CZ

$10.99

$

In Stock, Qty 20+

0

10

Simplicity 5103787YP

SHIELD, BEARING PULLEY, 3/8ID, CZ

$7.49

$

In Stock, only 1 left!

0

11

IF UNIT IS NOT ALREADY UPDATED, USE KIT # 5600763

Note: (S/N: 2016777877 & Below)

$

$

Not available

12

Simplicity 7078243YP

BEARING, BALL, AXLE

$10.99

$

In Stock, Qty 12

0

13

Simplicity 5025017X40SM

BOLT-1/2-13 X 5 GD5 YZ

$6.49

$

In Stock, only 1 left!

0

14

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 5023497SM

EYE BOLT, 3/8-16 X 5, 2.88THRD (5021812)

$9.49

$

In Stock, only 1 left!

0

16

Simplicity 5025128SM

NUT, 3/8-16 HEX SERRATED FLANGE

$3.49

$

In Stock, only 2 left!

0

17

Simplicity 5044960SM

SPACER, .39 X 1.00 X .25

$5.49

$

In Stock, Qty 7

0

18

Simplicity 5025013X22SM

BOLT, 3/8-16 X 2-3/4 GD5 YZ

$4.49

$

In Stock, Qty 5

0

19

Simplicity 5025293SM

WASHER, 3/8 GD.9 FLAT

$3.99

$

In Stock, Qty 5

0

20

Simplicity 5046860SM

SPACER, .39 X 1.00 X .50, CZ

$6.49

$

In Stock, only 1 left!

0

21

Simplicity 5025165SM

WASHER-3/8 FENDER

$3.99

$

In Stock, only 2 left!

0

22

Simplicity 5025013X18SM

BOLT, 3/8-16 X 2-1/4 GD5 YZ

$3.99

$

In Stock, only 4 left!

0

23

Simplicity 5025396SM

NUT, 1/2-13 HEX NYLOCK FLANGE

$3.49

$

In Stock, only 2 left!

0

24

Simplicity 5412787AYP

WELD, IDLER ARM, PUMP DRIVE, 6.38 - BLK

Note: (S/N: 2016777878 & Above)

$79.99

$

Usually ships in 2-12 days

0
