5901277 - Massey Ferguson 2900 Series 48" Zero-Turn Mower Decal Group - Safety & Operation Export (5302846) Parts Diagram

2900 Series 48" Zero-Turn Mower

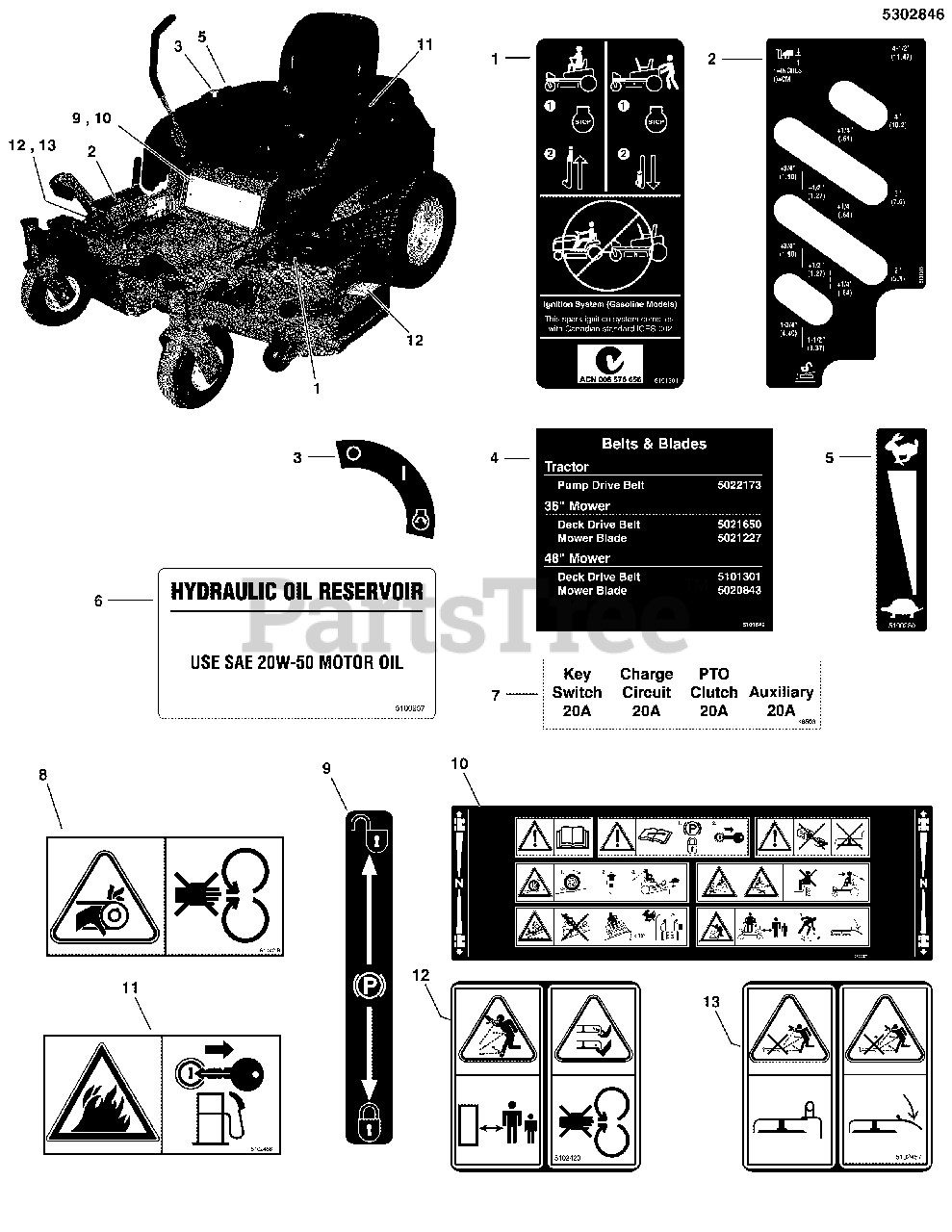

Decal Group - Safety & Operation Export (5302846) Parts Diagram

  • Title

1

Simplicity 5101991YP

DECAL, TRANSAXLE RELEASE

$7.99

$

Usually ships in 2-12 days

0

2

Simplicity 5101315YP

DECAL, CUT HEIGHT, S50X

$

$

Not available

3

Simplicity 5048970SM

DECAL, IGNITION SWITCH

$11.99

$

In Stock, only 1 left!

0

4

Simplicity 5103196YP

DECAL, BELT & BLADE, S50X iCD

Note: (Located under seat plate)

$10.99

$

Usually ships in 2-12 days

0

5

Simplicity 5100280SM

DECAL, THROTTLE CONTROL

$9.49

$

In Stock, only 1 left!

0

6

Simplicity 5100957SM

DECAL, HYDRAULIC OIL, SAE 20W50
(Superseded to 84002270)

Note: (Located under seat plate)

$6.49

$

Usually ships in 2-12 days

0

7

Simplicity 5046503SM

DECAL, FUSE LOCATION

Note: (S/N: 2016499706 & Below - Located on instrument control panel)

$6.49

$

Usually ships in 2-12 days

0

8

Simplicity 5061042SM

DECAL, CE DANGER

Note: (Located near transaxle fans)

$13.99

$

Usually ships in 2-12 days

0

9

Simplicity 5102628YP

DECAL, PARKING BRAKE SYMBOLS

$12.99

$

Usually ships in 2-12 days

0

10

Simplicity 5102627YP

DECAL, MAIN SAFETY, ANSI CE

$26.99

$

Usually ships in 2-12 days

0

11

Simplicity 5102456YP

DECAL, FIRE ANSI EXPORT

$9.99

$

Usually ships in 2-12 days

0

12

Simplicity 5102420YP

DECAL, DANGER, MOWER DECK, ANSI EXP

$10.99

$

Usually ships in 2-12 days

0

13

Simplicity 5102457YP

DECAL, DANGER DISCHARGE ANSI EXPORT

$10.99

$

Usually ships in 2-12 days

0
