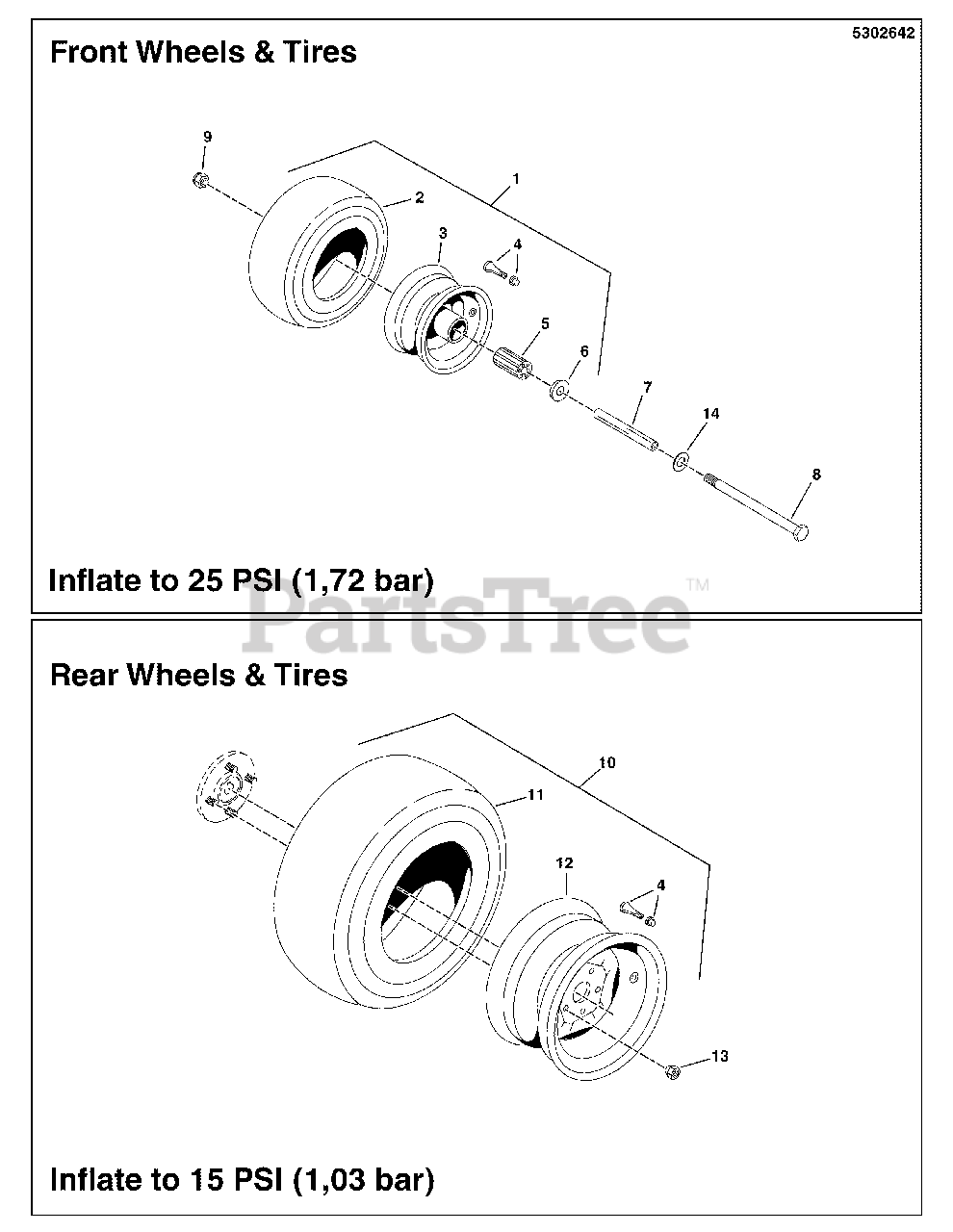

5901276 - Massey Ferguson 2900 Series 48" Zero-Turn Mower Wheel & Tire Group (5302642) Parts Diagram

2900 Series 48" Zero-Turn Mower

Wheel & Tire Group (5302642) Parts Diagram

  • Title

1

Simplicity 5101418YP

WHEEL, CASTER, 11 X 4.0-5 SILVER BEAD LO

$127.99

$

In Stock, Qty 11

0

2

Simplicity 5022433X1SM

TIRE, 11 X 4.0-5

$75.99

$

In Stock, Qty 18

0

3

Simplicity 5101418X2YP

WHEEL ASSEMBLY, 11 X 4.0 - 5 TIRE CMP (SV)

$84.99

$

In Stock, only 1 left!

0

4

Simplicity 2172353

VALVE STEM & CAP ASSEMBLY (SV)
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

5

Simplicity 5022579SM

BEARING, ROLLER (SV)

$14.99

$

In Stock, Qty 6

0

6

Simplicity 5101418X1YP

BEARING, CASTER WHEEL, 11 X 4.0 - 5 BEAD LOCK (SV)

$28.99

$

In Stock, Qty 14

0

7

Simplicity 5045996SM

CASTER AXLE DDSH

$15.99

$

In Stock, Qty 18

0

8

Simplicity 5025017X56YP

BOLT, 1/2-13 X 7 GD8 YZ

$14.99

$

In Stock, Qty 8

0

9

Simplicity 5025396SM

NUT, 1/2-13 HEX NYLOCK FLANGE

$3.49

$

In Stock, only 2 left!

0

10

Simplicity 5103019YP

TIRE ASM, REAR, 20 X 10.0 X 10

$373.99

$

Usually ships in 2-12 days

0

11

Simplicity 5101345X1YP

TIRE, REAR, 20 X 10.0 X 10

$262.99

$

Usually ships in 2-12 days

0

12

Simplicity 5102329X2YP

WHEEL, 10X7.00 4/4 SOLID F237 2.625 OS (SV)

$259.99

$

Usually ships in 2-12 days

0

13

Simplicity 5020601SM

NUT, 1/2-20, FOR WHEEL BOLT SILVER

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 5025158SM

WASHER, 1/2 SAE

$3.99

$

In Stock, Qty 13

0
