5901276 - Massey Ferguson 2900 Series 48" Zero-Turn Mower Motion Control Group (5300918) Parts Diagram

2900 Series 48" Zero-Turn Mower

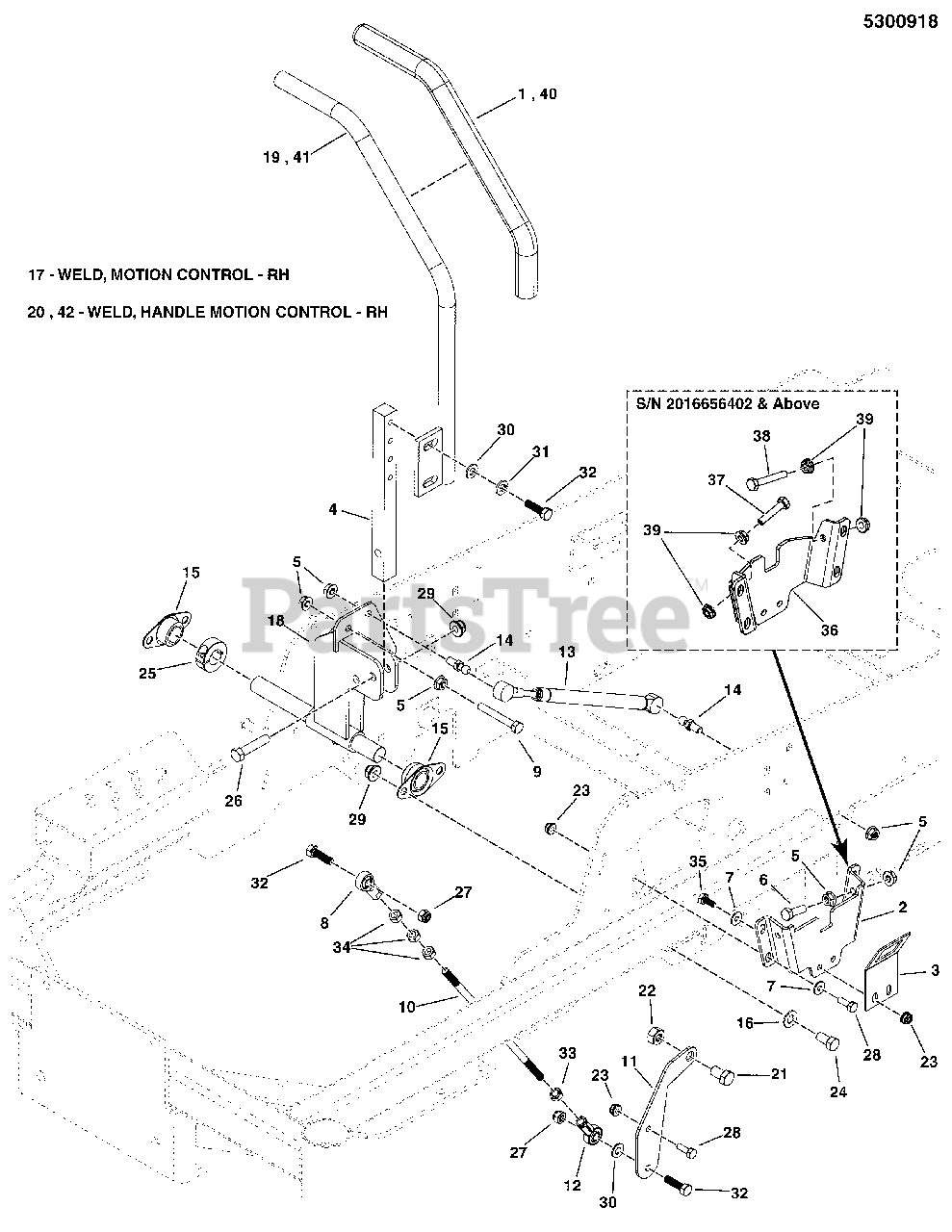

Motion Control Group (5300918) Parts Diagram

  • Title

1

Simplicity 5022068SM

GRIP, FOAM, 3/4 ID, 16 LONG

Note: (S/N: 2017499983 & Below)

$11.99

$

Usually ships in 2-12 days

0

2

Simplicity 5402862AYP

NEUTRAL LOCK, SNAPPER PRO 36-44 - BLK

Note: (S/N: 2016656401 & Below)

$21.99

$

Usually ships in 2-12 days

0

3

Simplicity 5402984AYP

SWITCH PLATE, MOTION CONTROLS - BLK

$9.49

$

Usually ships in 2-12 days

0

4

Simplicity 5103106AYP

MOUNT, CONTROL ARM

$54.99

$

Usually ships in 2-12 days

0

5

Simplicity 5025127SM

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)

Note: (Qty: 16 - S/N: 2016656401 & Below)

$3.49

$

In Stock, only 4 left!

0

6

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 703585)

Note: (S/N: 2016656401 & Below)

$4.99

$

In Stock, only 1 left!

0

7

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 20+

0

8

Simplicity 5104578YP

BALL JOINT 5/16-24 RH FEMALE STAMPED STL

$11.99

$

In Stock, only 2 left!

0

9

Simplicity 5025011X18SM

BOLT, 5/16-18 X 2-1/4" GD5 YZ

$3.99

$

In Stock, only 1 left!

0

10

Simplicity 5046420SM

ROD, HYDRO LINKAGE

$11.99

$

Usually ships in 2-12 days

0

11

Simplicity 5402910AYP

PLATE, CONTROL TRANSAXLE - BLK

$5.49

$

Usually ships in 2-12 days

0

12

Simplicity 5104579YP

BALL JOINT 5/16-24 LH FEMALE STAMPED STL

$

$

Not available

13

Simplicity 5100940SM

DAMPENER, CONTROL,#(P6709/P3610)

$55.99

$

In Stock, only 2 left!

0

14

Simplicity 5100941SM

BALL STUD, 5/16 X .50,# PC-477-2)

$4.49

$

In Stock, Qty 12

0

15

Simplicity 5021098SM

BEARING, BRONZE FLANGE, 3/4

$13.99

$

In Stock, Qty 5

0

16

Simplicity 5025156SM

WASHER, 3/8 SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0

17

Simplicity 5408134AYP

WELD, MOTION CONTROL, RH - BLK

$61.99

$

Usually ships in 2-12 days

0

18

Simplicity 5408135AYP

WELD, MOTION CONTROL, LH - BLK

$63.99

$

Usually ships in 2-12 days

0

19

Simplicity 5047055AYP

WELD, HANDLE MOTION CONTROL, LH - BLK

Note: (S/N: 2017499983 & Below)

$61.99

$

In Stock, only 1 left!

0

20

Simplicity 5047056AYP

WELD, HANDLE MOTION CONTROL, RH - BLK

Note: (S/N: 2017499983 & Below)

$61.99

$

Usually ships in 2-12 days

0

21

Simplicity 5025015X6SM

BOLT, 7/16-14 X 3/4, GD 5 YZ

$3.99

$

Usually ships in 2-12 days

0

22

Simplicity 5025044SM

NUT, 7/16-14 HEX TOP LOCK

$4.49

$

Usually ships in 2-12 days

0

23

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 5025013X6SM

BOLT, 3/8-16 X 3/4 GD5 YZ

$3.99

$

Usually ships in 2-12 days

0

25

Simplicity 5010114SM

COLLAR, 3/4" SPLIT

$19.99

$

Usually ships in 2-12 days

0

26

Simplicity 5025013X14SM

BOLT, 3/8-16 X 1-3/4 GD5

$3.99

$

In Stock, only 2 left!

0

27

Simplicity 5025057SM

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

28

Simplicity 5025010X6SM

BOLT, 1/4-20 X 3/4 GD5 YZ

$3.99

$

In Stock, Qty 20+

0

29

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

30

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

31

Simplicity 5025170SM

WASHER, 5/16 LOCK YZ

$3.99

$

Usually ships in 2-12 days

0

32

Simplicity 5025011X9SM

BOLT, 5/16-18 X 1-1/8 GD5

$3.99

$

In Stock, only 1 left!

0

33

Simplicity 5023212SM

NUT, 5/16-24 HEX, LH

$3.49

$

In Stock, only 2 left!

0

34

Simplicity 5025033SM

NUT, 5/16-24 HEX
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

35

Simplicity 703338

BOLT,1/4-20X5/8

$3.99

$

Usually ships in 2-12 days

0

36

Simplicity 5411903A

NEUTRAL LOCK, 50XT - BLK

Note: (S/N: 2016656402 & Above)

$

$

Not available

37

Simplicity 5025068X10

BOLT, 1/4-20 X 1-1/4 GD5 TFL

Note: (S/N: 2016656402 & Above)

$

$

Not available

38

Simplicity 5025068X14

BOLT, 1/4-20 X 1-3/4 GD5 TFL

Note: (S/N: 2016656402 & Above)

$

$

Not available

39

Simplicity 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

Note: (S/N: 2016656402 & Above)

$4.49

$

Usually ships in 2-12 days

0

40

Snapper 5104722

GRIP, FOAM, 1" ID, 16" LONG
(Superseded to 5104722FS)

Note: (S/N: 2017499984 & Above)

$10.99

$

Usually ships in 2-12 days

0

41

Simplicity 5414429A

WELD, HANDLE MOTION CNTRL, 17.0, 1.0, LH - BLK
(Superseded to 5414429AA)

Note: (S/N: 2017499984 & Above)

$48.99

$

Usually ships in 2-12 days

0

42

Simplicity 5414430A

WELD, HANDLE MOTION CNTRL, 17.0, 1.0, RH - BLK
(Superseded to 5414430AYP)

Note: (S/N: 2017499984 & Above)

$48.99

$

Usually ships in 2-12 days

0
