5901276 - Massey Ferguson 2900 Series 48" Zero-Turn Mower Fuel Tank & Mount Group (5302126) Parts Diagram

2900 Series 48" Zero-Turn Mower

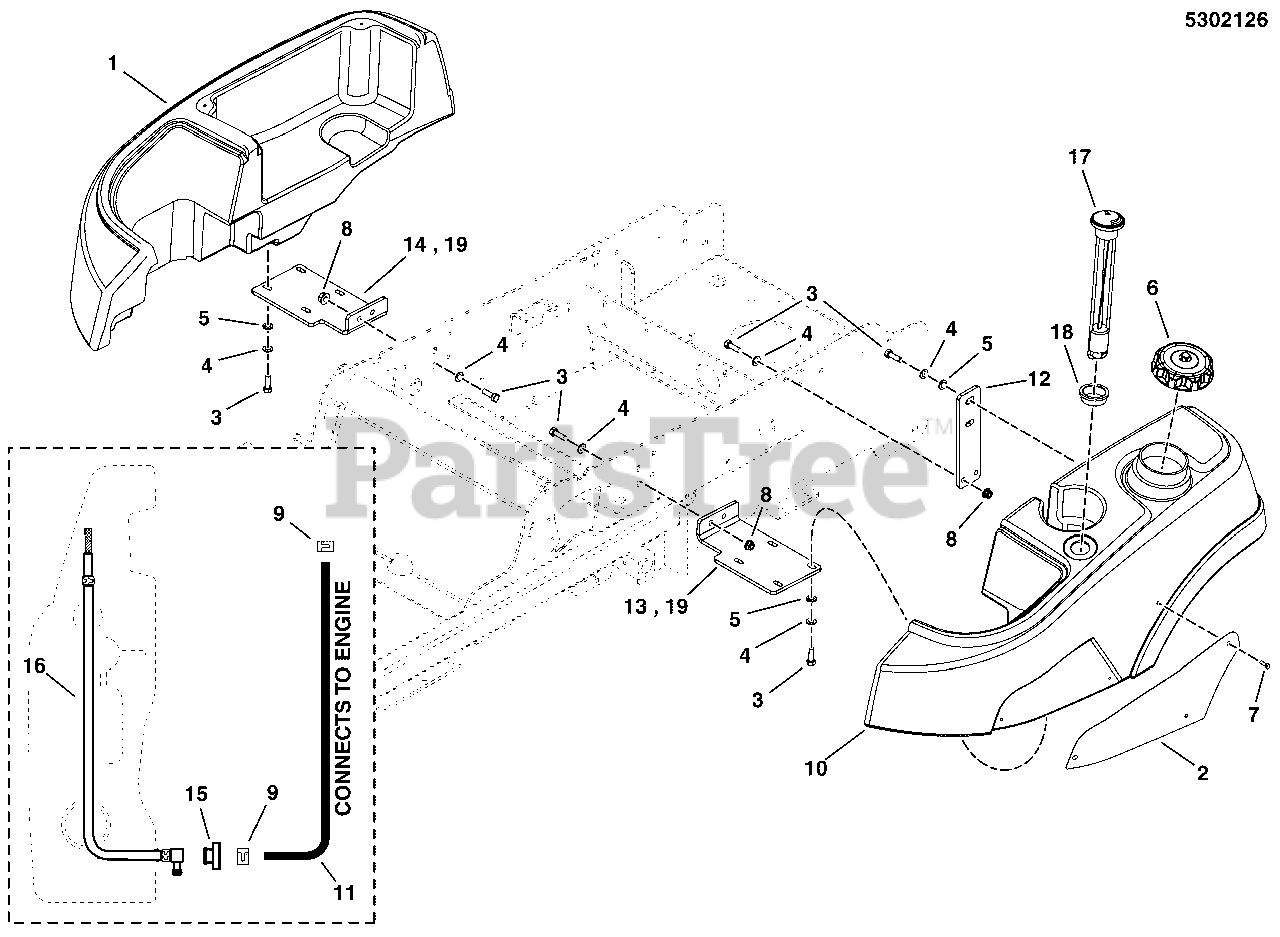

Fuel Tank & Mount Group (5302126) Parts Diagram

  • Title
1

Simplicity 5048752SM

TANK, FENDER, CONZ, RH

$279.99

$

Usually ships in 2-12 days

0

2

Simplicity 5048909DYP

PLATE,FUEL TANK BADGE

$29.99

$

In Stock, only 2 left!

0

3

Simplicity 5025011X6SM

BOLT, 5/16-18 X 3/4 GD5

$3.99

$

In Stock, Qty 7

0

4

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, only 4 left!

0

5

Simplicity 5025170SM

WASHER, 5/16 LOCK YZ

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 5103005YP

FUEL CAP, 3-1/2", MANAGED VENT OUT, 12"
(Superseded to 1761224YP)

$48.99

$

In Stock, Qty 7

0

7

Simplicity 5025386SM

SCREW, #10-24 X 3/8 ALLEN BHBZ

$3.99

$

In Stock, only 2 left!

0

8

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 5020835SM

CLAMP, HOSE, EXTERNAL, 1/2 - RED
(Superseded to 691038)

$3.99

$

In Stock, Qty 17

0

10

Simplicity 5103167YP

TANK, FUEL, LH

$557.99

$

Usually ships in 2-12 days

0

11

Simplicity 5050831X20YP

HOSE, 1/4" FUEL, 20.00"

$7.99

$

Usually ships in 2-12 days

0

12

Simplicity 5406626AYP

MOUNT, FUEL TANK, REAR - BLK

$11.99

$

Usually ships in 2-12 days

0

13

Simplicity 5406627AYP

MOUNT, FUEL TANK, FRONT - BLK

Note: (S/N: 2016656401 & Below)

$40.99

$

Usually ships in 2-12 days

0

14

Simplicity 5406628AYP

MOUNT, FENDER, FRONT - BLK

Note: (S/N: 2016656401 & Below)

$40.99

$

Usually ships in 2-12 days

0

15

Simplicity 1726400SM

BUSHING-FUEL TANK RED RUBBER (SV)
(Superseded to 1654930SM)

$7.99

$

In Stock, Qty 20+

0

16

Simplicity 5101144SM

PICKUP TUBE ASM, FUEL TANK (SV)

$35.99

$

In Stock, only 1 left!

0

17

Simplicity 5023197SM

GAUGE, FUEL (SV)

$57.99

$

In Stock, only 4 left!

0

18

Simplicity 5022917X1SM

GROMMET, FUEL GAUGE (SV)

$6.99

$

In Stock, Qty 5

0

19

Simplicity 5411923A

MOUNT, FENDER, FRONT - BLK

Note: (S/N: 2016656402 & Above)

$

$

Not available
