5901276 - Massey Ferguson 2900 Series 48" Zero-Turn Mower Engine & PTO Group (5302342) Parts Diagram

2900 Series 48" Zero-Turn Mower

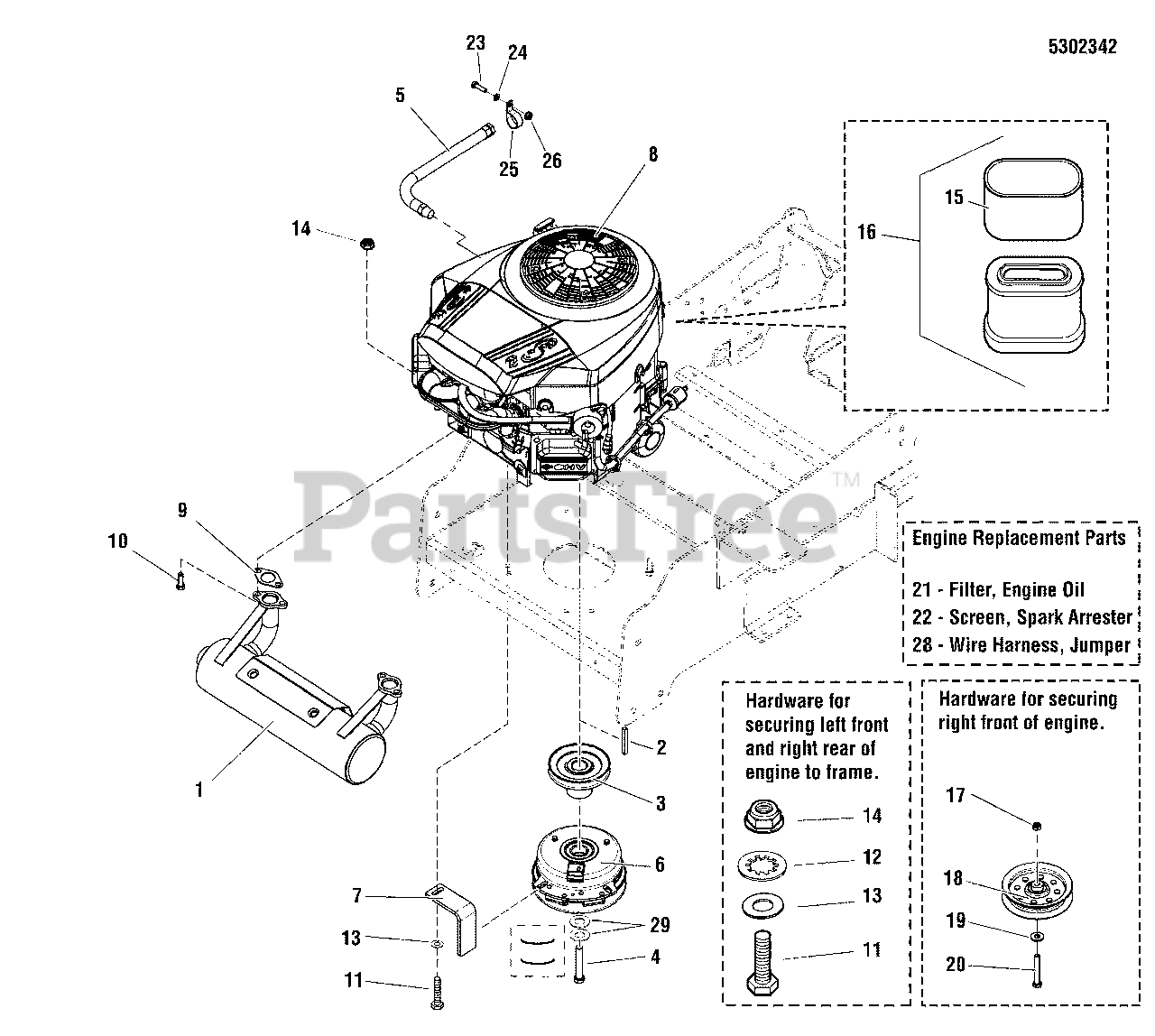

Engine & PTO Group (5302342) Parts Diagram

  • Title

1

Simplicity 593249

MUFFLER, RIGHT OUTLET ASSY
(Superseded to 706900)

$222.99

$

Usually ships in 2-12 days

0

2

Simplicity 5050407X8SM

KEY, 1/4 SQ. X 1.00

$3.99

$

In Stock, only 1 left!

0

3

Simplicity 5101337YP

PULLEY, PUMP DRIVE, 4.857 OB X 1" BORE

$37.99

$

In Stock, only 1 left!

0

4a

Simplicity 5102865YP

BOLT, CRANKSHAFT, 7/16 X 2-3/4

Note: (S/N: 2014745413 & Below)

$5.49

$

In Stock, only 2 left!

0

4b

Simplicity 5102866YP

BOLT, CRANKSHAFT, 7/16 X 3

Note: (S/N: 2014745414 & Above)

$5.49

$

In Stock, only 1 left!

0

5

Simplicity 5048681SM

HOSE, OIL DRAIN

$18.99

$

In Stock, only 1 left!

0

6

Simplicity 5100915SM

CLUTCH, # 5219-34A, ELECTRIC, IS500Z

$330.99

$

Usually ships in 2-12 days

0

7

Simplicity 5404967AYP

ANCHOR, CLUTCH - BLK

$32.99

$

Usually ships in 2-12 days

0

8

ENGINE, B&S

$

$

Not available

9

Simplicity 690970

GASKET, EXHAUST

$4.99

$

In Stock, Qty 20+

0

10

Simplicity 690341

SCREW

$5.99

$

In Stock, only 3 left!

0

11

Simplicity 5025011X14SM

BOLT, 5/16-18 X 1-3/4 GD5 YZ

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 5025188SM

WASHER, 5/16" INT. TOOTH LOCK

$3.99

$

In Stock, only 1 left!

0

13

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

14

Simplicity 5025057SM

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

15

Simplicity 792303

PRE CLEANER (SV)

$10.99

$

In Stock, only 1 left!

0

16

Simplicity 792105

AIR CLEANER W/ PRE CLEANER (SV)

$28.99

$

In Stock, Qty 20+

0

17

SEE PUMP DRIVE GROUP

$

$

Not available

18

SEE PUMP DRIVE GROUP

$

$

Not available

19

SEE PUMP DRIVE GROUP

$

$

Not available

20

SEE PUMP DRIVE GROUP

$

$

Not available

21

Simplicity 696854

OIL FILTER (SV)

Note: (Not Shown)

$13.99

$

In Stock, Qty 20+

0

22

Simplicity 5101641YP

SCREEN, SPARK ARRESTER

Note: (Not Shown)

$84.99

$

Usually ships in 2-12 days

0

23

Simplicity 5025010X8SM

BOLT, 1/4-20 X 1", GD

$3.99

$

In Stock, only 2 left!

0

24

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 20+

0

25

Simplicity 5021500SM

CLAMP, VINYL INSULATED

$3.99

$

Usually ships in 2-12 days

0

26

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)

$4.49

$

In Stock, Qty 20+

0

27

Simplicity 5050833X11SM

WIRE LOOM, 1/2 ID X 11 IN
(Superseded to 5050833X11YP)

Note: (Not Shown)

$3.49

$

Usually ships in 2-12 days

0

28

Simplicity 5403576YP

WIRE HARNESS, JUMPER, WARNER CLUTCH

Note: (Not Shown)

$65.99

$

Usually ships in 2-12 days

0

29

Simplicity 5025585YP

BELLEVILLE WASHER 1.1875 X .442 X .089

Note: (S/N: 2014745414 & Above)

$4.49

$

In Stock, only 4 left!

0
