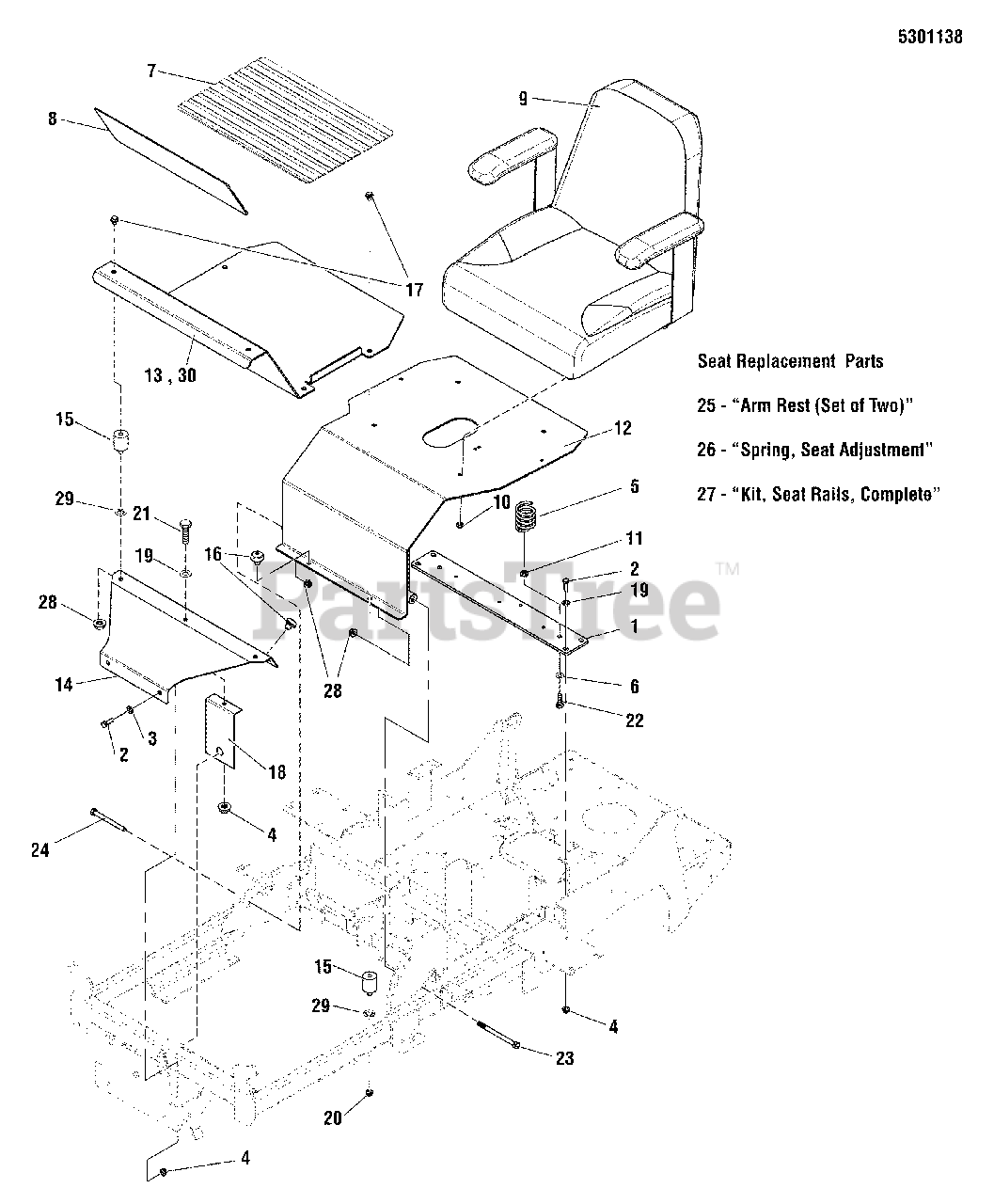

5901269 - Simplicity Champion 2550 Series 50" Zero-Turn Mower, 25hp Seat & Kickplate Group - B&S Professional Series Parts Diagram

Champion 2550 Series 50" Zero-Turn Mower, 25hp

Seat & Kickplate Group - B&S Professional Series Parts Diagram

  • Title

1

Simplicity 5400361CSM

MOUNT, OIL FILTER - ORG

$43.99

$

Usually ships in 2-12 days

0

2

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

3

Simplicity 5025292SM

WASHER, 5/16 GD.9 FLAT

$3.99

$

In Stock, Qty 17

0

4

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 7078299SM

SPRING, SEAT SUPPORT

$14.99

$

Usually ships in 2-12 days

0

6

Simplicity 5025156SM

WASHER, 3/8 SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0

7

Simplicity 5100999SM

SAFETY WALK, FLOOR PLATE, 17.13 X 11.50

$29.99

$

Usually ships in 2-12 days

0

8

Simplicity 5101007SM

SAFETY WALK, FLOOR REST, 17.13 X 6.00

$32.99

$

Usually ships in 2-12 days

0

9

Simplicity 5061599SM

SEAT, XB-180, NO LOGO, BLACK

$744.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025057SM

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 5403488CSM

WELD, SEAT PLATE - ORG

$284.99

$

Usually ships in 2-12 days

0

13

Simplicity 5403442CSM

PLATE, FLOOR, CONSUMER Z - ORG

Note: (50" Models Only)

$148.99

$

Usually ships in 2-12 days

0

14

Simplicity 5403044CSM

PLATE, FLOOR, FRONT, CONS Z

$62.99

$

Usually ships in 2-12 days

0

15

Simplicity 35097SM

MNT, VBRTN, 30 DURO
(Superseded to 35097GS)

$16.99

$

In Stock, only 2 left!

0

16

Simplicity 197546SM

MNT, VBRTN, RBBR
(Superseded to 197546GS)

$7.99

$

In Stock, only 2 left!

0

17

Simplicity 5025481SM

BOLT, 3/8-16 X 5/8, SERRATED UNDER HEAD

$3.49

$

In Stock, only 4 left!

0

18

Simplicity 5403372CSM

PLATE, SUPPORT, FRONT FLOOR

$

$

Not available

19

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, only 4 left!

0

20

Simplicity 5025128SM

NUT, 3/8-16 HEX SERRATED FLANGE

$3.49

$

In Stock, only 2 left!

0

21

Simplicity 5025011X6SM

BOLT, 5/16-18 X 3/4 GD5

$3.99

$

In Stock, Qty 7

0

22

Simplicity 5025013X8SM

BOLT, 3/8-16 X 1 GD5 YZ

$3.99

$

In Stock, only 1 left!

0

23

Simplicity 5025013X40SM

BOLT, 3/8-16 X 5" GD5 YZ

$4.49

$

Usually ships in 2-12 days

0

24

Simplicity 5025013X32SM

BOLT, 3/8-16 X 4 GD5 YZ

$3.99

$

In Stock, Qty 11

0

25

Simplicity 1686907SM

ARM REST, SET OF TWO (SV)

$139.99

$

Usually ships in 2-12 days

0

26

Simplicity 5100652SM

SPRING, EXTENSION, SEAT ADJUSTMENT (BLK OR SLVR)

Note: (SV)(Not an illustrated part.) (3-1/2" Total unstretched length)

$10.99

$

Usually ships in 2-12 days

0

27

Simplicity 5061599X1SM

KIT, SEAT RAILS. COMPLETE (SV)

$192.99

$

Usually ships in 2-12 days

0

28

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

29

Simplicity 5025480SM

WASHER, 3/8" ID, INTERNAL TOOTH

$3.49

$

Usually ships in 2-12 days

0

30

Simplicity 5407799CSM

PLATE, FLOOR, CONSUMER Z - ORG
(Superseded to 5407799CYP)

Note: (52" Models Only)

$224.99

$

Usually ships in 2-12 days

0
