5901269 - Simplicity Champion 2550 Series 50" Zero-Turn Mower, 25hp Electrical Group Parts Diagram

Champion 2550 Series 50" Zero-Turn Mower, 25hp

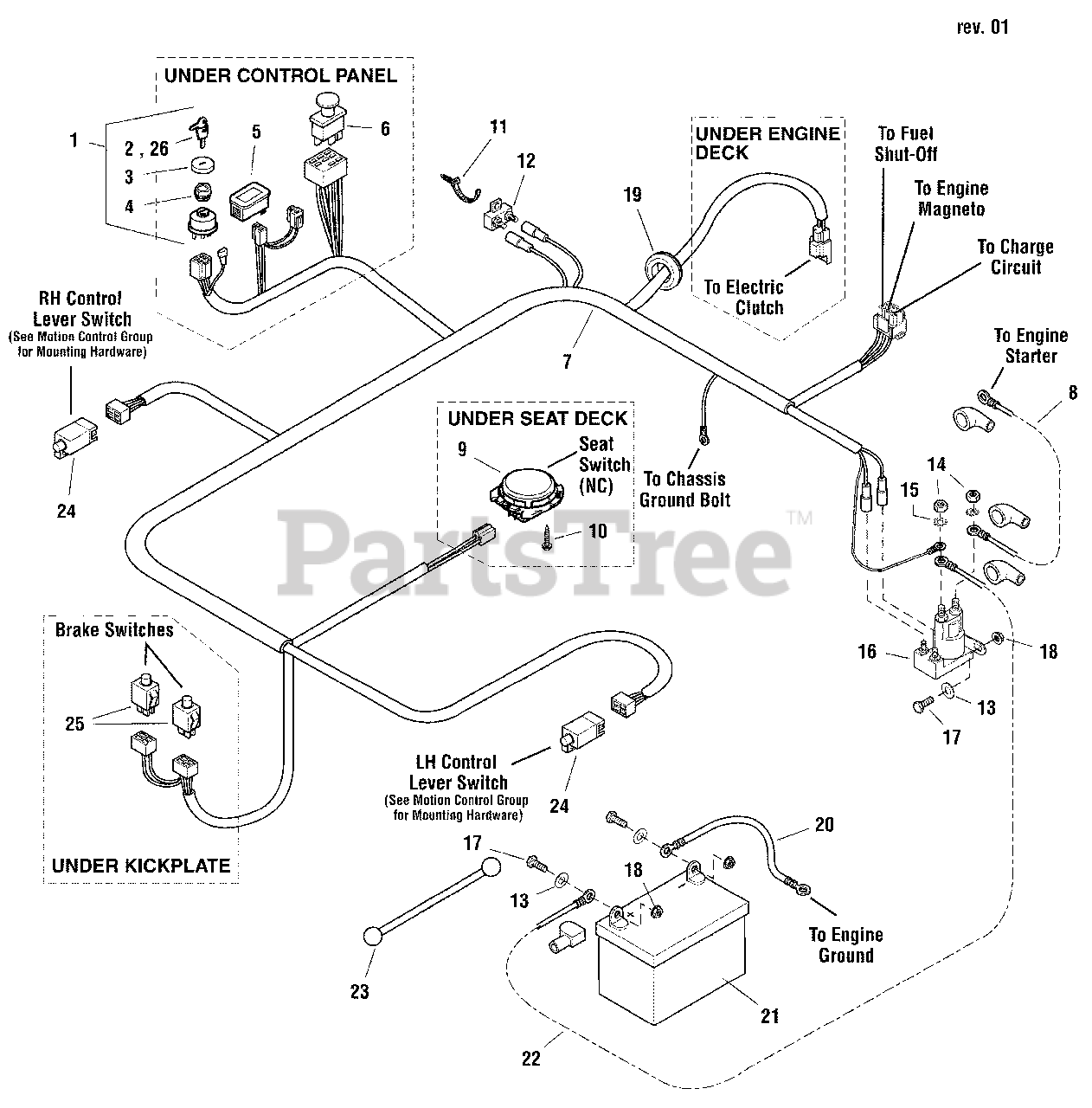

Electrical Group Parts Diagram

  • Title

1

Simplicity 1737853SM

SWITCH ASMY-IGNITION INDAK NO KEYS
(Superseded to 1737853YP)

$35.99

$

In Stock, Qty 20+

0

2

Simplicity 1737836SM

KEYS, BLISTER PK KIDS+MWRS DON'T MIX
(Superseded to 1737836YP)

Note: (Domestic Models)

$20.99

$

In Stock, only 1 left!

0

3

Simplicity 1704346SM

COVER

$4.49

$

In Stock, only 1 left!

0

4

Simplicity 5022791SM

PLASTIC NUT

$3.49

$

In Stock, only 1 left!

0

5

Simplicity 1731184SM

HOUR METER, DIGITAL

Note: (Includes Retaining Ring)

$64.99

$

In Stock, only 1 left!

0

6

Simplicity 1722887SM

SWITCH, PTO

$33.99

$

In Stock, Qty 20+

0

7

Simplicity 5400371SM

WIRE HARNESS, SNAPPER Z

$347.99

$

Usually ships in 2-12 days

0

8

Simplicity 5023488SM

BATTERY CABLE, POSITIVE, 22"

$27.99

$

Usually ships in 2-12 days

0

9

Simplicity 1716368SM

SWITCH, SEAT, GRAY, NC (BOLT IN)

$20.99

$

In Stock, only 1 left!

0

9

Simplicity 1716368SM

SWITCH, SEAT, GRAY, NC (TWIST IN)

$20.99

$

In Stock, only 1 left!

0

10

Simplicity 1960536SM

BOLT, HEX WASHER HEAD PLASTITE, 1/4 X 1/2

$4.99

$

Usually ships in 2-12 days

0

11

Simplicity 5021199SM

CABLE TIE-PUSH MOUNT

$5.99

$

In Stock, only 1 left!

0

12

Simplicity 5023222SM

CIRCUIT BREAKER, 20A

$

$

Not available

13

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 2820438SM

NUT, HEX JAM, 5/16-24

$3.49

$

In Stock, only 2 left!

0

15

Simplicity 5023217SM

WASHER, LIGHT LOCK, 5/16

$3.49

$

Usually ships in 2-12 days

0

16

Simplicity 1686981SM

SOLENOID-4 POLE 12 VOLT DC (TROMBETTA)
(Superseded to 1686981YP)

$28.99

$

In Stock, Qty 20+

0

17

Simplicity 5025010X6SM

BOLT, 1/4-20 X 3/4" GD5 YZ

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 5025126SM

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

19

Simplicity 5021379SM

GROMMET, 7/8

$6.99

$

Usually ships in 2-12 days

0

20

Simplicity 5021406SM

BATTERY CABLE, NEGATIVE, 22"

$16.99

$

Usually ships in 2-12 days

0

21

BATTERY, WET ( BCIU1, 340 CCA)

$

$

Not available

22

Simplicity 5047136SM

BATTERY CABLE, POS, 15, 1/4-5/16

$22.99

$

In Stock, only 1 left!

0

23

Simplicity 1722009SM

STRAP-BLACK RUBB

$10.99

$

In Stock, only 1 left!

0

24

Simplicity 1717050SM

SWITCH, PLUNGER, N.O./N.C.

$17.99

$

In Stock, Qty 20+

0

25

Simplicity 7022886YP

SWITCH, DP NO/NC SNAP-IN

$14.99

$

In Stock, Qty 20+

0

26

Simplicity 1737837SM

KEYS, BLISTER PK KIDS+MWRS DON'T MIX, EXP, CE MODELS ONLY
(Superseded to 1737837YP)

Note: (CE Models)

$21.99

$

In Stock, only 1 left!

0
