5901267 - Simplicity Citation XT 52" Zero-Turn Mower, 27hp Briggs & Stratton Rear Suspension Group (5303234) Parts Diagram

Citation XT 52" Zero-Turn Mower, 27hp Briggs & Stratton

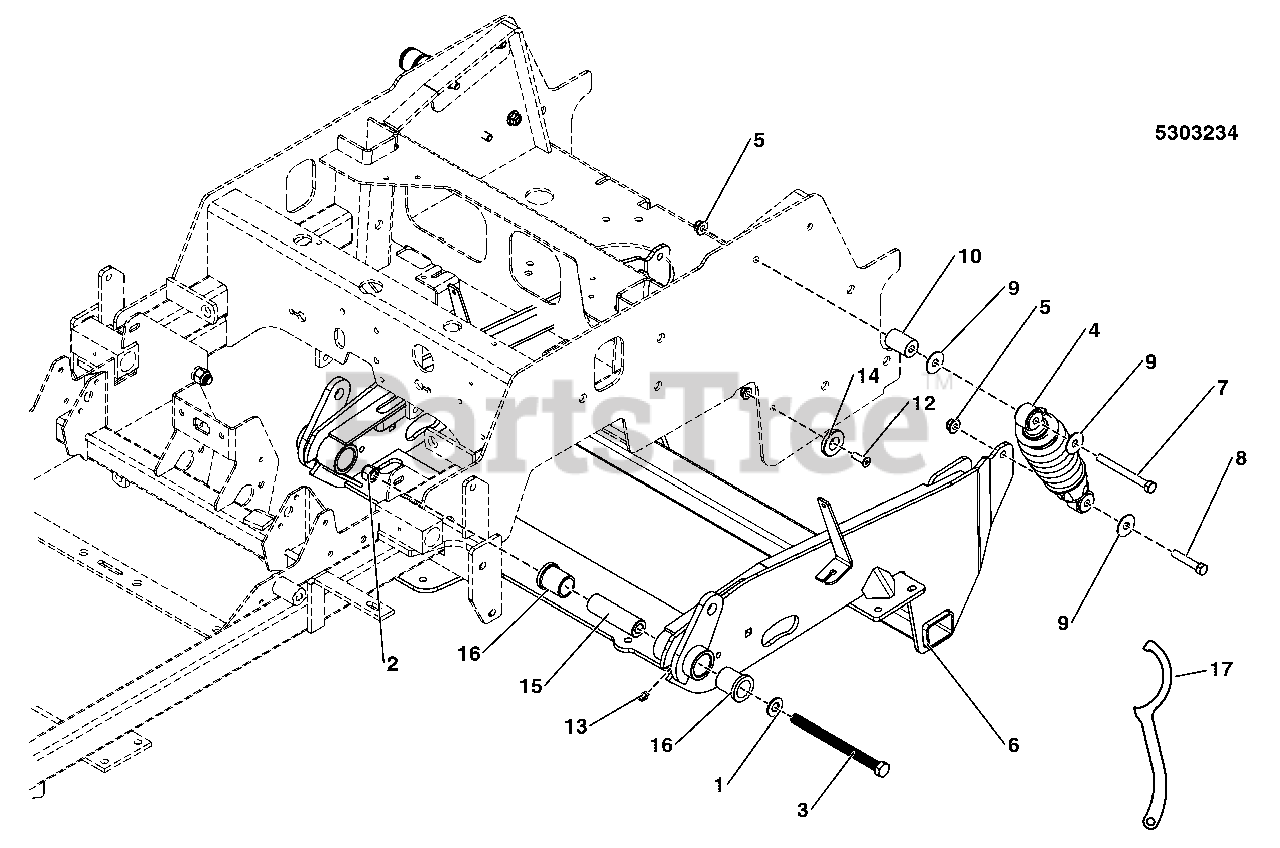

Rear Suspension Group (5303234) Parts Diagram

  • Title

1

Simplicity 5025158SM

WASHER, 1/2 SAE

$3.99

$

In Stock, Qty 14

0

2

Simplicity 5025056SM

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 7091325YP)

$4.99

$

In Stock, only 3 left!

0

3

Simplicity 5025488X52YP

BOLT, 1/2-13 X 6-1/2 GD8, YZ

$8.49

$

Usually ships in 2-12 days

0

4

Simplicity 5023436SM

SHOCK ABSORBER

$210.99

$

Usually ships in 2-12 days

0

5

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 5409706CYP

WELD, SUSPENSION CRADLE, IS700 - ORG

$809.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025013X28SM

BOLT, 3/8-16 X 3-1/2 GD5 CZ

$4.99

$

In Stock, Qty 20+

0

8

Simplicity 5025013X16SM

BOLT, 3/8-16 X 2 GD5 YZ

$4.49

$

In Stock, Qty 6

0

9

Simplicity 5025165SM

WASHER-3/8 FENDER

$3.99

$

In Stock, only 2 left!

0

10

Simplicity 5103427YP

SPACER, .39 X 1.00 X 1.25, CZ

$8.49

$

Usually ships in 2-12 days

0

11

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

Note: (Not Shown)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 5025594YP

SCREW, 5/16-18 X 1, PHILLIPS HD, BZ

$3.99

$

Usually ships in 2-12 days

0

13

Simplicity 5020095SM

GREASE FITTING, 1/4-28 STRAIGHT

$3.99

$

In Stock, only 3 left!

0

14

Simplicity 5102701YP

SPACER, .34 X 1.54 X .25 - UHMW

$3.99

$

In Stock, only 1 left!

0

15

Simplicity 5061339SM

SPACER, .52 X 1.00 X 3.42

$13.99

$

Usually ships in 2-12 days

0

16

Simplicity 5021541SM

BUSHING, FLANGE

$9.99

$

In Stock, Qty 10

0

17

Simplicity 5022853SM

WRENCH, SPANNER, CZ

$15.99

$

Usually ships in 2-12 days

0
