5901259 - Simplicity Citation XT 61" Zero-Turn Mower, 27hp Briggs & Stratton EVAP Canister Group - S/N: 2016816349 & Below (5303182_5303295) Parts Diagram

Citation XT 61" Zero-Turn Mower, 27hp Briggs & Stratton

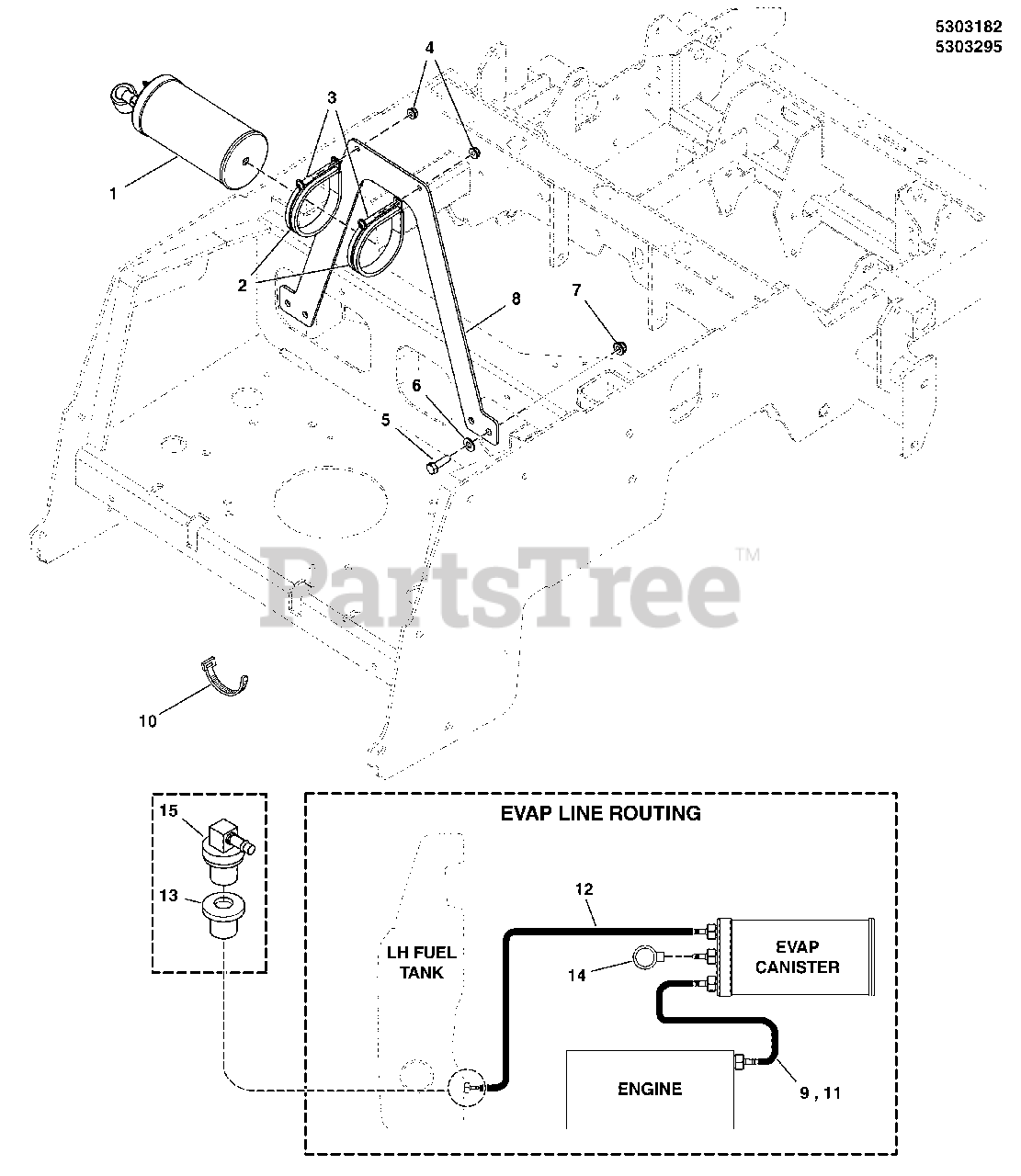

EVAP Canister Group - S/N: 2016816349 & Below (5303182_5303295) Parts Diagram

  • Title

1

Simplicity 313036GS

CNSTR, CARB, 6 GAL

$217.99

$

Usually ships in 2-12 days

0

2

Simplicity 5103055YP

CLAMP, 3" ID, CUSHIONED, STAINLESS

$7.99

$

Usually ships in 2-12 days

0

3

Simplicity 5025299X6SM

SCREW, 1/4-20 X 3/4, ALLEN BH, CZ

$3.49

$

Usually ships in 2-12 days

0

4

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)

$4.49

$

In Stock, Qty 20+

0

5

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

6

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

7

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 5411996AYP

PLATE, MOUNT, CANISTER, IS700 - BLK

$24.99

$

Usually ships in 2-12 days

0

9

Simplicity 7700552X27YP

HOSE, VAPOR, 5MM ID, 27.00 LG
(Superseded to 7700552X32YP)

Note: (Kawasaki Engines)

$9.99

$

In Stock, only 1 left!

0

10

Simplicity 5021029SM

TIE, SELF-LOCKING, 12"

$

$

Not available

11

Simplicity 7700552X38YP

HOSE, VAPOR, 5MM ID, 38.00 LG
(Superseded to 315826GS)

Note: (B&S Commercial Turf Engines)

$13.99

$

In Stock, only 3 left!

0

12

Simplicity 7700552X18YP

HOSE, VAPOR, 5MM ID, 18.00 LG
(Superseded to 7700552X22YP)

$8.99

$

Usually ships in 2-12 days

0

13

Simplicity 799624

GROMMET

Note: (SV)(209043)

$8.99

$

In Stock, Qty 15

0

14

Simplicity 1752800YP

DUST FILTER, CANISTER

Note: (SV)

$15.99

$

In Stock, only 1 left!

0

15

Simplicity 7104638YP

ASSEMBLY, REMOTE VENT - NO VALVE

Note: (SV)

$

$

Not available
