5901258 - Simplicity Champion XT 48" Zero-Turn Mower, 25hp Briggs & Stratton Seat Mount & Floor Group S/N: 2017859742 & Above Parts Diagram

Champion XT 48" Zero-Turn Mower, 25hp Briggs & Stratton

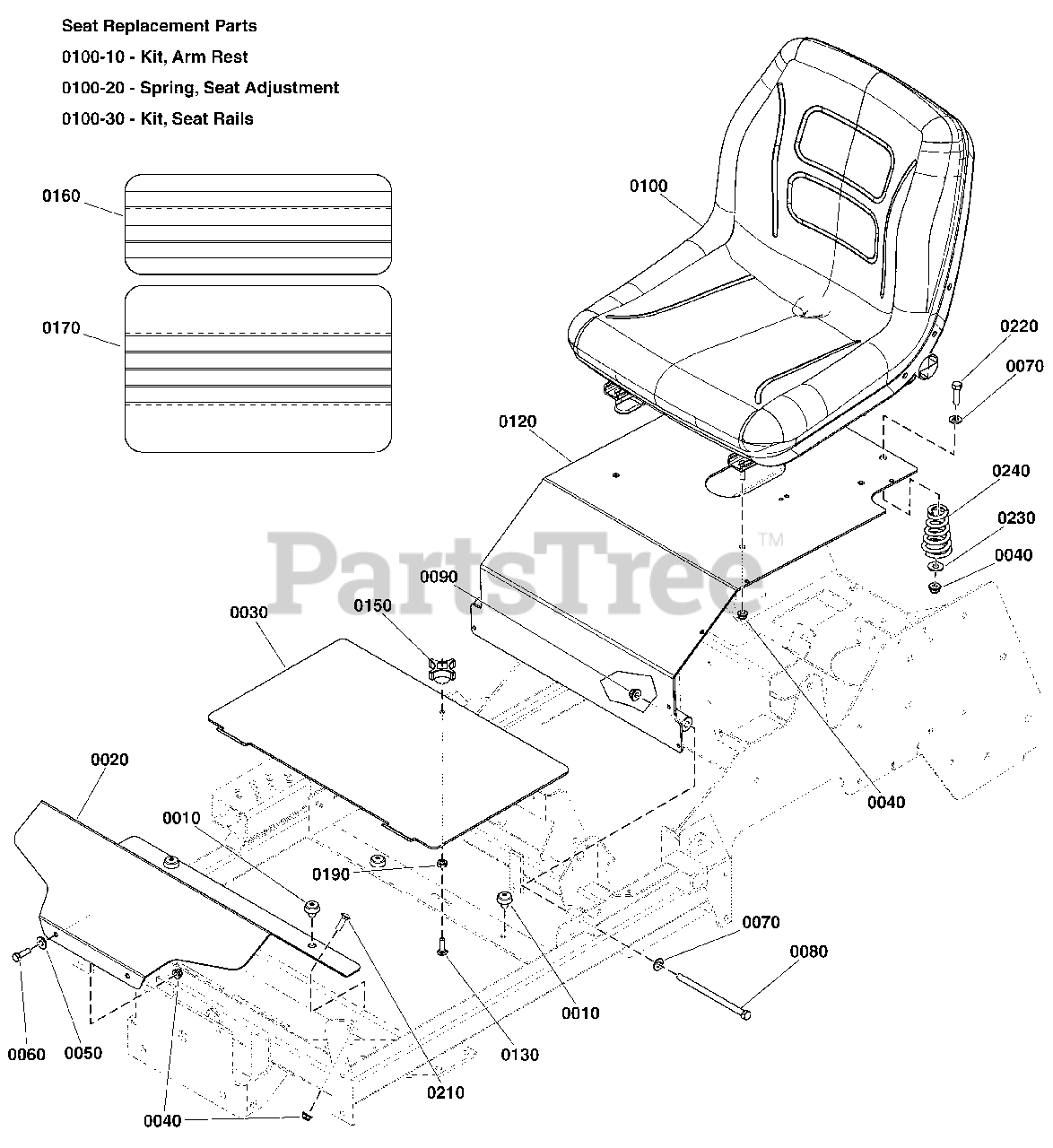

Seat Mount & Floor Group S/N: 2017859742 & Above Parts Diagram

  • Title

0010

Simplicity 197546GS

MOUNT, Vibration

$7.99

$

In Stock, only 2 left!

0

0020

Simplicity 5410257CYP

PLATE, FLOOR PAN, RIDGID IS600Z - ORG

$139.99

$

Usually ships in 2-12 days

0

0030

Simplicity 5410256CYP

PLATE, FLOOR PAN, REMOVABLE. IS600 - ORG

$76.99

$

Usually ships in 2-12 days

0

0040

Simplicity 5025392SM

NUT, Ny Lock Flange, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0050

Simplicity 5025292SM

WASHER, 5/16" GD.9 FLAT

$3.99

$

In Stock, Qty 20+

0

0060

Simplicity 5025011X8SM

CAPSCREW, Hex Head, 5/16-18 X 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

0070

Simplicity 5025156SM

WASHER, Flat, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 12

0

0080

Simplicity 5025013X48SM

CAPSCREW, Hex Hd, 3/8-16 x 6

$5.99

$

In Stock, Qty 20+

0

0090

Simplicity 5025394SM

NUT, 3/8-16, Hex Flange Nylock

$4.49

$

In Stock, Qty 20+

0

0100

Simplicity 5100909SM

SEAT, NO ARM REST

$551.99

$

Usually ships in 2-12 days

0

0100-10

Simplicity 1686907SM

KIT, ARM REST (SET OF TWO)(SV)

$139.99

$

Usually ships in 2-12 days

0

0100-20

Simplicity 5100652SM

SPRING, Extension, Seat Adjustment (BLK or SLVR) (3-1/2" Total unstretched length.)

Note: (3-1/2" total unstretched length)

$10.99

$

Usually ships in 2-12 days

0

0100-30

Simplicity 5061599X1SM

KIT, SEAT RAILS (COMPLETE)(SV)

$192.99

$

Usually ships in 2-12 days

0

0120

Simplicity 5601056YP

ASSM, SEAT PLATE W/DECALS, CHAMPION XT (5415897C)

$

$

Currently unavailable

0130

Simplicity 5025145X10YP

BOLT, 5/16-18 X 1-1/4, CARRIAGE, GD5, CZ

$3.49

$

Usually ships in 2-12 days

0

0150

Simplicity 1670578SM

KNOB, Internal Thread, 5/16 (Used Only on 24 in. Models)

$13.99

$

Usually ships in 2-12 days

0

0160

Simplicity 5101374YP

SAFETY WALK

$18.99

$

In Stock, only 1 left!

0

0170

Simplicity 5101333YP

SAFETY WALK, FLOOR PLATE, S50X, 10X17.13

$37.99

$

Usually ships in 2-12 days

0

0190

Simplicity 703164

NUT, Hex Center Lock, 5/16-18, GRB

$3.49

$

In Stock, Qty 20+

0

0210

Simplicity 5025145X8SM

BOLT, 5/16-18 X 1, CARRIAGE YZ

$3.99

$

In Stock, Qty 9

0

0220

Simplicity 5025013X10SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/4

$3.99

$

In Stock, Qty 12

0

0230

Simplicity 5025401YP

WASHER, 3/8 USS

$3.99

$

Usually ships in 2-12 days

0

0240

Simplicity 1717051SM

SPRING, Seat

$13.99

$

In Stock, Qty 20+

0
