5901258 - Simplicity Champion XT 48" Zero-Turn Mower, 25hp Briggs & Stratton Motion Control Group - Control System (5303140B) Parts Diagram

Champion XT 48" Zero-Turn Mower, 25hp Briggs & Stratton

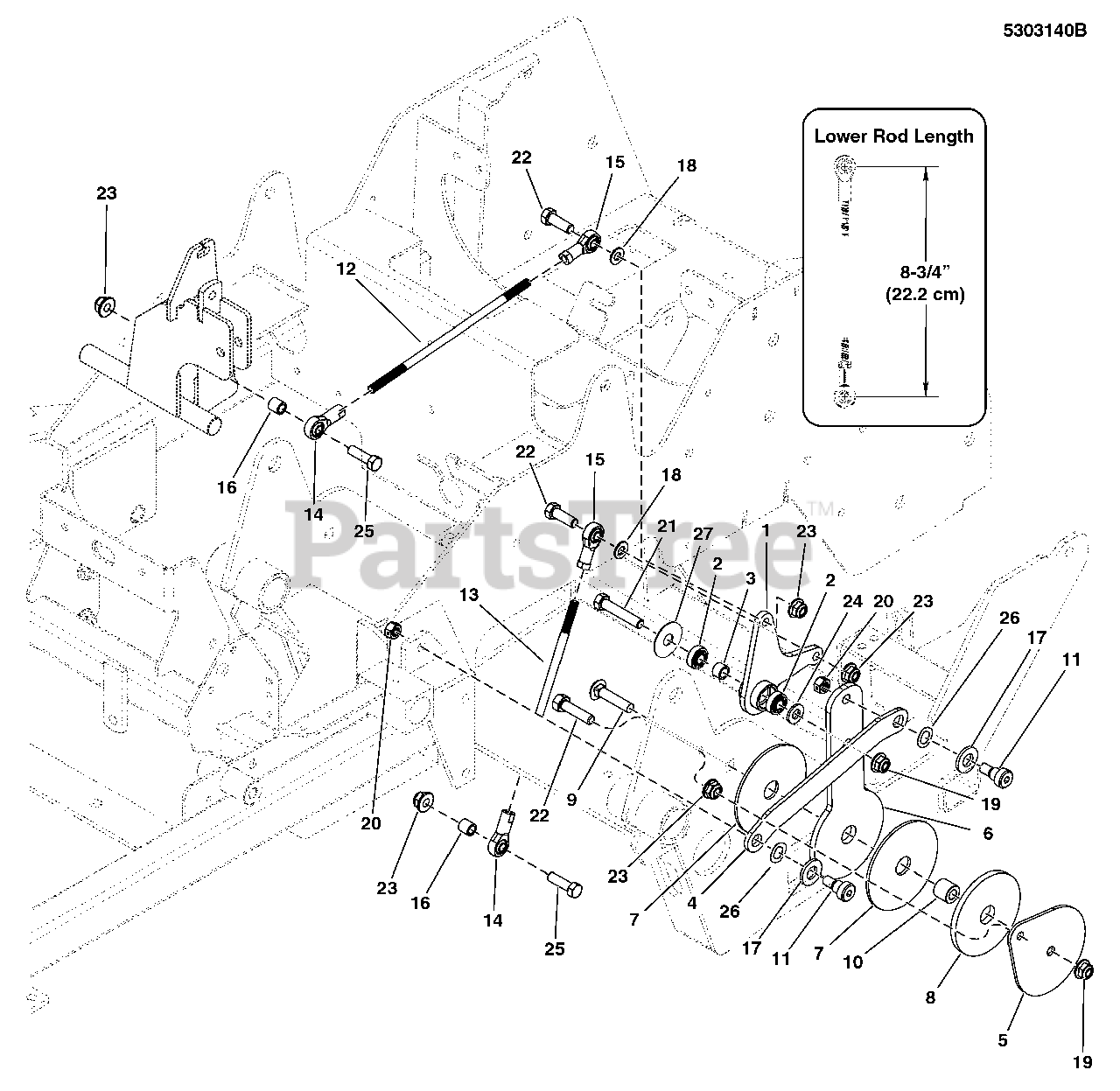

Motion Control Group - Control System (5303140B) Parts Diagram

  • Title

1

Simplicity 5103718YP

PIVOT, CONTROL SYSTEM

$23.99

$

Usually ships in 2-12 days

0

2

Simplicity 5102003YP

BEARING, .375" ID X .875" OD X .341" THK

$9.49

$

Usually ships in 2-12 days

0

3

Simplicity 5103676YP

SPACER, .39 X .55 X .38, CZ

$6.49

$

Usually ships in 2-12 days

0

4

Simplicity 5410270AYP

LINK, CONTROL SYSTEM ARM, IS600 - BLK

$10.99

$

Usually ships in 2-12 days

0

5

Simplicity 5410271AYP

PLATE, CONTROL SYSTEM LOCK - BLK

$8.49

$

Usually ships in 2-12 days

0

6

Simplicity 5410268YP

PLATE, CONTROL SYSTEM ARM - HT

$25.99

$

Usually ships in 2-12 days

0

7

Simplicity 5103672YP

PAD, CONTROL SYSTEM

$6.49

$

Usually ships in 2-12 days

0

8

Simplicity 5103704YP

PAD, .77 X 3.50 X .25, POLYURETHANE

$50.99

$

Usually ships in 2-12 days

0

9

Simplicity 5025146X12YP

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ

$3.99

$

Usually ships in 2-12 days

0

10

Simplicity 5103705YP

SPACER, .39 X .75 X .69, CZ

$7.49

$

Usually ships in 2-12 days

0

11

Simplicity 5025356SM

BOLT, 3/8-16 X 3/8, 1/2 SHOULDER

$6.99

$

In Stock, Qty 6

0

12

Simplicity 5103673YP

ROD, 5/16 X 8.38, LH-RH, CZ

$6.49

$

Usually ships in 2-12 days

0

13

Simplicity 5103674YP

ROD, 5/16 X 7.00, LH-RH, CZ

$6.99

$

Usually ships in 2-12 days

0

14

Simplicity 5104578YP

BALL JOINT 5/16-24 RH FEMALE STAMPED STL

$11.99

$

Usually ships in 2-12 days

0

15

Simplicity 5104579YP

BALL JOINT 5/16-24 LH FEMALE STAMPED STL

$

$

Not available

16

Simplicity 5102148YP

SPACER, .33 X .50 X .50, CZ

$4.99

$

Usually ships in 2-12 days

0

17

Simplicity 5025440SM

WASHER, 1/2 GD9 YZ

$4.49

$

In Stock, only 1 left!

0

18

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

19

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

20

Simplicity 5025100SM

NUT, 3/8-16 HEX SIDE LOCK

$3.49

$

In Stock, Qty 20+

0

21

Simplicity 5025013X16SM

BOLT, 3/8-16 X 2 GD5 YZ

$4.49

$

In Stock, Qty 6

0

22

Simplicity 5025011X10SM

BOLT, 5/16-18 X 1-1/4 GD5 YZ

$3.99

$

Usually ships in 2-12 days

0

23

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

24

Simplicity 5025293SM

WASHER, 3/8 GD.9 FLAT

$3.99

$

In Stock, Qty 5

0

25

Simplicity 5025011X12SM

BOLT, 5/16-18 X 1-1/2 GD5 YZ
(Superseded to 5025055X12SM)

$3.99

$

In Stock, only 2 left!

0

26

Simplicity 5103784YP

WAVE WASHER, 1/2"ID X 087"OD X .01 THK.

$11.99

$

Usually ships in 2-12 days

0
