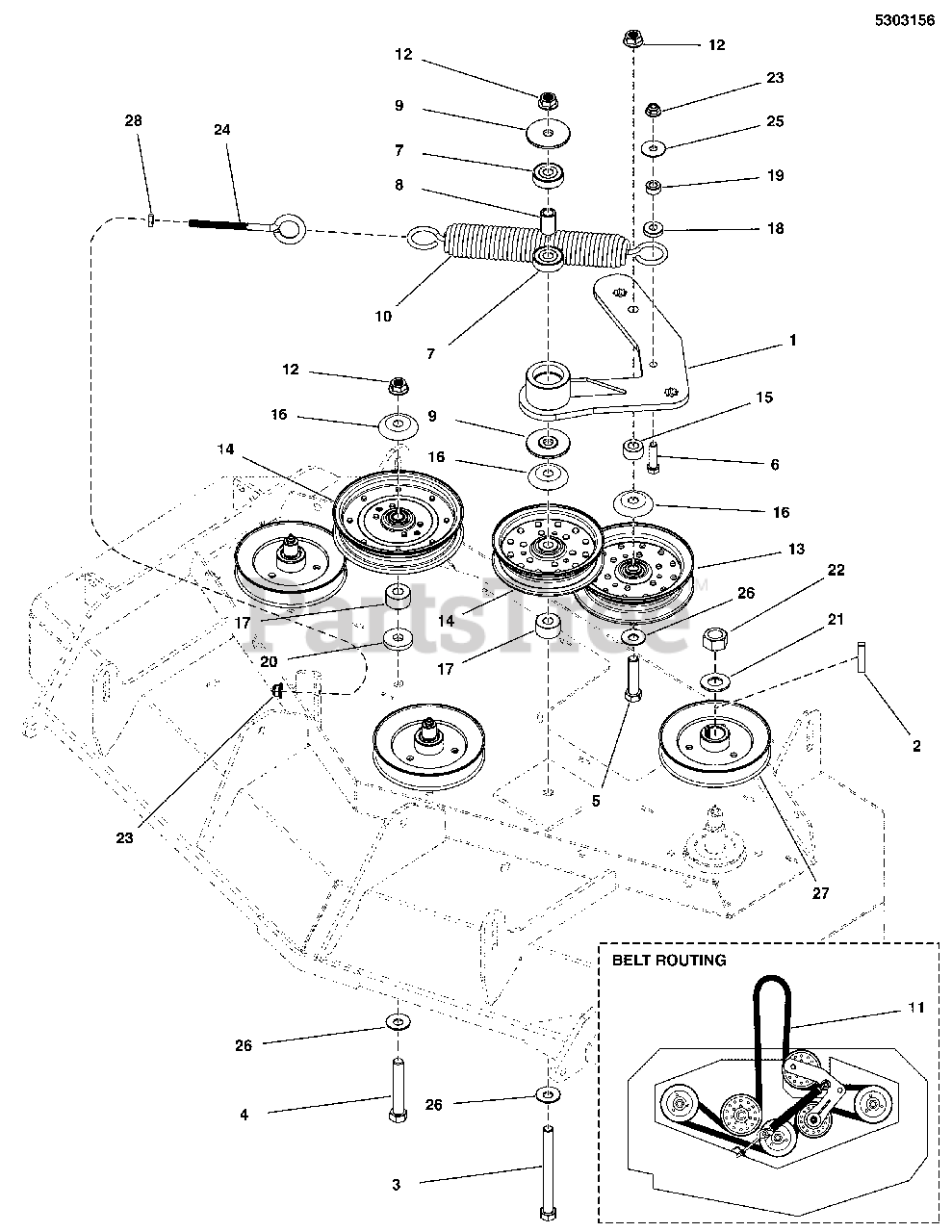

5901258 - Simplicity Champion XT 48" Zero-Turn Mower, 25hp Briggs & Stratton 48" Mower Deck - Pulleys, Belt, & Idler Arm S/N: 2016893015 - 2017640725 (5303156A) Parts Diagram

Champion XT 48" Zero-Turn Mower, 25hp Briggs & Stratton

48" Mower Deck - Pulleys, Belt, & Idler Arm S/N: 2016893015 - 2017640725 (5303156A) Parts Diagram

  • Title

1

Simplicity 5412572AYP

WELD, IDLER ARM - BLK
(Superseded to 5415907AYP)

$165.99

$

Usually ships in 2-12 days

0

2

Simplicity 5050407X10YP

KEY, 1/4 SQ X 1-1/4

$3.99

$

In Stock, only 3 left!

0

3

Simplicity 5025017X44SM

BOLT, 1/2-13 X 5-1/2 GD5 CZ

$7.99

$

In Stock, only 3 left!

0

4

Simplicity 5025017X22SM

BOLT, 1/2-13 X 2-3/4 GD5 CZ

$5.99

$

In Stock, Qty 11

0

5

Simplicity 5025017X20SM

BOLT, 1/2-13 X 2-1/2 GD5 CZ

$5.49

$

In Stock, Qty 8

0

6

Simplicity 5025013X12SM

BOLT, 3/8-16 X 1-1/2 GD5 CZ

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 5104383YP

BEARING, 6203-1/2", SEALED

$9.99

$

In Stock, only 1 left!

0

8

Simplicity 5104456YP

SPACER, .51 X .75 X 1.22, PM, CZ

$4.49

$

In Stock, only 1 left!

0

9

Simplicity 5104379YP

SPACER, IDLER ARM, 1/2 X 2.25

$8.99

$

In Stock, only 2 left!

0

10

Simplicity 5104166YP

SPRING, EXT, 1.5ODX12.25X.234WIRE BLK

$74.99

$

In Stock, Qty 5

0

11

Simplicity 5103929YP

BELT, 5V, 158.90"EL, ARAMID WRPD, RC

$154.99

$

In Stock, Qty 6

0

12

Simplicity 5025056SM

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0

13

USE 5104716YP PULLEY + 5105145YP SHIELD

$

$

Not available

14

Simplicity 5101794YP

PULLEY, IDLER, 5" OD, 1"FACE, 5.75 FL

$57.99

$

In Stock, only 2 left!

0

15

Simplicity 5101162YP

SPACER, .52 X 1.00 X .56, CZ

$7.49

$

In Stock, Qty 8

0

16

Simplicity 5101103SM

SHIELD, PULLEY BEARING, CZ

$10.99

$

In Stock, Qty 20+

0

17

Simplicity 5047142SM

SPACER, .52 X 1.25 X .70, CZ

$8.99

$

In Stock, Qty 8

0

18

Simplicity 5044960SM

SPACER, .39 X 1.00 X .25

$5.49

$

In Stock, Qty 7

0

19

Simplicity 5044933SM

SPACER, .39 X .75 X .38

$4.99

$

In Stock, only 3 left!

0

20

Simplicity 5044913SM

WASHER, .53 X 1.50 X .25

$6.99

$

In Stock, Qty 12

0

21

Simplicity 5025406SM

WASHER, 3/4 BELLEVILLE
(Superseded to 770223)

$4.49

$

In Stock, only 4 left!

0

22

Simplicity 5025405SM

NUT, 3/4-16 HEX

$3.99

$

In Stock, Qty 20+

0

23

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 5023497SM

EYE BOLT, 3/8-16 X 5, 2.88THRD, 1EYE, CZ

$9.49

$

In Stock, only 1 left!

0

25

Simplicity 5025165SM

WASHER-3/8 FENDER

$3.99

$

In Stock, only 2 left!

0

26

Simplicity 5025158SM

WASHER, 1/2 SAE

$3.99

$

In Stock, Qty 8

0

27

Simplicity 5023175SM

PULLEY, 5.540OB X .985ID, SINGLE B-SEC

$67.99

$

In Stock, Qty 17

0

28

Simplicity 5025084SM

NUT, 3/8-16 HEX JAM

$3.49

$

In Stock, Qty 13

0
