5901230 - Simplicity Champion XT 48" Zero-Turn Mower, 27hp Briggs & Stratton Engine & PTO Group (5303160) Parts Diagram

Champion XT 48" Zero-Turn Mower, 27hp Briggs & Stratton

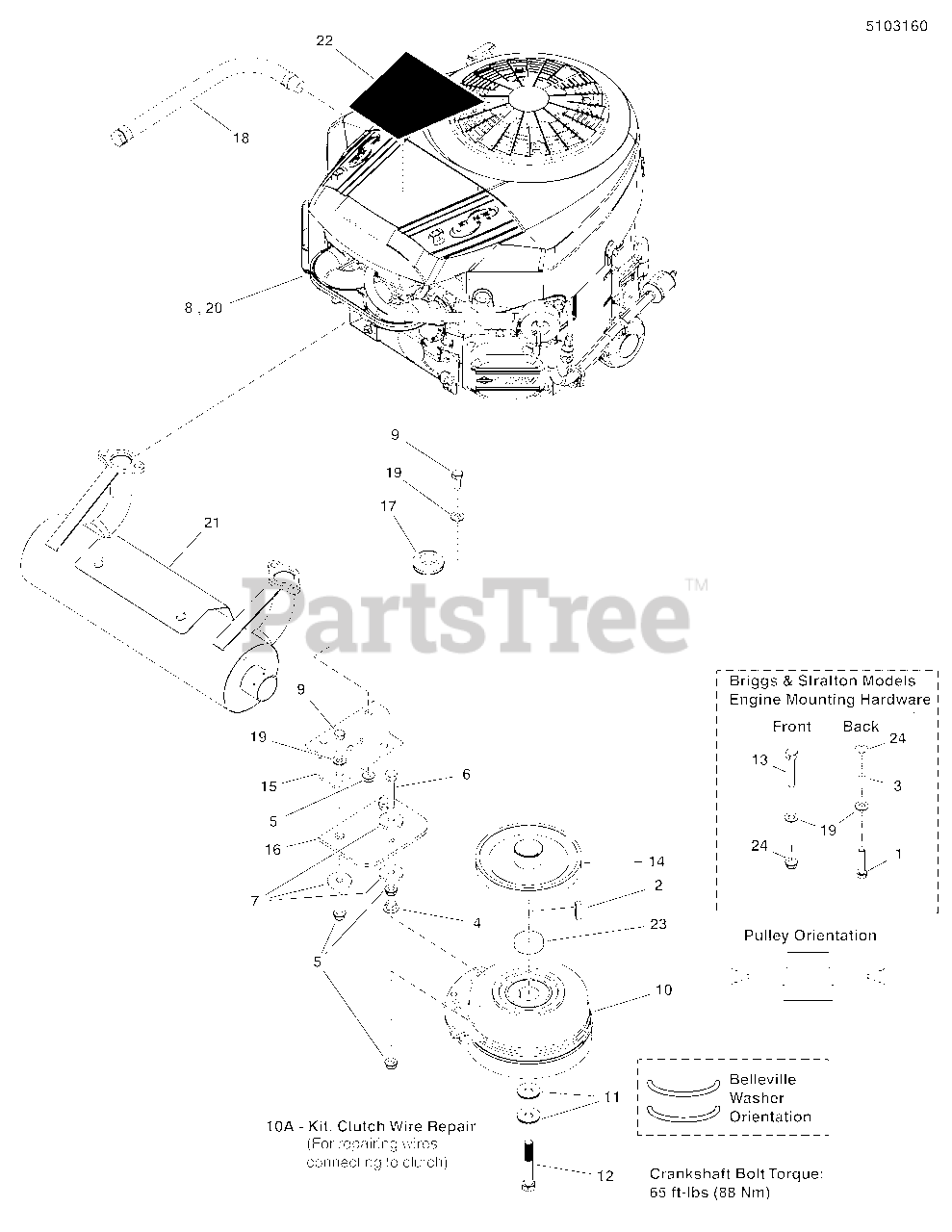

Engine & PTO Group (5303160) Parts Diagram

  • Title

1

Simplicity 5025025X12YP

BOLT-HEX, 5/16-24 X 1-1/2", GD8, PHOS

$3.99

$

Usually ships in 2-12 days

0

2

Simplicity 5050407X8SM

KEY, 1/4 Square x 1

$3.99

$

In Stock, only 1 left!

0

3

Simplicity 5025188SM

WASHER, 5/16" Internal Tooth Lock

$3.99

$

In Stock, only 1 left!

0

4

Simplicity 5025139SM

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)

$3.49

$

In Stock, Qty 12

0

5

Simplicity 5025392SM

NUT, Ny Lock Flange, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 5025055X16SM

BOLT, 5/16-18 X 2" GD 5 TFL

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 5044617SM

WASHER, CLUTCH ANCHOR, 5/16

$8.49

$

In Stock, only 2 left!

0

8

ENGINE, B&S COMM TURF, 1-1/8 X 4.29, 44T977

Note: (Model # 5901258)

$

$

Not available

9

Simplicity 5025011X8SM

CAPSCREW, Hex Head, 5/16-18 X 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

10

Simplicity 5105090YP

CLUTCH, WARNER, 200 FT-LB, 1.13" X 6.323

$456.99

$

In Stock, only 3 left!

0

10A

Simplicity 5600575YP

KIT, CLUTCH WIRE REPAIR

Note: (SV)

$68.99

$

Usually ships in 2-12 days

0

11

Simplicity 5025585YP

BELLEVILLE, WASHER, 1.1875 X .442 X .089

$4.49

$

In Stock, only 4 left!

0

12

Simplicity 5102865YP

BOLT, CRANKSHAFT,7/16-20X2-3/4, GD8

$5.49

$

In Stock, only 2 left!

0

13

Simplicity 5025025X14YP

BOLT, 5/16-24 X 1-3/4, GD8, PHOS

$4.49

$

Usually ships in 2-12 days

0

14

Simplicity 5103558YP

PULLEY,CRANKSHAFT,1.125ID X 5.5OD A SECT

$55.99

$

In Stock, only 1 left!

0

15

Simplicity 5410367AYP

ANCHOR, CLUTCH, IS600-IS700 - BLK

$17.99

$

In Stock, only 1 left!

0

16

Simplicity 5043636SM

PAD, Clutch Anchor

$11.99

$

Usually ships in 2-12 days

0

17

Simplicity 5021379SM

GROMMET, 7/8"

$6.99

$

Usually ships in 2-12 days

0

18

Simplicity 5048681SM

HOSE, OIL DRAIN

$18.99

$

Usually ships in 2-12 days

0

19

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

20

ENGINE, B & S, 1-1/8X4.29 CRANK, 44Q777

Note: (Model # 5901230)

$

$

Not available

21

Simplicity 593249

MUFFLER, RIGHT OUTLET ASSY
(Superseded to 706900)

$222.99

$

Usually ships in 2-12 days

0

22

Simplicity 278956YP

LABEL, POWER

Note: (Model # 5901230)

$30.99

$

Usually ships in 2-12 days

0

23

Simplicity 5047033SM

SPACER, 1.13 X 1.75 X 1.03, CZ

$13.99

$

Usually ships in 2-12 days

0

24

Simplicity 5025616YP

NUT, 5/16-24, TOP LOCK FLANGE, GD8 PHOS

$3.99

$

In Stock, only 2 left!

0
