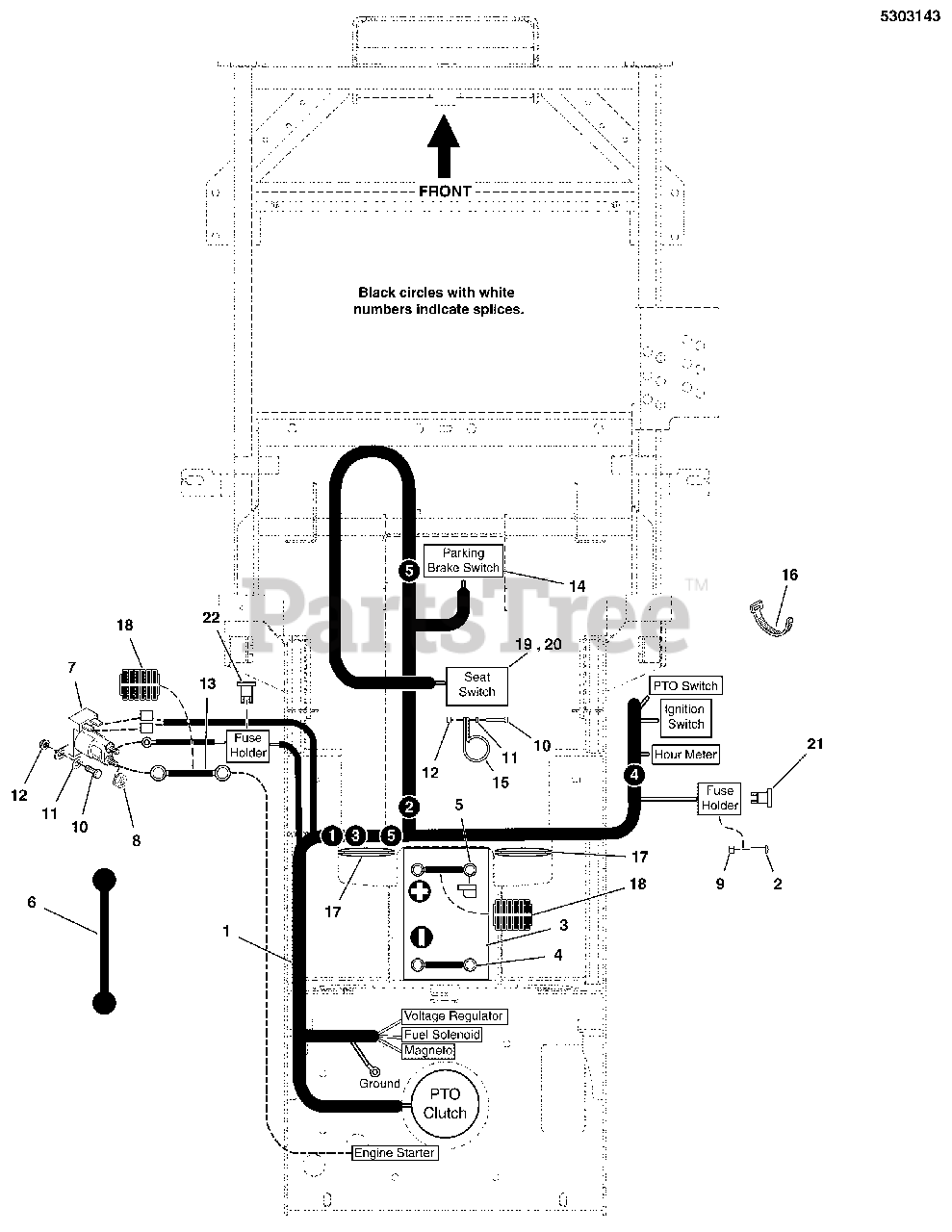

5901230 - Simplicity Champion XT 48" Zero-Turn Mower, 27hp Briggs & Stratton Electrical Group - S/N: 2017612395 & Above (5303143ASMI) Parts Diagram

Champion XT 48" Zero-Turn Mower, 27hp Briggs & Stratton

Electrical Group - S/N: 2017612395 & Above (5303143ASMI) Parts Diagram

  • Title

1

Simplicity 5416016YP

HARNESS-WIRE

$192.99

$

Usually ships in 2-12 days

0

2

Snapper 5025179X4YP

SCREW- #10-24 X 1/2 ROUND PHILLIPS
(Superseded to 5025179X4SM)

$3.99

$

Usually ships in 2-12 days

0

3

BATTERY, WET ( BCIU1, 350 CCA)

$

$

Not available

4

Simplicity 5047690SM

BATTERY CABLE, NEG, 14, 5/16-13/32

$16.99

$

Usually ships in 2-12 days

0

5

Simplicity 5021405SM

BATTERY CABLE, POS, 22, 1/4-5/16

$18.99

$

Usually ships in 2-12 days

0

6

Simplicity 1722009SM

STRAP-BLACK RUBB

$10.99

$

In Stock, only 1 left!

0

7

Simplicity 1755382YP

SOLENOID

$29.99

$

In Stock, Qty 20+

0

8

Simplicity 703061

NUT, HEX KEPS, 1/4-20

$3.49

$

In Stock, Qty 13

0

9

Snapper 5025271YP

NUT, #10-24 HEX NYLON LOCK
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

10

Simplicity 5025010X6SM

BOLT, 1/4-20 X 3/4 GD5 CZ

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 703332

WASHER, 1/4 SAE

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 703233

NUT, 1/4-20 HEX SERR. FLANGE

$4.49

$

In Stock, Qty 6

0

13

Simplicity 5023488SM

BATTERY CABLE, POS, 22, 1/4-5/16

$27.99

$

Usually ships in 2-12 days

0

14

Simplicity 7022886YP

SWITCH, DP NO/NC SNAP-IN

$14.99

$

In Stock, Qty 20+

0

15

Simplicity 5021500SM

CLAMP, VINYL INSULATED, 1.00

$3.99

$

Usually ships in 2-12 days

0

16

Simplicity 5021030SM

TIE,SELF-LOCKING, 6"

$2.99

$

In Stock, only 3 left!

0

17

Simplicity 5100716YP

GROMMET, 2" ID

$5.49

$

Usually ships in 2-12 days

0

18

Simplicity 5050927X18YP

WIRE LOOM, 3/8 ID X 18 IN

$7.49

$

Usually ships in 2-12 days

0

19

Simplicity 5100540YP

SEAT SWITCH, MILSCO, BOLT-IN

Note: (SV)

$32.99

$

In Stock, only 1 left!

0

20

Simplicity 5100541YP

SEAT SWITCH, MILSCO, TWIST-IN

Note: (SV)

$20.99

$

In Stock, only 1 left!

0

21

Simplicity 5101935YP

FUSE, ATO-15 (15 AMP)

Note: (SV)

$4.49

$

Usually ships in 2-12 days

0

22

Simplicity 5021603SM

FUSE, ATO-20 (20 AMP)

Note: (SV)

$4.99

$

In Stock, only 2 left!

0
