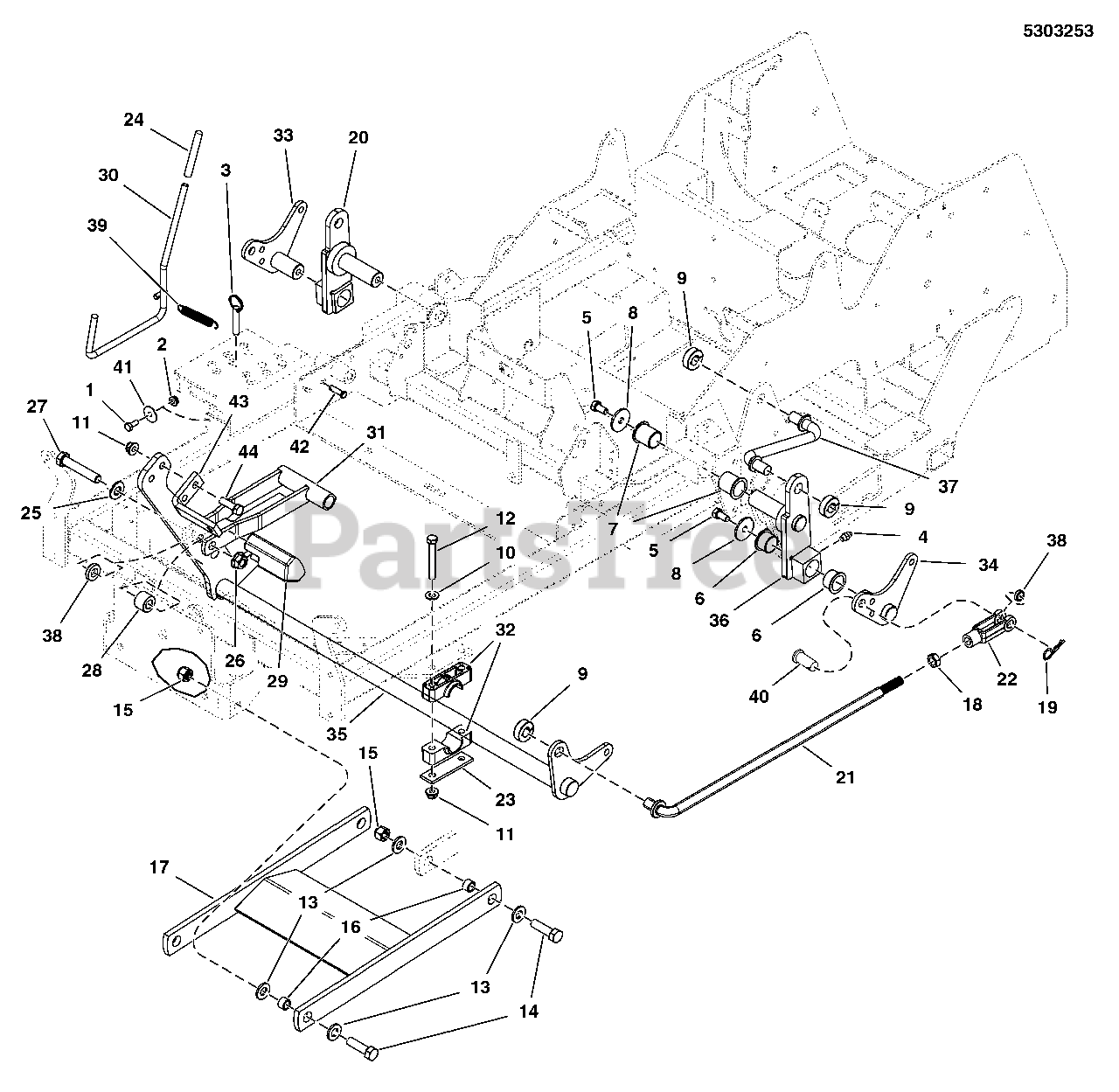

5901230 - Simplicity Champion XT 48" Zero-Turn Mower, 27hp Briggs & Stratton Deck Lift Group S/N: 2017654955 & Below Parts Diagram

Champion XT 48" Zero-Turn Mower, 27hp Briggs & Stratton

Deck Lift Group S/N: 2017654955 & Below Parts Diagram

  • Title
1

Simplicity 703338

BOLT,1/4-20X5/8

$3.99

$

Usually ships in 2-12 days

0

2

Simplicity 5025126SM

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 703233)

$4.49

$

In Stock, Qty 9

0

3

Simplicity 5023498SM

PIN, HITCH, 1/2 X 2.00 OAL, YP

$8.99

$

In Stock, only 2 left!

0

4

Simplicity 5020095SM

GREASE FITTING, 1/4-28 STRAIGHT

$3.99

$

In Stock, only 3 left!

0

5

Simplicity 5025443SM

BOLT, 3/8-16 X 3/4, GD5, YZ WITH PATCH

$3.49

$

Usually ships in 2-12 days

0

6

Simplicity 5023356SM

BUSHING, 1.00X1.13X.75, PLA

$6.49

$

In Stock, Qty 5

0

7

Simplicity 5023343SM

BUSHING, 1.00 X 1.13 X 1.38, PLASTIC

$6.49

$

Usually ships in 2-12 days

0

8

Simplicity 5100548SM

WASHER, .390 X 1.50 X .109, YZ

$4.49

$

Usually ships in 2-12 days

0

9

Simplicity 5020441SM

COLLAR, 5/8 SPLIT

$14.99

$

In Stock, Qty 20+

0

10

Simplicity 5025156SM

WASHER, 3/8 SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 12

0

11

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 5025013X22SM

BOLT, 3/8-16 X 2-3/4 GD5 YZ

$4.49

$

In Stock, only 3 left!

0

13

Simplicity 5025440SM

WASHER, 1/2 GD9 YZ

$4.49

$

In Stock, only 1 left!

0

14

Snapper 5025018X14SM

BOLT, 1/2-20 X 1-3/4 GD8 YZ

$

$

Not available

15

Simplicity 5025098SM

NUT, 1/2-20 HEX NYLON LOCK

$5.99

$

In Stock, only 2 left!

0

16

Simplicity 5020870SM

INSERT, BEARING

$5.49

$

In Stock, Qty 12

0

17

Simplicity 5409736AYP

WELD, PULLER BAR, IS600 - BLK

$92.99

$

Usually ships in 2-12 days

0

18

Simplicity 5025089SM

NUT, 1/2-20 HEX JAM

$3.99

$

In Stock, Qty 20+

0

19

Simplicity 5025210YP

PIN, HAIR, .0915 X 1-7/8

$3.99

$

In Stock, Qty 20+

0

20

Simplicity 5402534AYP

WELD, REAR LIFT - RH - IS500Z - BLK

$111.99

$

Usually ships in 2-12 days

0

21

Simplicity 5101218YP

ROD, DECK LIFT, SNP

$21.99

$

Usually ships in 2-12 days

0

22

Simplicity 5023174SM

CLEVIS, 1/2-20, STEEL, CLEAR ZINC

$16.99

$

In Stock, only 1 left!

0

23

Simplicity 5403925AYP

PLATE, PIVOT BLOCK SUPPORT - BLK

$8.49

$

Usually ships in 2-12 days

0

24

Simplicity 5021880SM

GRIP, FOAM, .475 X 4.35 X .095

$5.99

$

Usually ships in 2-12 days

0

25

Simplicity 5025158SM

WASHER, 1/2 SAE

$3.99

$

In Stock, Qty 14

0

26

Simplicity 5025396SM

NUT, 1/2-13 HEX NYLOCK FLANGE

$3.49

$

In Stock, only 2 left!

0

27

Simplicity 5025017X22SM

BOLT, 1/2-13 X 2-3/4 GD5 YZ

$5.99

$

In Stock, Qty 11

0

28

Simplicity 5045178SM

SPACER, .52 X 1.00 X .75, CZ

$7.49

$

In Stock, Qty 6

0

29

Simplicity 5104262YP

RUBBER, FOOT PEDAL

$10.99

$

Usually ships in 2-12 days

0

30

Simplicity 5410317AYP

WELD, ROD DECK LIFT, IS700 - BLK

$33.99

$

Usually ships in 2-12 days

0

31

Simplicity 5410315AYP

WELD, DECK HEIGHT LINK, IS700 - RED

$62.99

$

In Stock, only 1 left!

0

32

Simplicity 5100634SM

PIVOT BLOCK, PLASTIC

$7.49

$

Usually ships in 2-12 days

0

33

Simplicity 5409734AYP

WELD, HANGER, REAR, RH - BLK

$22.99

$

Usually ships in 2-12 days

0

34

Simplicity 5409733AYP

WELD, HANGER, REAR, LH - BLK

$22.99

$

Usually ships in 2-12 days

0

35

Simplicity 5409731CYP

WELD, DECK LIFT SHAFT, IS600
(Superseded to 84003824)

$210.99

$

Usually ships in 2-12 days

0

36

Simplicity 5402533AYP

WELD, REAR LIFT - LH - IS500Z - BLK

$111.99

$

Usually ships in 2-12 days

0

37

Simplicity 5103620YP

ROD, SUSPENSION LINK, IS600

$13.99

$

Usually ships in 2-12 days

0

38

Simplicity 5100520SM

SPACER, .52 X 1.00 X .22, CZ

$6.49

$

In Stock, only 2 left!

0

39

Simplicity 5010213YP

SPRING-EXT, .740 ODX2.025LGX.072WR, BLK

$14.99

$

Usually ships in 2-12 days

0

40

Simplicity 5025479YP

CLEVIS PIN, 1/2 X 1.3 SAE STANDARD

$3.99

$

In Stock, only 2 left!

0

41

Simplicity 5025288YP

WASHER, 1/4 FENDER

$3.99

$

In Stock, only 4 left!

0

42

Simplicity 5025212X4SM

CLEVIS PIN, 1/4 X 1/2, CZ

$3.99

$

Usually ships in 2-12 days

0

43

Simplicity 5061569AYP

PEDAL, FOOT - BLK

$40.99

$

Usually ships in 2-12 days

0

44

Simplicity 5025013X10SM

BOLT, 3/8-16 X 1-1/4 GD5

$3.99

$

In Stock, Qty 12

0
