5901227 - Simplicity Citation XT 61" Zero-Turn Mower, 28hp Briggs & Stratton Instrument Control Panel Group (5303263) Parts Diagram

Citation XT 61" Zero-Turn Mower, 28hp Briggs & Stratton

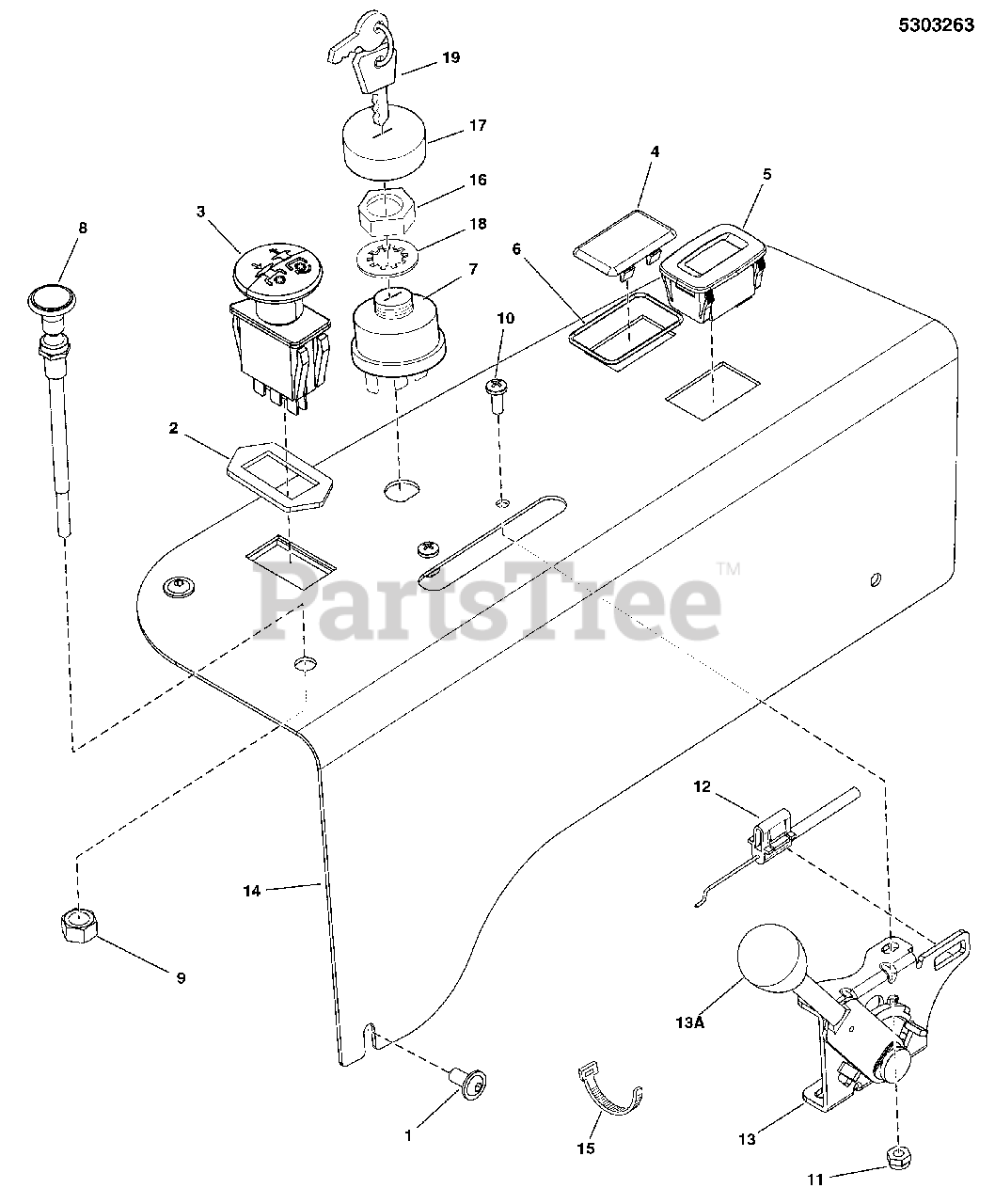

Instrument Control Panel Group (5303263) Parts Diagram

  • Title

1

Simplicity 5025299X4SM

SCREW, ALLEN HEAD 1/4-20 X .500 ZINC PHOS

$4.99

$

In Stock, only 2 left!

0

2

Simplicity 5022222SM

RING, SWITCH RETAINER, PTO

$4.49

$

In Stock, only 2 left!

0

3

Simplicity 5022180SM

SWITCH, Blade Engage
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

4

Simplicity 1709188SM

PLUG, Hole, Electric Lift (Hydro models only)

$4.99

$

In Stock, only 1 left!

0

5

Simplicity 5022269SM

O-RING, 7/8" ID X 1/16" W

$3.49

$

Usually ships in 2-12 days

0

6

HOUR METER, ASSEMBLE

Note: (* See Footnote)

$

$

Not available

7

Simplicity 1737853YP

SWITCH ASSEMBLY, Ignition Indak No Keys/Hdwr

$35.99

$

In Stock, Qty 20+

0

8

Simplicity 5047779SM

CABLE, CHOKE CONTROL, 51 (Z)

$52.99

$

In Stock, only 4 left!

0

9

Simplicity 5025309SM

NUT, 3/8-24 HEX JAM (SV)

$2.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025179X6SM

SCREW, #10-24 X 3/4", ROUND PHILLIPS

$3.99

$

Usually ships in 2-12 days

0

11

Simplicity 703412

NUT, Nylock, #10-24, GR2

Note: (5025271)

$4.49

$

In Stock, only 2 left!

0

12

Simplicity 5101073SM

CABLE, THROTTLE, 42"

$33.99

$

In Stock, only 2 left!

0

13

Simplicity 5101537SM

LEVER, THROTTLE CONTROL, HEAVY DUTY

$48.99

$

In Stock, only 1 left!

0

13A

Simplicity 5046360X1SM

THROTTLE CONTROL HANDLE/KNOB

Note: (SV)

$10.99

$

In Stock, only 1 left!

0

14

Simplicity 5410303AYP

PLATE, CONTROL PANEL, IS600Z - BLK

$68.99

$

Usually ships in 2-12 days

0

15

Simplicity 5021030SM

TIE, 6" Self-Locking

$2.99

$

In Stock, only 3 left!

0

16

Simplicity 1717549SM

NUT, Hex Flange, 5/8-32 IGN SW DIE CAST
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

17

Simplicity 1717550SM

COVER, Ignition Switch
(Superseded to 847150)

$8.49

$

In Stock, Qty 15

0

18

Simplicity 1960547SM

LOCKWASHER, Internal Tooth, 5/8 Thin

$4.49

$

In Stock, only 3 left!

0

19

Simplicity 1737836YP

KEYS, Ignition

$20.99

$

In Stock, only 1 left!

0
