5901141 (SB50) - Ferris 50" Snow Thrower 50" Snow Thrower - Drive Group Parts Diagram

50" Snow Thrower

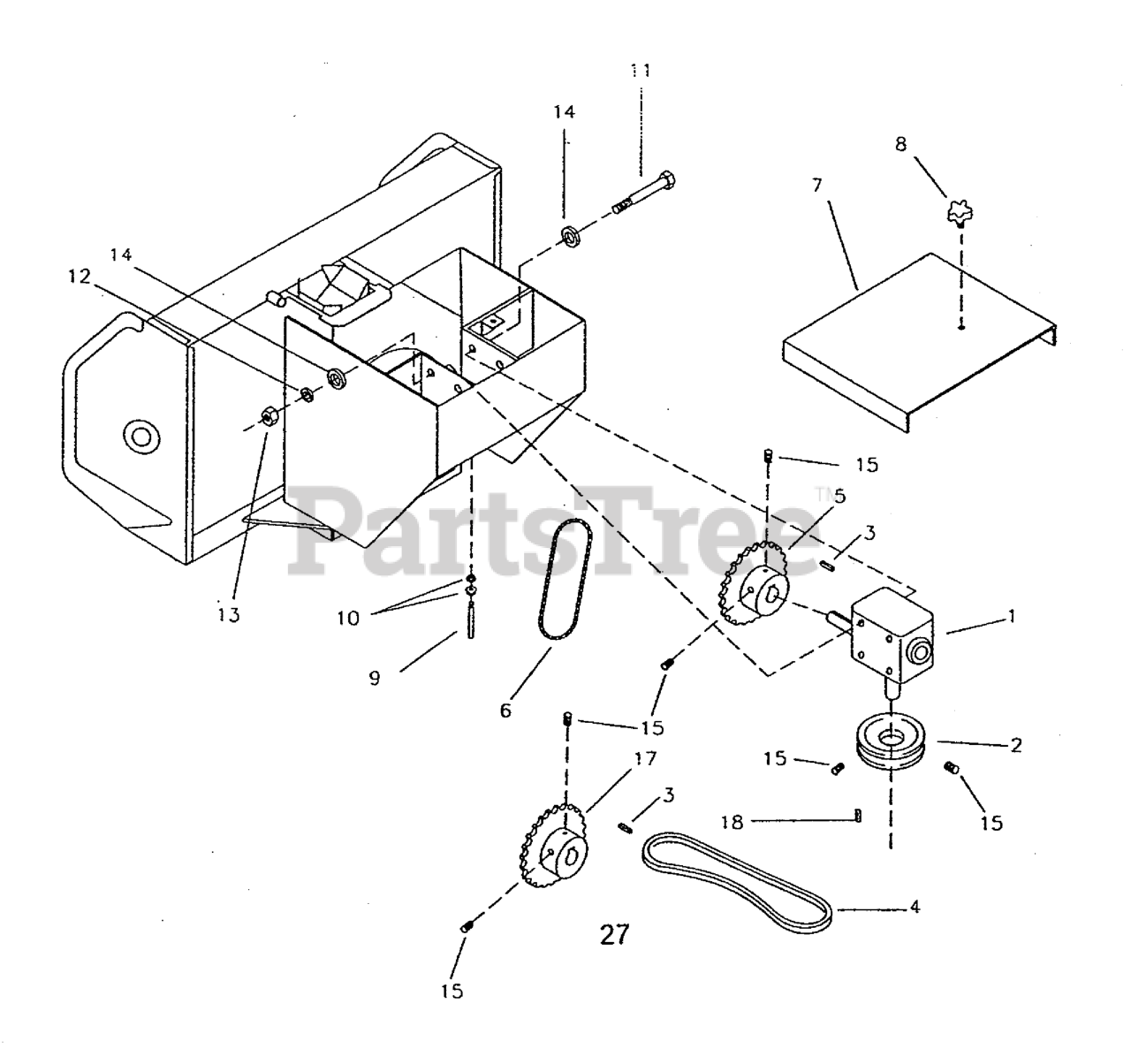

50" Snow Thrower - Drive Group Parts Diagram

  • Title

1

Ferris 662578

Gear Box

$

$

Currently unavailable

2

Ferris 5662990

Pulley MB 70

$101.99

$

Usually ships in 2-12 days

0

3

Ferris 5655379

Key 1/4" x 1/4" x 1"

$6.49

$

Usually ships in 2-12 days

0

4

Ferris 5022105

Belt (Dual Drive Models)

$43.99

$

Usually ships in 2-12 days

0

4

Ferris 5021390

Belt (Procut 20 Models)

$36.99

$

Usually ships in 2-12 days

0

4

Ferris 5022104

Belt (Procut 30 Models)

$

$

Currently unavailable

4

Ferris 5100923

Belt (Procut S Models)

$60.99

$

Usually ships in 2-12 days

0

5

Ferris 5657055

Sprocket 40B20

$43.99

$

Usually ships in 2-12 days

0

6

Ferris 5663301

Chain

$127.99

$

Usually ships in 2-12 days

0

7

Ferris 5662964

Cover

$105.99

$

Usually ships in 2-12 days

0

8

Ferris 5661832

Knob 5/16" NC

$11.99

$

Usually ships in 2-12 days

0

9

Belt Guide Hex Bolt 5/16" NC x 4"

Note: (Obtain Locally)

$

$

Not available

10

Flange Nut 5/16" NC

Note: (Obtain Locally)

$

$

Not available

11

Hex Bolt 3/8" NC x 5"

Note: (Obtain Locally)

$

$

Not available

12

Lockwasher 3/8"

Note: (Obtain Locally)

$

$

Not available

13

Hex Nut 3/8" NC

Note: (Obtain Locally)

$

$

Not available

14

Flat Washer 7/16"

Note: (Obtain Locally)

$

$

Not available

15

Allen Set Screw 5/16" x 5/16"

Note: (Obtain Locally)

$

$

Not available

16

Lockwasher 3/8" ext. Tooth

Note: (Obtain Locally)

$

$

Not available

17

Ferris 5657696

Sprocket 40B28

$151.99

$

Usually ships in 2-12 days

0

18

Ferris 654643

Key 1/4" x 1/4" x 1-1/4"

$

$

Currently unavailable
